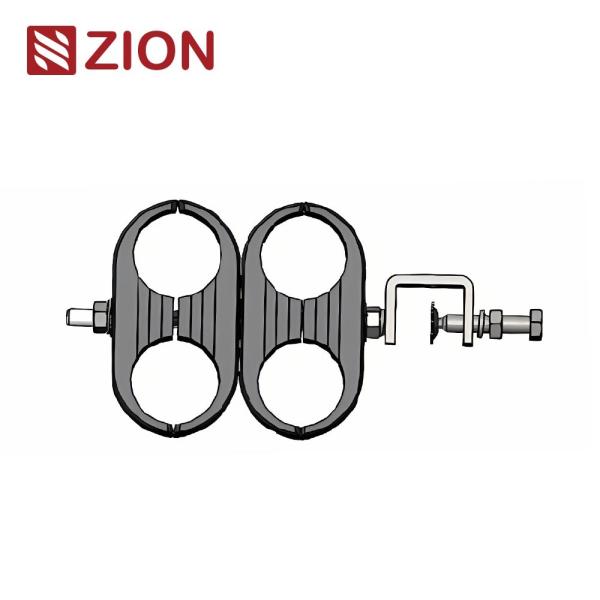

1-1/4 Flat Drop Cable Clamp 2 Way For FTTH
1-1/4 Flat Drop Cable Clamp 2 Way For FTTH
Specifications
Brand Name :
Zion communication OR OEM
Model Number :
FTTH stainless steel flat cable drop clamp
Certification :
CE, ROHS, VDE, UL
Place of Origin :
CHINA
MOQ :
500
Payment Terms :
T/T,L/C
Supply Ability :
500000pcs / Month
Delivery Time :
Normally 20 working days
Packaging Details :
Carton
Product Material :
Stainless steel 304
Metal Color :
Natural
Block Material :
PP
Block Color :
Black
Rubber Material :
EPDM
Rubber Color :
Black
Description

Feeder Cable Clamp, for 1-1/4" Cable, 4way

SKU: ZFRFCC0441

1-1/4

■ Features

Easy and quick installation

Robust design & material for outdoor use

Operation Temperature -40~85 ℃

Suitable for cable type 1-1/4 in

■ General Specifications

ZION'S SKU

ZFRFCC0441

Metal Material

Stainless steel 304

Metal Color

Natural

Block Material

PP

Block Color

Black

Rubber Material

EPDM

Rubber Color

Black

Mounting

M8 hardware

■ Dimensions

Height

44 mm | 1.73 in

Width

113 mm | 4.45 in

Length

225 mm | 8.86 in

Thread rod Length

150.0 mm | 5.90 in

Compatible Power cable OD

39-41 mm |1.54 in -1.61 in

Normal Size

1-1/4

■ Environmental Specifications

Operating temperature

-40°C ~ 85°C

UV Resistance

≥720 Hours,base on ISO 4892.3-1994

Environmental Strength Cpability

Double Cable Weight

■ Packing and weights

Height,Packed

205mm | 8.1 in

Width,Packed

325mm | 12.8 in

Length,Packed

495mm | 19.4 in

UOM

1PC

Packaging

Bag

Weight, gross

0.34 kg | 0.75 lb

■ Certifications and Compliance

ISO 9001:2015

Designed,manufactured and/or distributed under this quality management system

RoHS

Compliant

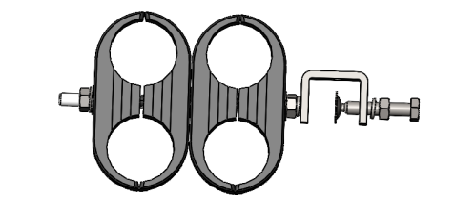

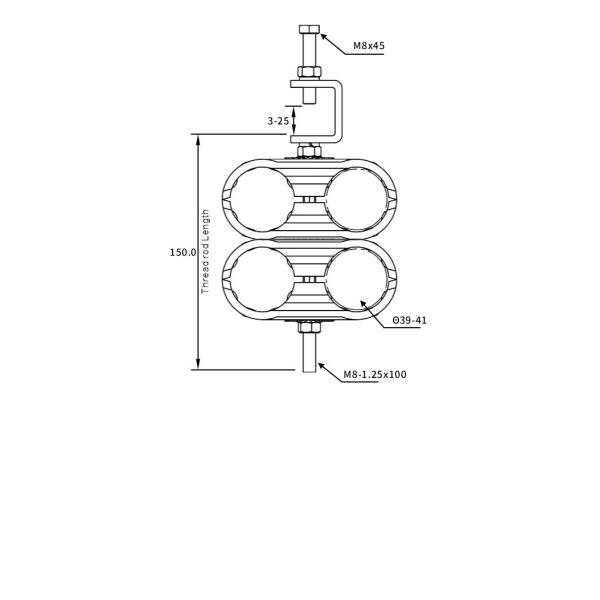

■ Structure Schematic Diagram

1-1/4
