Feeder Cable Adss Tension Clamp 4 Way For 2x(4.8–7)+2x(15–22)Mm Cables
Feeder Cable Adss Tension Clamp 4 Way For 2x(4.8–7)+2x(15–22)Mm Cables
Specifications
Brand Name :
Zion communication OR OEM
Model Number :
FTTH stainless steel flat cable drop clamp
Certification :
CE, ROHS, VDE, UL
Place of Origin :
CHINA
MOQ :
500
Payment Terms :
T/T,L/C
Supply Ability :
500000pcs / Month
Delivery Time :
Normally 20 working days
Packaging Details :
Carton
Product Material :
Stainless steel 304
Metal Color :
Natural
Block Material :
PP
Block Color :
Black
Rubber Material :
EPDM
Rubber Color :
Black
Description

Feeder Cable Clamp, for 2x(4.8-7)+2x(15-22)mm Cable, 4Way

SKU: ZFOPCCDM 2×7+2×22

Feeder Cable Adss Tension Clamp 4 Way For 2x(4.8–7)+2x(15–22)Mm Cables

■ Features

Easy and quick installation

Robust design & material for outdoor use

Operation Temperature -40~85 ℃

Suitable for cable type (4.8-7)+(15-22)mm

■ General Specifications

ZION'S SKU

ZFOPCCDM 2×7+2×22

Metal Material

Stainless steel 304

Metal Color

Natural

Block Material

PP

Block Color

Black

Rubber Material

EPDM

Rubber Color

Black

Mounting

M8 hardware

■ Dimensions

Height

36 mm | 1.42 in

Width

61 mm | 2.40 in

Length

195 mm | 7.68 in

Thread rod Length

120.0 mm | 4.72 in

Compatible Power cable OD

15-22 mm | 0.59-0.86 in

Compatible Optic Fiber cable OD

4.8-7 mm | 0.18-0.28 in

■ Environmental Specifications

Operating temperature

-40°C ~ 85°C

UV Resistance

≥720 Hours,base on ISO 4892.3-1994

Environmental Strength Cpability

Double Cable Weight

■ Packing and weights

Height,Packed

205mm | 8.1 in

Width,Packed

325mm | 12.8 in

Length,Packed

495mm | 19.4 in

UOM

1PC

Packaging

Bag

Weight, gross

0.24 kg | 0.53 lb

■ Certifications and Compliance

ISO 9001:2015

Designed,manufactured and/or distributed under this quality management system

RoHS

Compliant

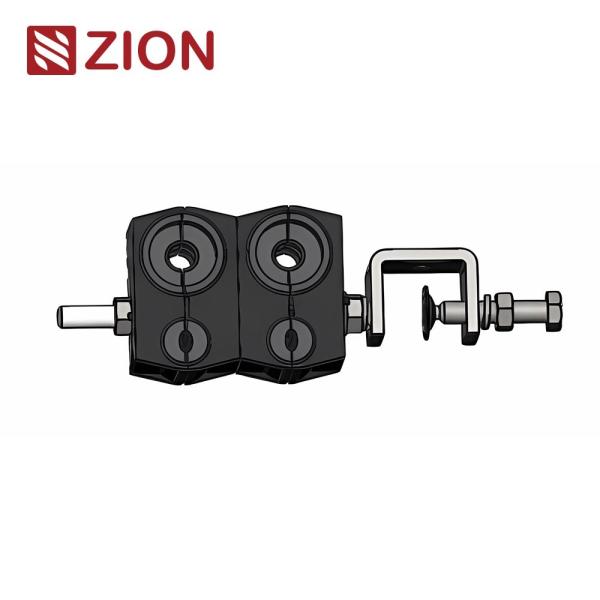

■ Structure Schematic Diagram

Feeder Cable Adss Tension Clamp 4 Way For 2x(4.8–7)+2x(15–22)Mm Cables
