Key Information & Construction Parameters:

SKU:

7170101

Class CPR

Eca

Standards:

EN50117-10-2
CEI-UNEL 36762
EN50575

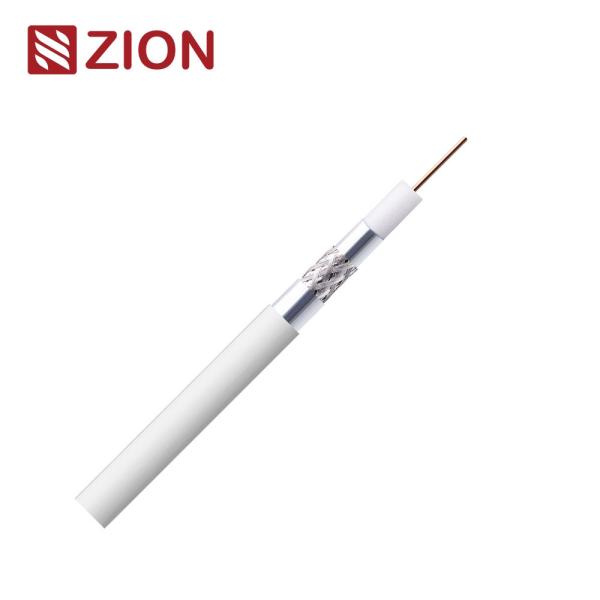

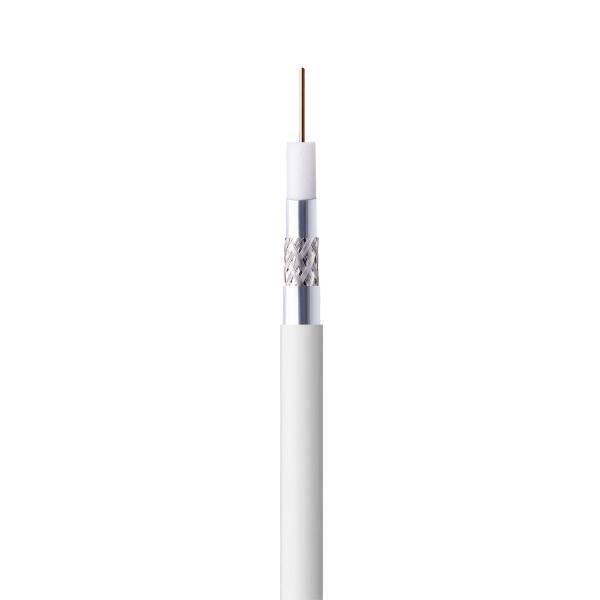

Inner Conductor Material

Plain Copper (Cu)

Inner Conductor Size

0.80 ± 0.02mm

Insulation Material

Foam Polyethylene(PEG)

Insulation Size

3.50 ± 0.10mm

Shield 1

Al/Pet/Al

Shield 2

Tinned Copper(CuSn) braiding wire

65% Coverage

Shield 3

Al/Pet

Jacket

Material: PVC

OD: 5.20 ± 0.10mm

Color: White/Black or customerzied

Application

DOCSIS 3.1 (Data Over Coax System)
CATV
4K-UHD
Indoor Installation

Electrical Characteristics & Physical Properties:

Characteristic impedance

200 MHz 75±3 Ohm

Capacitance (@1kHz)

52 ± 2 pF/m.Nom

Velocity Ratio

85% Nom.

Inner conductor resistance

35 Ω/km

Outer conductor resistance

13.50 Ω/km

Loop resistance

48.50 Ω/km

Sheat Insulation voltage

2.5 kV

Maximum current (Ieff)

4 A

Structural Return Loss(SRL)

5 - 470 MHz

>33 dB

470 - 1000 MHz

>27 dB

1000 - 2000 MHz

>25 dB

2000 - 3000 MHz

>23 dB

Screening Attenuation(SA)
SA-Class A++

30 - 1000 MHz

>110 dB

1000 - 2000 MHz

>95 dB

2000 - 3000 MHz

>90 dB

Transfer Impedance

5-30 MHz

＜ 2.5 mOhm/m

Min.Bending Radius

26/52 mm

Max. Cable Pulling Strength

90 N

Operating Temperature

-20 / +80 °C

Attenuation (at 20°C )

Frequency (MHZ)

Max Attenuation (dB/100m)

5

2.10

10

2.90

30

4.50

50

5.70

200

11.10

300

13.70

470

17.40

*The above data is for reference only, the actual order test report shall prevail.

Order Informations:

Marking

HANGZHOU ZION 7170101 75 OHM RG59T SA Class A++ Eca
EN50117-9-2 DDMMYY 001M-100M

Package

100M/Roll, 300M/WS (or Per customer's request)

Delivery time

Normally 25 days after received the deposit.

Brand

HELLOSIGNAL® OR OEM
