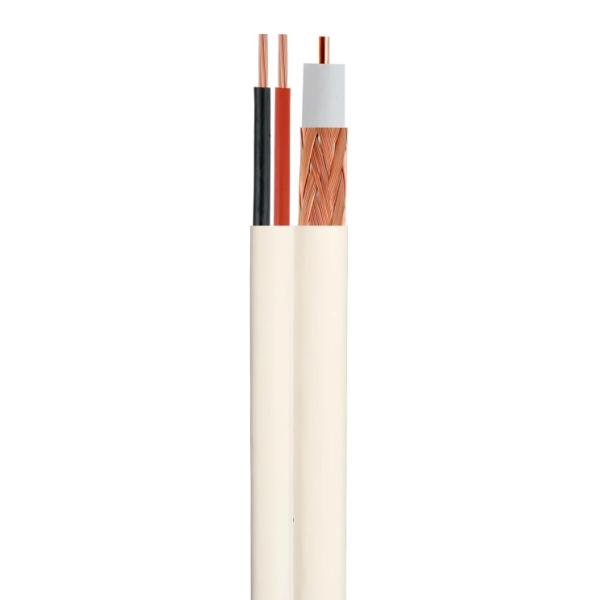

NO 7102028 RG59/U Coaxial Cable 95% CCA With Copper Clad Aluminum Braiding + 2C 18AWG CMP | UL E541136 Certified
NO 7102028 RG59/U Coaxial Cable 95% CCA With Copper Clad Aluminum Braiding + 2C 18AWG CMP | UL E541136 Certified
Specifications
Brand Name :
Zion communication OR OEM
Model Number :
RG59 2C
Certification :
CE, ROHS, VDE, UL
Place of Origin :
CHINA
MOQ :
500
Payment Terms :
T/T, L/C
Supply Ability :
500000pcs / Month
Delivery Time :
Normally 20 working days
Packaging Details :
Carton
Description
RG59/U+2/18AWG CMP UL Certificated
Key Information & Construction Parameters:
SKU: 7102028 NO 7102028 RG59/U Coaxial Cable 95% CCA With Copper Clad Aluminum Braiding + 2C 18AWG CMP | UL E541136 Certified
UL Certificate Number: E541136
Standards: UL 444 & CSA C22.2 No.214
Communications Cables
Component 1 RG59 Coaxial Cable
Inner Conductor Material Solid Bare Copper (BC)
Inner Conductor Size 0.032"/20AWG/0.813±0.008mm
Insulation Material Skin Foam FEP
Insulation Size 0.134±0.006"/3.40±0.15mm
Shield 1 Copper Clad Aluminum braiding wire
95% Coverage
Nom.Dia: 0.154±0.006” / 3.91±0.15mm
Jacket Material: Plenum PVC
Norminal Thickness: 0.018"(0.46mm)
OD: 0.197±0.008" (5.0±0.2mm)
Component 2 2C18AWG Power Cable
Inner Conductor Material Solid Bare Copper (BC)
Inner Conductor Size 7×0.0152"/18AWG/7×(0.386±0.004mm)
Dielectric Material Plenum PVC
Dielectric Size 0.060"/1.52±0.10mm
Jacket Material: Plenum PVC
Norminal Thickness: 0.015"(0.38mm)
OD: 0.150±0.008" (3.8±0.2mm)
Application Audio/Video
CCTV
Cross Section:

NO 7102028 RG59/U Coaxial Cable 95% CCA With Copper Clad Aluminum Braiding + 2C 18AWG CMP | UL E541136 Certified
Electrical Characteristics & Physical Properties:
COAX Conductor Resistance 34.4 Ω/km | 10.5 Ω/1000 ft.
POWER Conductor Resistance 21.7 Ω/km | 6.6 Ω/1000 ft.
Capacitance 52.5 pF/m.Nom | 16 pF/ft.Nom
Impedance 75 ± 3 Ω
Return loss 20dB (1 -300MHz) 100% Swept Tested
Velocity of Propagation 84% Nom.
Sparker Test (VAC) 2500 V
Operating Temp Range -20 to 75 ℃ (-4 to 167℉)
RoHS Compliant
Attenuation(20℃):
Frequency (MHZ) Max Attenuation(dB/100ft) Max Attenuation (dB/100m)
1 0.30 0.98
10 0.97 3.18
50 2.40 7.87
100 3.40 11.15
200 4.85 15.90
400 7.00 22.95
700 9.50 31.15
900 11.10 36.39
1000 12.00 39.34
*The above data is for reference only, the actual order test report shall prevail.
Order Informations:
Marking HANGZHOU ZION 7102028 RG59/U 20AWG/1C+18AWG 2/C
E541136(UL)C(UL)CMP 75C RoHS COMPLIANT ×××××FT
Package 1000FT/Pull Box or Wooden Spool (or Per customer's request)
Delivery time Normally 25 days after received the deposit.
Brand HELLOSIGNAL® OR OEM
Online Service:
Wechat +86 15088607575
Whatsapp +86 15088607575
Email info@zion-communication.com
OEM Customized Service:
Color We can customized Jacket Color based on RAL Classic
Printing We can customized printing words on jacket
Packing & Label We can customized spool, carton & label design.
