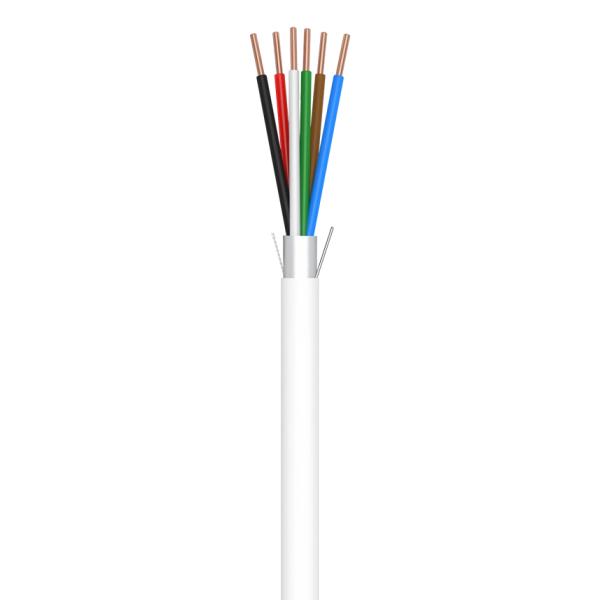

NO.P7110344 18AWG 6C STR Shielded Plenum Cable - Premium Shielded Wiring with Six Conductors
NO.P7110344 18AWG 6C STR Shielded Plenum Cable - Premium Shielded Wiring with Six Conductors
Specifications
Brand Name :
Zion communication OR OEM
Model Number :
Plenum
Certification :
CE, ROHS, VDE, UL
Place of Origin :
CHINA
MOQ :
500
Payment Terms :
T/T, L/C
Supply Ability :
500000pcs / Month
Delivery Time :
Normally 20 working days
Packaging Details :
Carton
Description

18AWG 6C STR Shielded Plenum

Key Information & Construction

SKU:

P7110344


NO.P7110344 18AWG 6C STR Shielded Plenum Cable - Premium Shielded Wiring with Six Conductors

UL Certificate Number:

E541136 - CMP

E541137 - CL2P & CL3P

CMP Standards:

UL 444 & CSA C22.2 No.214
Communications Cables

CL2P/CL3P Standards:

UL 13 Power-Limited Circuit Cables

Total Number Conductors

6

Conductor Material:

Stranded Bare Copper

Conductor Size:

18AWG/ 7×0.0152" / 7×0.386mm

Dielectric Material:

Plenum PVC - Low Smoke

Dielectric Size:

0.060±0.004''nom.(1.52±0.10mm)

Dielectric Colors:

1.Blk 2.Red 3.White 4.Green

Drain Wire:

24 AWG 7/32 Stranded Tinned Copper

Shielded:

Aluminum Mylar

Rip Cord:

Yes

Out Jacket:

Material: Plenum PVC - Low Smoke

Wall Thickness: 0.0150". Nom(0.38mm)

OD:0.219"±0.006“ (5.56±0.15mm)

Electrical & Physical Characteristics

DC Resistance

6.92 Ω/KFT | 22.7 Ω/KM

Rated Voltage(V RMS)

300V

Operating Temperature

- 20 to 75 ℃ (- 4 to 167℉)

Order Informations

Marking

HANGZHOU ZION 18AWG 6C STR SHIELDED E541137 CL3P(UL)
OR E541136 CMP(UL)C(UL) MM/DD/YY RoHS COMPLIANT ***FT

Color

We can customized Jacket Color based on RAL Classic

Printing

We can customized printing words on jacket

Packing & Label

We can customized spool, carton & label design.

Suitable Application

Description

Security System | Sound/Audio System | Intercom System
Power-Limited Controls System
