Top Quality LUT Red Stranded Bare Copper Cable Unmatched Performance
Top Quality LUT Red Stranded Bare Copper Cable Unmatched Performance
Specifications
Brand Name :
Zion communication OR OEM
Model Number :
Plenum
Certification :
CE, ROHS, VDE, UL
Place of Origin :
CHINA
MOQ :
500
Payment Terms :
T/T, L/C
Supply Ability :
500000pcs / Month
Delivery Time :
Normally 20 working days
Packaging Details :
Carton
Conductor Material :
Stranded Bare Copper
Dielectric Size :
0.087±0.004''nom.(2.20±0.10mm)
Dielectric Colors :
1.Red 2.Black
Description

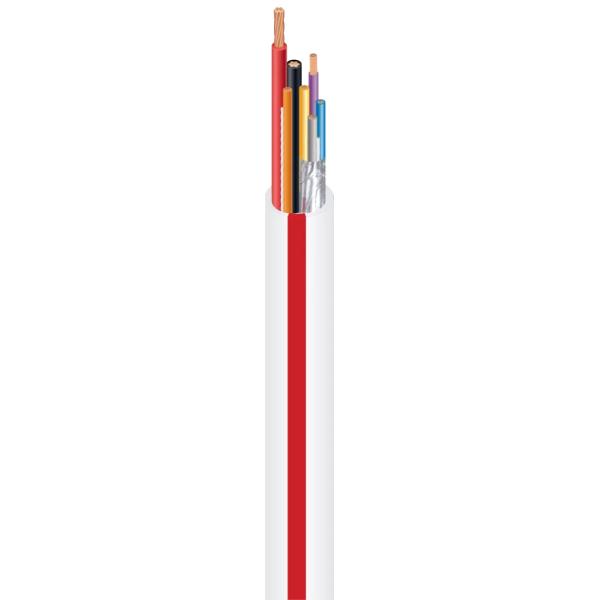

LUT Red Cable Plenum
Key Information & Construction
SKU: 7111704
Top Quality LUT Red Stranded Bare Copper Cable Unmatched Performance

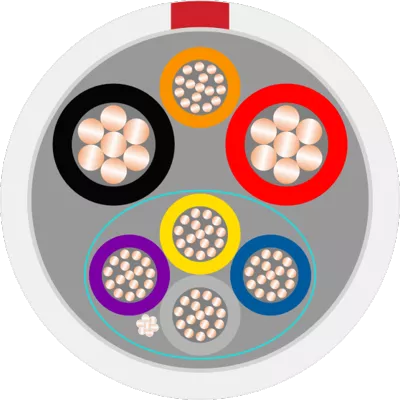

Assembly: 18/4C SH+16/2C+18G (Red Stripe)
UL Certificate Number: E541136 - CMP
E541137 - CL2P & CL3P
Element 1 (Data) 18AWG 4Cores Shielded
Conductor Material: Stranded Bare Copper
Conductor Size: 18AWG/16×0.001"/16×0.254mm
Dielectric Material: Foam FEP
Dielectric Size: 0.075±0.004''nom.(1.90±0.10mm)
Dielectric Colors: 1.Violet 2.Yellow 3.Gray 4.Blue
Drain Wire: 24AWG/7×0.2mm Stranded Tinned Copper
Shield: Aluminum Malar Foil-100% Coverage
Element 2 (Power/Control) 16AWG 2Cores Unshielded
Conductor Material: Stranded Bare Copper
Conductor Size: 16AWG/7×0.201"/7×0.511mm
Dielectric Material: Plenum PVC-Low Smoke
Dielectric Size: 0.087±0.004''nom.(2.20±0.10mm)
Dielectric Colors: 1.Red 2.Black
Element 3 (Control) 18AWG 1Core Unshielded
Conductor Material: Stranded Bare Copper
Conductor Size: 18AWG/16×0.001"/16×0.254mm
Dielectric Material: Plenum PVC-Low Smoke
Dielectric Size: 0.061±0.004''nom.(1.56±0.10mm)
Dielectric Color: Orange/Green Stripe
Top Quality LUT Red Stranded Bare Copper Cable Unmatched Performance
Rip Cord Yes
Out Jacket: Material: Plenum PVC - Low Smoke
Color: White(Or Light Blue)/Red stripe
Wall Thickness: 0.030". Nom(0.75mm)
OD:0.341"±0.006“ (8.65±0.15mm)
Electrical & Physical Characteristics
DC Resistance 18AWG: 6.92Ω/KFT 16AWG:4.35Ω/KFT
Capacitance 18AWG:39.5pF/FT
Impedance 18AWG: 44 Ω
Rated Voltage(V RMS) 300V
Operating Temperature - 20 to 75 ℃ (- 4 to 167℉)
Marking ZION LUT Red 18AWG/4C SH+16AWG/2C+18G E541137 CL3P(UL)
or E541136 CMP(UL)C(UL) MM/DD/YY RoHS COMPLIANT ***FT
