Specifications
Brand Name :
Zion communication OR OEM
Model Number :
Data Center Equipment
Certification :
ISO, CE, RoHS, UL
Place of Origin :
CHINA
MOQ :
1,000 PCS
Payment Terms :
T/T,L/C
Supply Ability :
30,000 PCS / Month
Delivery Time :
Normally 10 workingdays
Packaging Details :
1 PC/Plastic Bag, PCS/Carton
Model :
Wall Mount Rack Cabinet
Bnad :
Zion Communication
Cord :
ZCSE
Color :
Black,Grey
Loading Capacity :
60kg
Description

More detail please visit:

https://www.zion-communication.com/Copper-System-Equipment.html

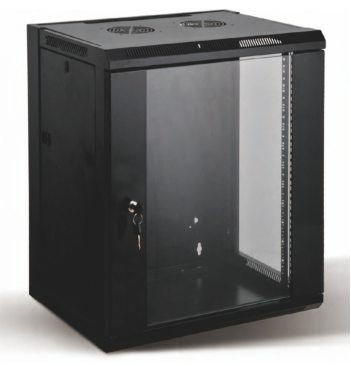

SE Wall Box
Technical Data
Materials: SE Wall Mount Rack Cabinet , Date Center Accessories , Manufacturer from China - Zion Communiation
· SPCC Cold Rolled Steel; · others: 1.2mm.
· Thickness: Mounting profile: 1.2/1 .5mm;
Colour:
· ZCSE.■■■■ ■■0■■: RAL7035
· ZCSE.■■■■ ■■1■■: RAL9004
Loading Capacity:
· Static loading: 60KG.
COMPLIANCE (Reference Standard)
· Comply with ANSI/EIA RS-310-D
· IEC60297-2
· DIN41494;PART1; DIN41494;PART7.		 SE Wall Mount Rack Cabinet , Date Center Accessories , Manufacturer from China - Zion Communiation
Feature
SE Wall Mount Rack Cabinet , Date Center Accessories , Manufacturer from China - Zion Communiation

· Flat packing and patent frame, packing time is less than 5

minutes, around 1/3~ 1/4 assembled original volume

when flat pack.

· Cable entry on both of top cover and bottom panel.

· Steel front door, opening direction of door can be changed,

turning angle of front door is over 180 degrees.

· Different optional style of doors

· Wall mounted panel, convenience for installation, locked

from inside with screw, avoiding to be stolen or

accidentally dropped.

· Flat side panel, easy installation.

· Installation depth of mounting profile can be available

changed.

· 19"standard installation.
May Installs The Fitting

SE Wall Mount Rack Cabinet , Date Center Accessories , Manufacturer from China - Zion Communiation

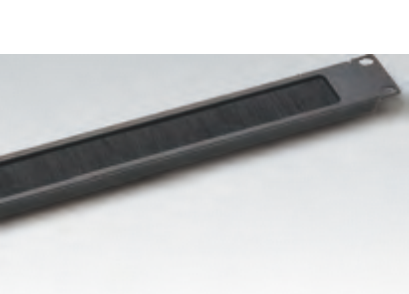

· Threading hole with brush

SE Wall Mount Rack Cabinet , Date Center Accessories , Manufacturer from China - Zion Communiation

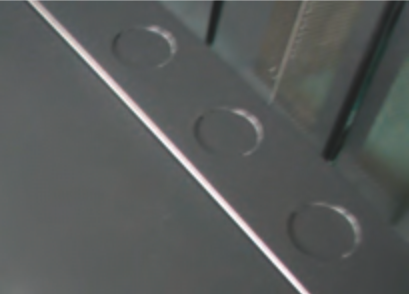

· Circular threading hole (Ø50MM)

SE Wall Mount Rack Cabinet , Date Center Accessories , Manufacturer from China - Zion Communiation

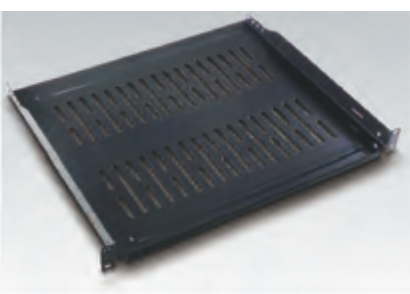

· Cantilever shelf

SE Wall Mount Rack Cabinet , Date Center Accessories , Manufacturer from China - Zion Communiation

· Cable management

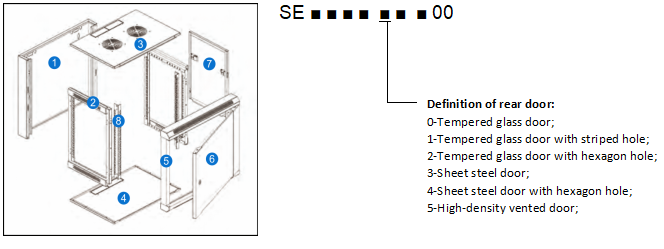

Definition Of Cord

SE Wall Mount Rack Cabinet , Date Center Accessories , Manufacturer from China - Zion Communiation
Main Part
S/N Specification Qty Material Surface Finish Remark
1 Back frame 1 SPCC t1.0 Powder coated ·····
2 Side frame 2 SPCC t1.0 Powder coated ·····
3 Top cover 1 SPCC t2.0 Powder coated ·····
4 Bottom 1 SPCC t1.0 Powder coated ·····
5 Front frame 1 SPCC t1.0 Powder coated See next page
6 Front door 1 5MM toughed glass
door/SPCC t1.2		 Powder coated Available on request
7 Side panel 2 ····· Powder coated ·····
8 19"rails 2 SPCC t1.0 Powder coated <15U Thinkness : 1.2mm
>= 15U Thinkness:1.5mm
A M6 screw & nuts 10 Steel Color zinc 20pcs for over 12U
B Trox tooling 1 Steel Black ·····
Specification:
Part Number. RU Width
(mm)		 Depth(D)
(mm)		 Height(H)(mm) Volume
(CBM)		 20GP
(PCS)		 40GP
(PCS)		 CKD
packing part
ZCSE.5406.SESC 6 570 450 370 0.04317 672 1297 1
ZCSE.5606.SESC 600 0.05353 542 1046 2
ZCSE.5409.SESC 9 570 450 500 0.05117 567 1094 1
ZCSE.5609.SESC 600 0.05757 504 973 1
ZCSE.5412.SESC 12 570 450 635 0.06397 453 875 1
ZCSE.5612.SESC 600 0.06397 453 875 1
ZCSE.5415.SESC 15 570 450 770 0.0768 378 729 1
ZCSE.5615.SESC 600 0.0768 378 729 1
ZCSE.5418.SESC 18 570 450 900 0.0896 324 625 1
ZCSE.5618.SESC 600 0.0896 324 625 1
ZCSE.5422.SESC 22 570 450 1080 0.1067 272 525 1
ZCSE.5622.SESC 600 0.1067 272 525 1
ZCSE.5427.SESC 27 570 450 1305 0.1280 227 438 1
ZCSE.5627.SESC 600 0.1280 227 438 1
Suggestion: For overload reason, we don't suggest SE wall mount cabinet to be fully loaded on 40HQ container.

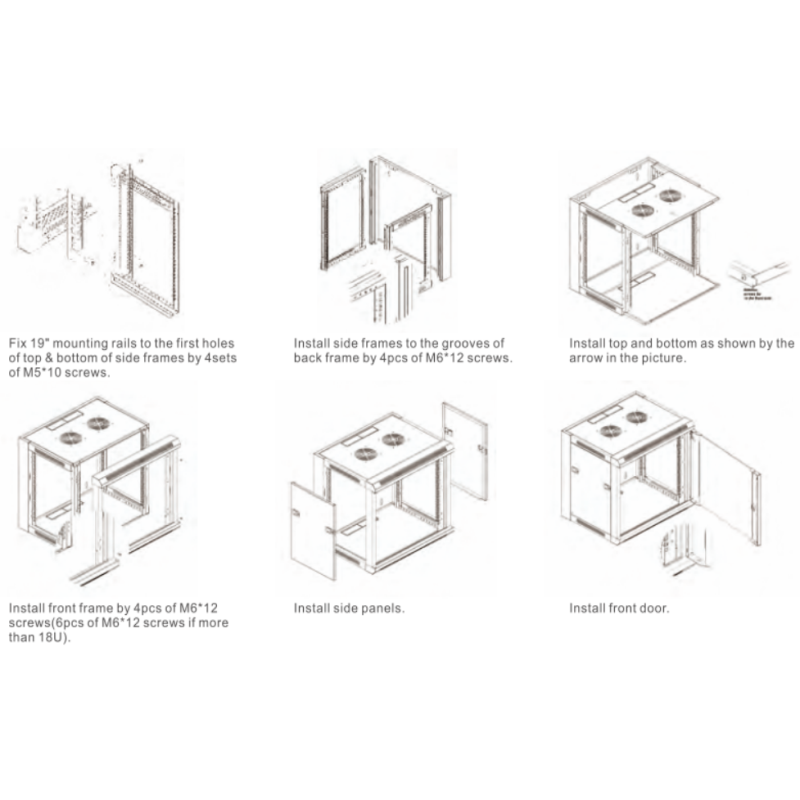

Assembling Draft
SE Wall Mount Rack Cabinet , Date Center Accessories , Manufacturer from China - Zion Communiation
