Specifications
Brand Name :
Zion communication OR OEM
Model Number :
Data Center Equipment
Certification :
ISO, CE, RoHS, UL
Place of Origin :
CHINA
MOQ :
1,000 PCS
Payment Terms :
T/T,L/C
Supply Ability :
30,000 PCS / Month
Delivery Time :
Normally 10 workingdays
Packaging Details :
1 PC/Plastic Bag, PCS/Carton
Model :
Server Rack Cabinet
Bnad :
Zion Communication
Cord :
ZCIDC-06
Capacity :
18U,22U,27U,32U,37U, 42U,47U
Depth :
800mm, 900mm and 1000mm
Description

More detail please visit:

https://www.zion-communication.com/Copper-System-Equipment.html

ZCIDC-06 Server Cabinet

Technical Data Server Rack Cabinet with 800KG Static Loading Capacity 65% Ventilation Rate and SPCC Cold Rolled Steel for Data Centers
Materials:
· SPCC high quality cold rolled steel
· Surface process: degreasing; phosphating; spray paint
· Thickness: Mounting profile 2.0mm; Others 1.2-1.5mm
Colour:
· RAL9004 (black); others could be required
Standard
·Compliant with ANSI/EIA; RS-210-D; IEC297-2;
DIN41491;PART1; DIN41494;PAR7;
GB/T2047.2-92; ETSI
Features
· Strong structure with static loading capacity: 800KG
· Adjustable support with load-bearing well caster ensuresthat the cabinet can be moved and fixed easily.
· High-density arc mesh front door and flat mesh back door have a ventilation rate of 65%, benefit for heat
dissipation problem of other parts of the cabinet.
· Excellent and elegant exterior door hinge With 180 degrees, which makes the door can be opened 180
degrees in parallel when it's connected, easy to assemble and operate.
· Cables enter from the top or the bottom, all of the tray for front, rear and side panel could be taken out.
· Full range of optional accessories with trustworthy quality.
· Height: 18U,22U,27U,32U,37U, 42U,47U
· Depth: 800mm, 900mm and 1000mm.
· Flexible packaging ensures cabinet’s storage and delivery.
Mian Install the Fitting
Server Rack Cabinet with 800KG Static Loading Capacity 65% Ventilation Rate and SPCC Cold Rolled Steel for Data Centers Server Rack Cabinet with 800KG Static Loading Capacity 65% Ventilation Rate and SPCC Cold Rolled Steel for Data Centers Server Rack Cabinet with 800KG Static Loading Capacity 65% Ventilation Rate and SPCC Cold Rolled Steel for Data Centers

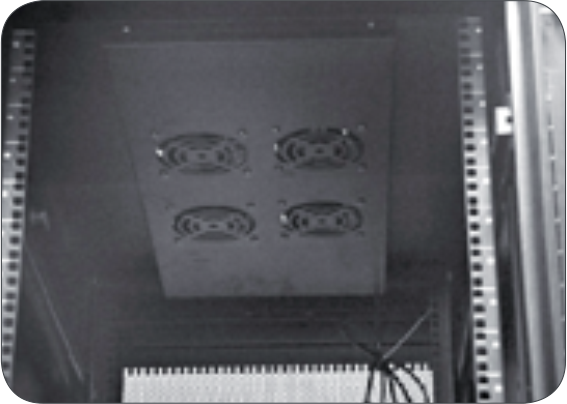

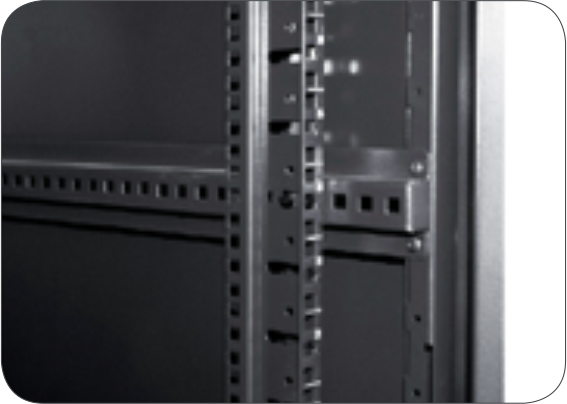

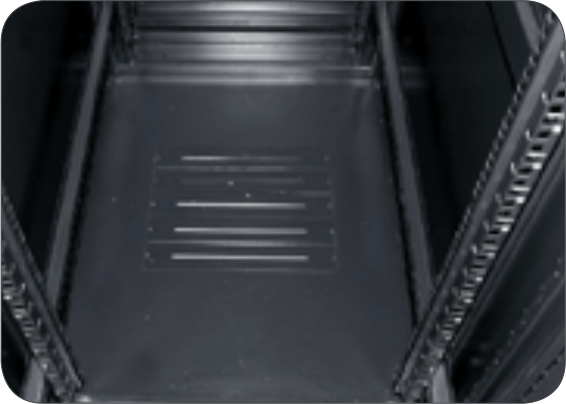

Top cover Mounting profile Bottom panel
Main Part
Server Rack Cabinet with 800KG Static Loading Capacity 65% Ventilation Rate and SPCC Cold Rolled Steel for Data Centers
NO. ITEM QTY SPCCT
(mm)

Server Rack Cabinet with 800KG Static Loading Capacity 65% Ventilation Rate and SPCC Cold Rolled Steel for Data Centers
1 Frame 2PCS 2.0
2 Mounting angle 6PCS 1.5
3 Mounting profile 4PCS 2.0
4 Top cover 1PCS 1.2
5 Fan tray 1PCS 1.2
6 Fan tray cover 1PCS 1.2
7 Cable entrance cover 4PCS 1.2
8 Supporting tray 4PCS 2.0
9 Hinge 6PCS /
10 Caster 4PCS /
11 Side panel 4SET 1.2
12 Glass door 1PCS 1.2
13 T-type glass door 1PCS Optional 1.2
14 T-type mess door 1PCS Optional
15 Curved mesh door 1PCS Optional
16 Glass mesh door 1PCS Optional
17 Steel door 1PCS Optional
18 Folio mesh door 1PCS Optional
19 Flat mesh door 1PCS Optional

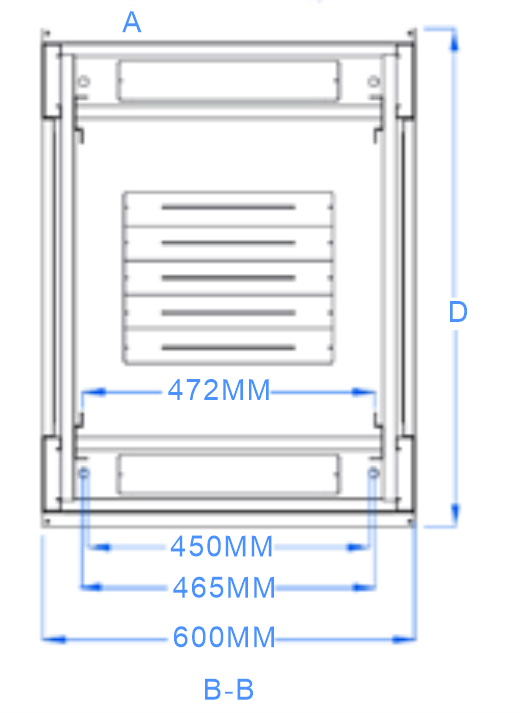

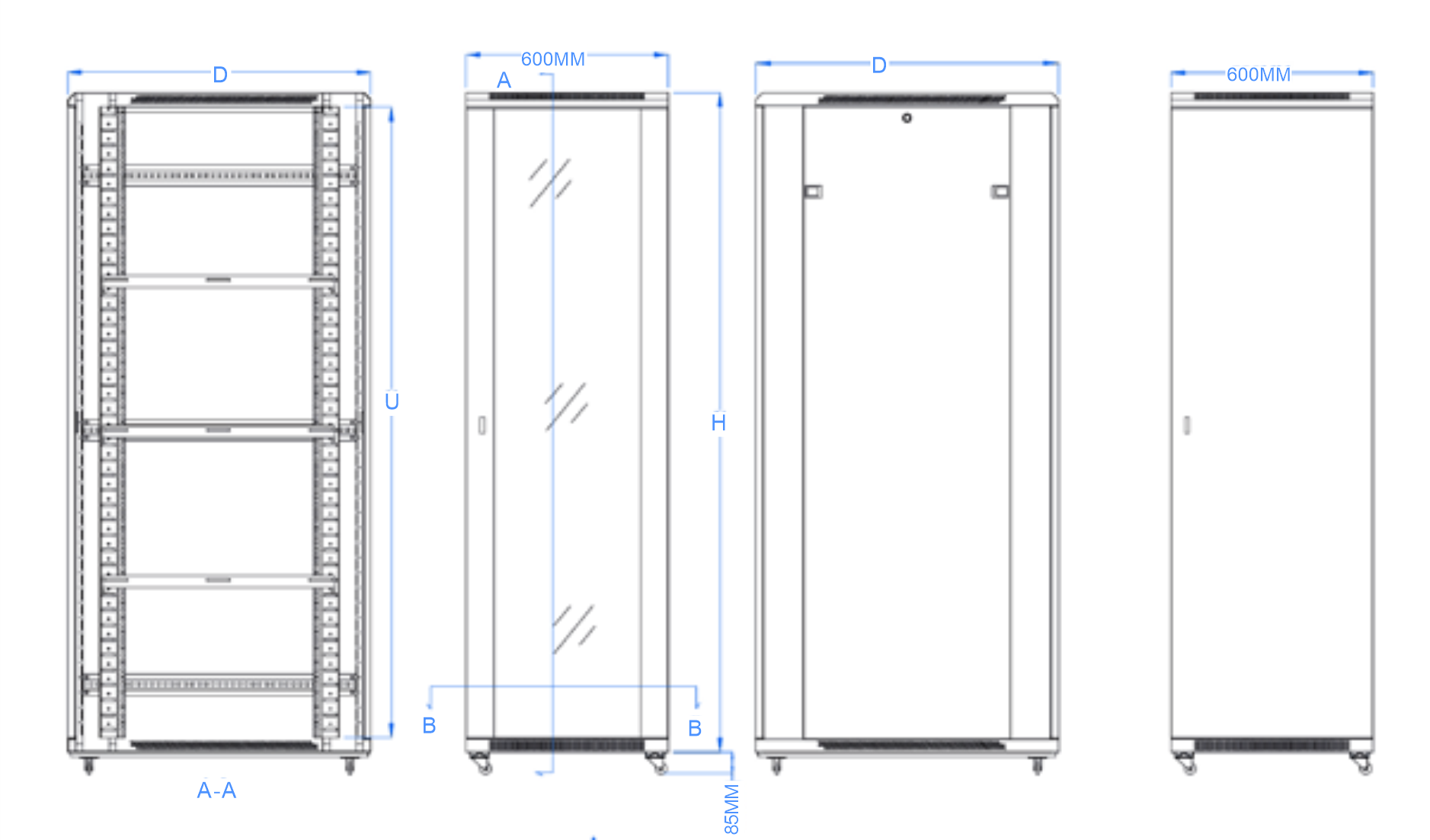

Ordering Information
Model Width
(mm)		 Depth(D) (mm) Height
(mm)		 U
ZCIDC.6818-6 SHSC 600 800 900 18U
ZCIDC.6918-6 SHSC 900
ZCIDC.6018-6 SHSC 1000
ZCIDC.6822-6 SHSC 600 800 1080 22
ZCIDC.6922-6 SHSC 900
ZCIDC.6022-6 SHSC 1000
ZCIDC.6827-6 SHSC 600 800 1300 27
ZCIDC.6927-6 SHSC 900
ZCIDC.6027-6 SHSC 1000
ZCIDC.6832-6 SHSC 600 800 1525 32
ZCIDC.6932-6 SHSC 900
ZCIDC.6032-6 SHSC 1000
ZCIDC.6837-6 SHSC 600 800 1745 37
ZCIDC.6937-6 SHSC 900
ZCIDC.6037-6 SHSC 1000
ZCIDC.6842-6 SHSC 600 800 1965 42
ZCIDC.6942-6 SHSC 900
ZCIDC.6042-6 SHSC 1000
ZCIDC.6847-6 SHSC 600 800 2190 47
ZCIDC.6947-6 SHSC 900
ZCIDC.6047-6 SHSC 1000
Remark: Information in the sheet refers to the height of cabinet without castor
