VE Server Rack Cabinet with 1300kg Loading Capacity 24/42U Capacity and SPCC Cold Rolled Steel Construction
VE Server Rack Cabinet with 1300kg Loading Capacity 24/42U Capacity and SPCC Cold Rolled Steel Construction
VE Server Rack Cabinet with 1300kg Loading Capacity 24/42U Capacity and SPCC Cold Rolled Steel Construction
VE Server Rack Cabinet with 1300kg Loading Capacity 24/42U Capacity and SPCC Cold Rolled Steel Construction
Specifications
Brand Name :
Zion communication OR OEM
Model Number :
Data Center Equipment
Certification :
ISO, CE, RoHS, UL
Place of Origin :
CHINA
MOQ :
1,000 PCS
Payment Terms :
T/T,L/C
Supply Ability :
30,000 PCS / Month
Delivery Time :
Normally 10 workingdays
Packaging Details :
1 PC/Plastic Bag, PCS/Carton
Model :
Server Rack Cabinet
Bnad :
Zion Communication
Cord :
ZCIDC-04
Capacity :
24/42U
Maximum loading capacity :
1300kg
Description

More detail please visit:

https://www.zion-communication.com/Copper-System-Equipment.html

VE Cabinets
Technical Data
Materials: VE Server Rack Cabinet with 1300kg Loading Capacity 24/42U Capacity and SPCC Cold Rolled Steel Construction
· SPCC Cold Rolled Steel; · 19" rails: 2.0mm;
· Casters tray:2.0mm; · others:1.2mm.
Colour:
· ZCVE■■■I1■■0■■:RAL7035 · ZCVE■I■■m 1■ ■:RAL7021.
Loading Capacity:
· Static loading:1300KG.
COMPLIANCE (Reference Standard)
· Comply with ANSI/EIA RS-310-D
· IEC60297-2
· DIN41494;PART1; DIN41494;PART7.
Feature

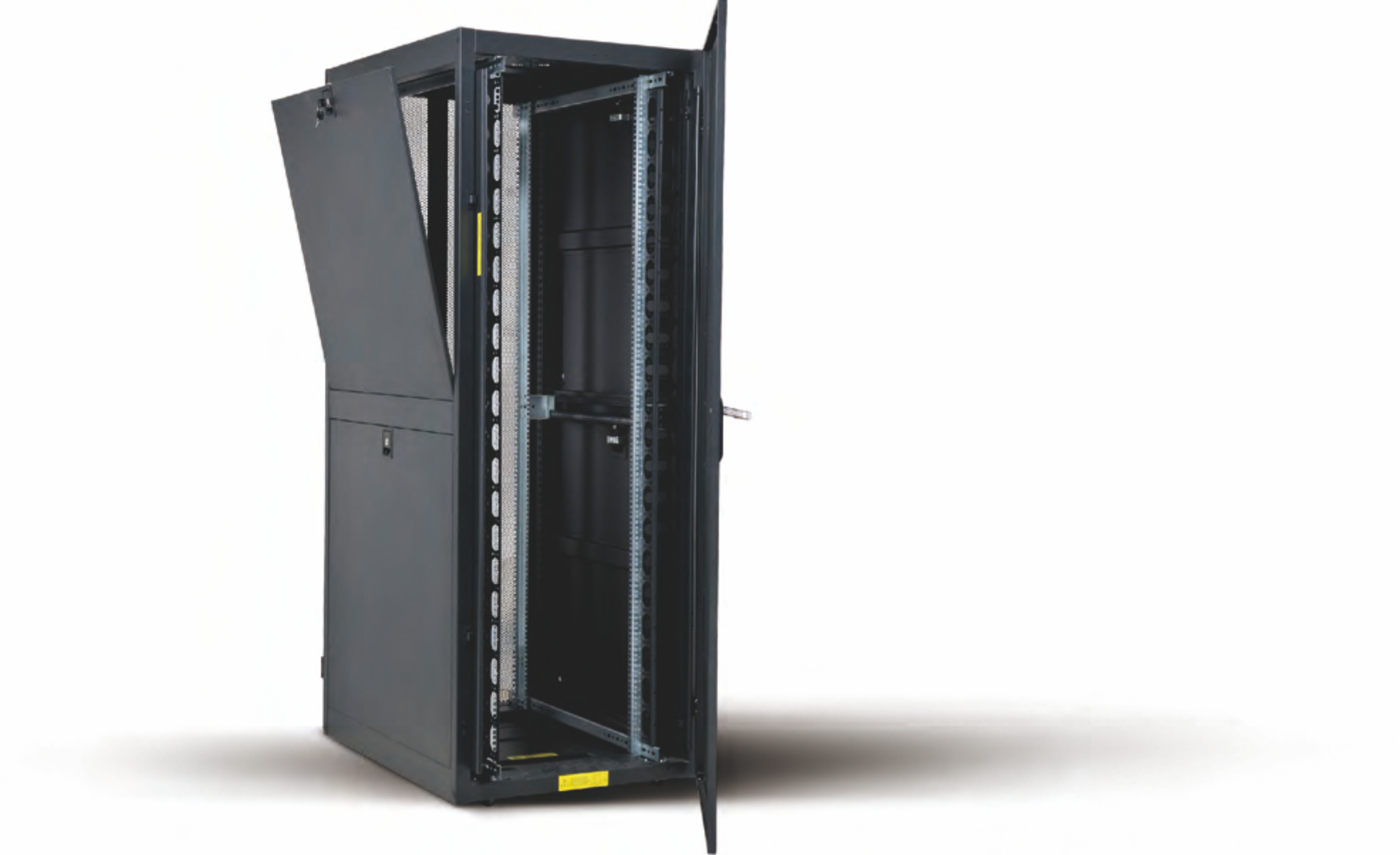

VE Server Rack Cabinet with 1300kg Loading Capacity 24/42U Capacity and SPCC Cold Rolled Steel Construction

· Packaging : VE cabinets could be shipped in disassembled packing, saving transportation and storage cost.

· New appearance design : Side door: split into 2 parts, lockable with square locks. Front and rear door: pluggable front door and rear doors, with external hinges.

· Casters : built-in installation design.

· Frame : duplex profile frames with patent, could be connected by 8 pieces of screws.

· Front and rear doors : "two points" locking design making doors and frames closed tighter, turning angle up to 180 degrees.

· Cable entries on top and bottom : sliding and adjustable cable entries on top and bottom, edges of cable entries are with the design to prevent wires from scratching.

· Fan unit : installed from top outside of cabinet, easy to install and maintain.

· Mounting rails : installation positions of mounting rails could be adjusted quickly. Dedicated channel alignmen reserved in internal of cabinets.

· Cabinet structure : patented structure.

· Maximum loading capacity : 1300kg.

VE Server Rack Cabinet with 1300kg Loading Capacity 24/42U Capacity and SPCC Cold Rolled Steel Construction

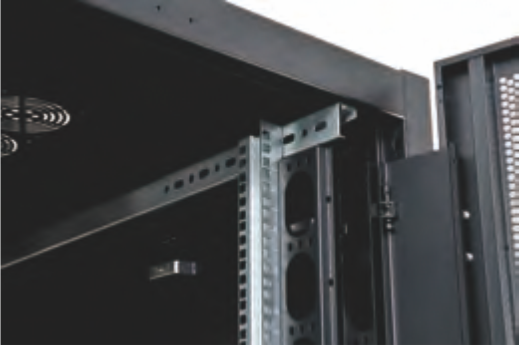

· 19" mounting angle with sacle enables users to precisely locate profile.

VE Server Rack Cabinet with 1300kg Loading Capacity 24/42U Capacity and SPCC Cold Rolled Steel Construction

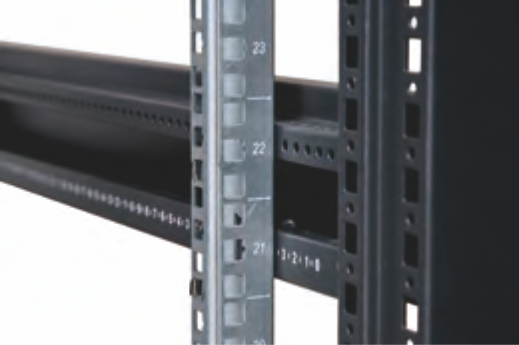

· 19" zinc coated profile with scale.

VE Server Rack Cabinet with 1300kg Loading Capacity 24/42U Capacity and SPCC Cold Rolled Steel Construction

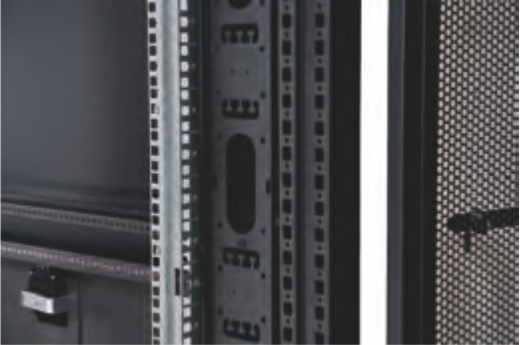

· Multi-function cable manger is
available in the rear.

VE Server Rack Cabinet with 1300kg Loading Capacity 24/42U Capacity and SPCC Cold Rolled Steel Construction

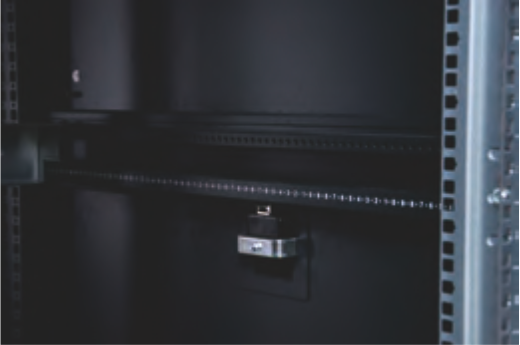

· Safty Warning label.

VE Server Rack Cabinet with 1300kg Loading Capacity 24/42U Capacity and SPCC Cold Rolled Steel Construction

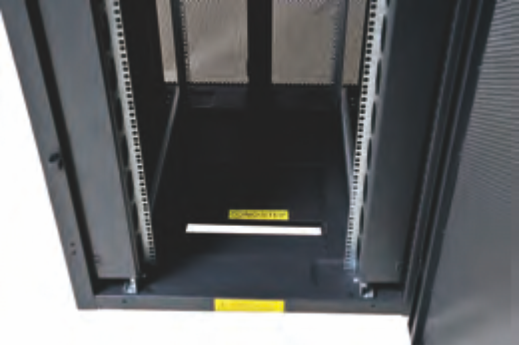

· Cable Entrence in the bottom is ajustable.

VE Server Rack Cabinet with 1300kg Loading Capacity 24/42U Capacity and SPCC Cold Rolled Steel Construction

· Cable manager with cover is available for 800mm width cabinet

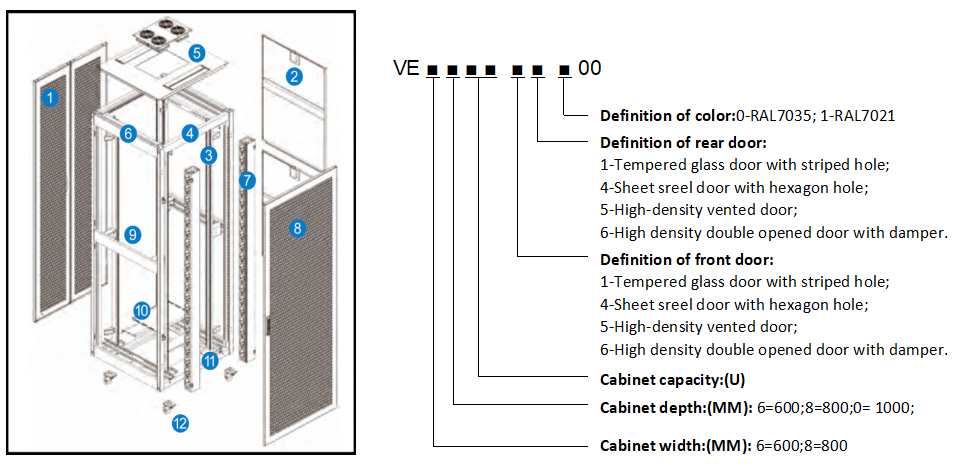

Ordering Information
VE Server Rack Cabinet with 1300kg Loading Capacity 24/42U Capacity and SPCC Cold Rolled Steel Construction
Main Part
S/N Specification Qty Material Surface Finish Remark

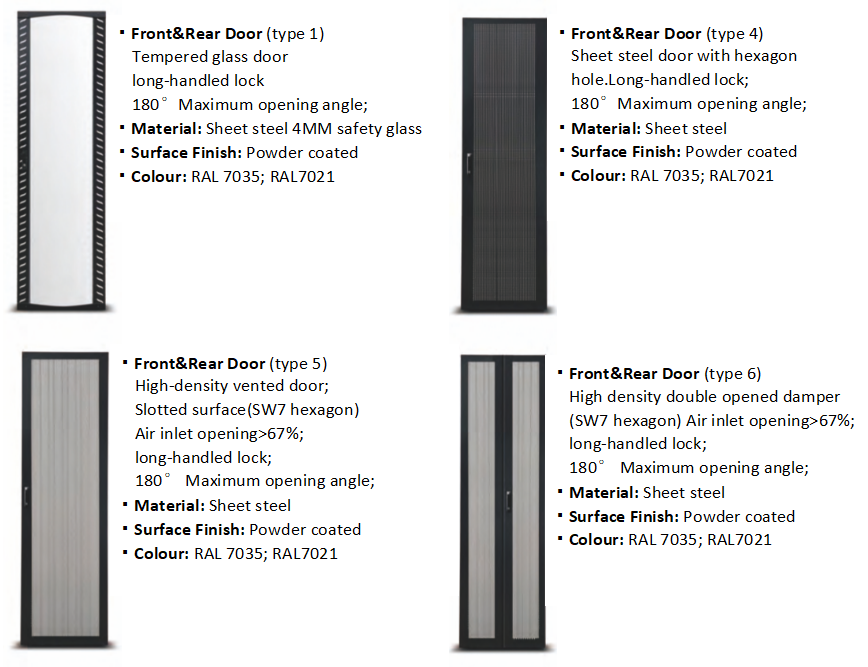

1 Read door 1 ····· ····· See front&rear door type
2 Side panel 4 SPCC t1.2 Powder coated
3 19"rails 4 T2.0 zinc-plated
4 Front beam 2 SPCC t1.5 Powder coated
5 Top cover 1 SPCC t1.2 Powder coated
6 Side frame 2 SPCC t1.2 Powder coated
7 Cable management slot 2 SPCC t1.0 Powder coated Only used for 800 width cabinet
8 Front door 1 ····· ····· See front&rear door type
9 Mounting spacer 4 T2.0 zinc-plated Only used for 800 width cabinet
10 Bottom 1 SPCC t1.0 Powder coated
11 Caster tray 2 SPCC t2.0 Powder coated
12 2" heavy duty castor 4 ····· ····· ·····
Hardware kits with cabinet:
A M12 adjustable feet 4 Steel zinc-plated Height:100MM
B M6 screw & nuts 20/40 Steel zinc-plated 40pcs for over 33U

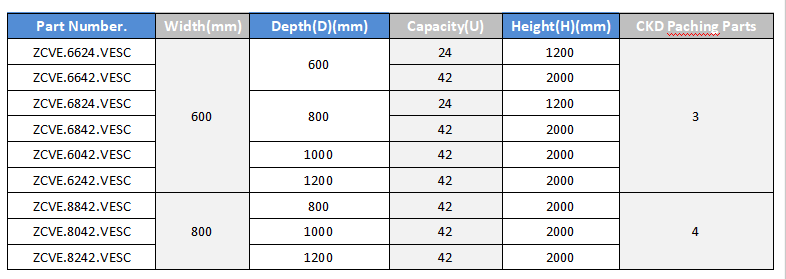

Specification:
VE Server Rack Cabinet with 1300kg Loading Capacity 24/42U Capacity and SPCC Cold Rolled Steel Construction

VE Server Rack Cabinet with 1300kg Loading Capacity 24/42U Capacity and SPCC Cold Rolled Steel Construction

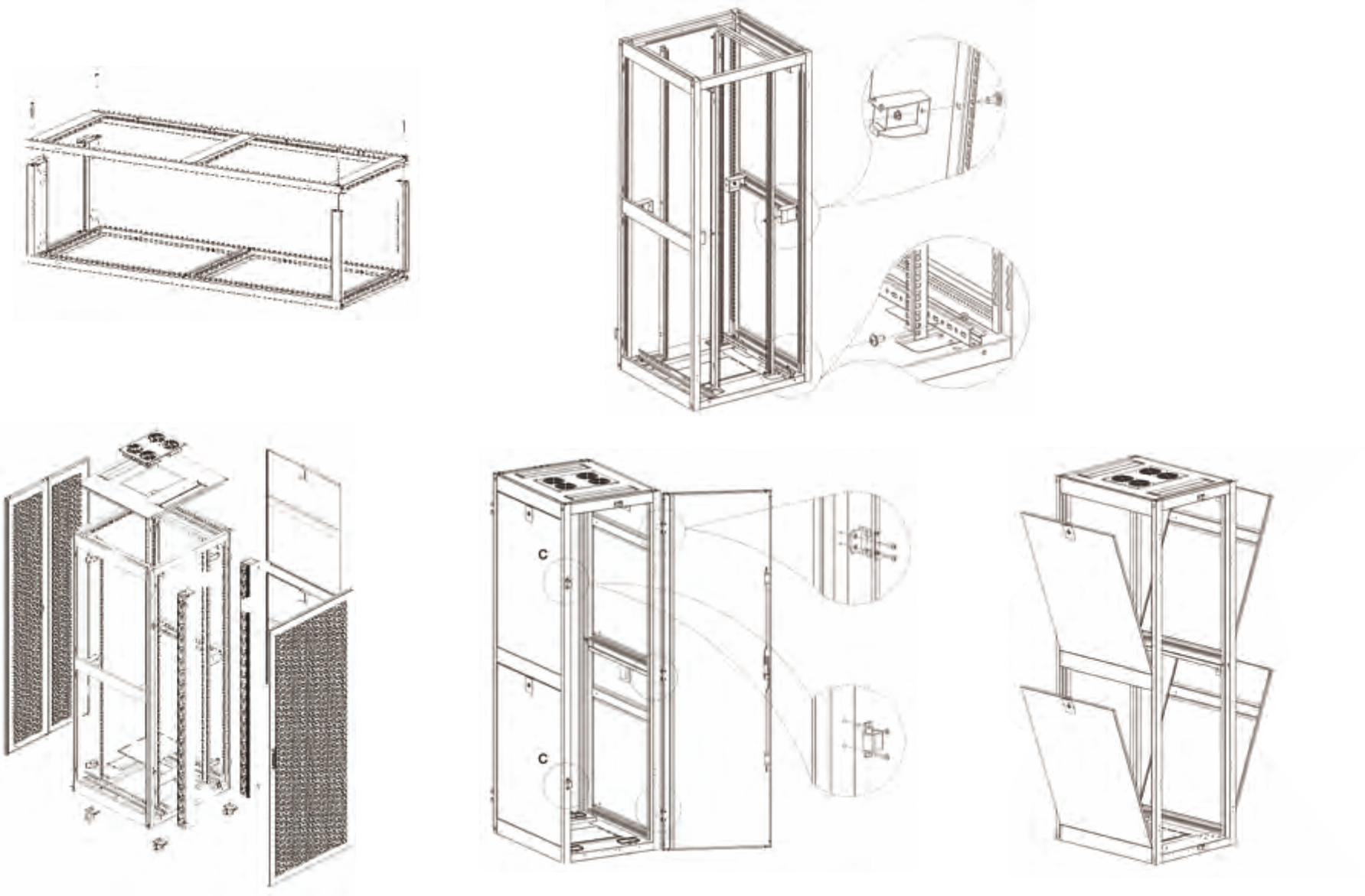

Assembling Draft

VE Server Rack Cabinet with 1300kg Loading Capacity 24/42U Capacity and SPCC Cold Rolled Steel Construction

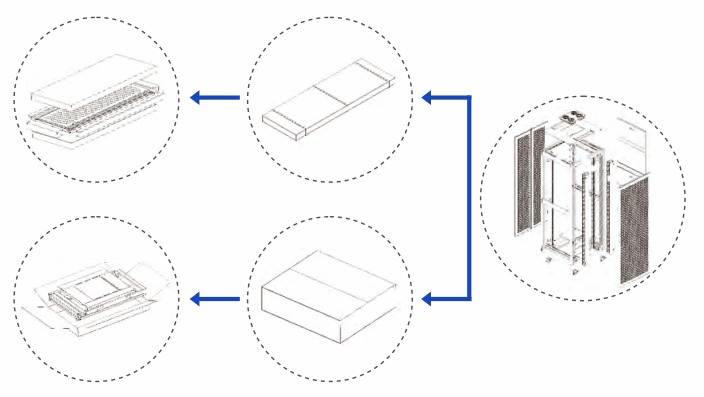

CKD Packing

VE Server Rack Cabinet with 1300kg Loading Capacity 24/42U Capacity and SPCC Cold Rolled Steel Construction
