OTDR Launch Cable Box with 2000 m Fiber Capacity for Field-Ready Rugged Design and Water & Dust Resistant Testing
OTDR Launch Cable Box with 2000 m Fiber Capacity for Field-Ready Rugged Design and Water & Dust Resistant Testing
Specifications
Brand Name :
Zion communication
Model Number :
OTDR Accessories
Place of Origin :
NINGBO CHINA
MOQ :
10 boxes
Delivery Time :
Normally 25 working days
Packaging Details :
1pcs/box
Description
OTDR TESTING ACCESSORY · LAUNCH / RECEIVE CABLE BOX

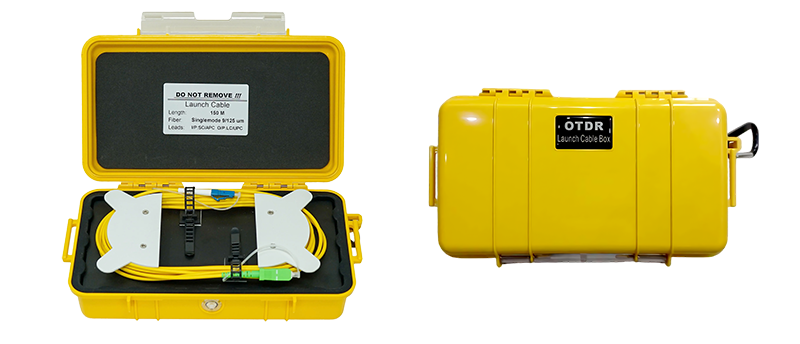

OTDR Launch Cable Box

OTDR launch cable boxes are designed to improve OTDR measurement accuracy by minimizing the impact of the OTDR launch pulse. Used as a launch/receive cable, this rugged field-ready box helps technicians test link loss, connector reflectance, and near/far-end events with better confidence.

Pulse Suppressor · Delay Line · Field TestingUp to 2000 m Fiber CapacitySM/MM Options (G.652D / G.657A / OM1–OM4)
Quick Specs
• Case Size: 23.8 × 14.1 × 6.7 cm
• Case Material: SR Polypropylene
• Weight: 0.75 kg (without fiber)
• Lead Length: 2 m, 3 mm buffer
• Fiber Length: 100–2000 m (max)
• Connectors: SC / LC / FC / ST
Custom configurations available

OTDR Launch Cable Box with 2000 m Fiber Capacity for Field-Ready Rugged Design and Water & Dust Resistant Testing

■Applications & Benefits

Typical Applications

  • Use as OTDR launch/receive cable.

  • Test link loss with an OTDR.

  • Measure insertion loss and reflectance of near/far end connectors.

  • Suppress the first reflection at the beginning of a fiber (pulse suppressor).

Field-Ready Features

  • Compact, rugged packaging for field work and training.

  • Helps prevent fiber damage and improves measurement confidence.

  • Compound latch provides a positive seal and easy opening with lock.

  • Water & dust resistant for harsh environments.

  • Auto purge valve for altitude and temperature changes.

  • Case can house up to 2,000 m of fiber.

■Standards & Compliance

  • ITU-T G652.D, G656.A

  • ITU-T G651.1 (OM1 / OM2 / OM3 / OM4)

  • IEC 60793-2-10 type A1a.1/A1b (OM1/OM2), type A1a.2 (OM3), type A1a.3 (OM4)

  • Telcordia GR-326-CORE

  • RoHS compliant (Directive 2011/65/EU)

■Technical Specifications

Parameter Specification
Case Dimension 23.8 cm × 14.1 cm × 6.7 cm
Case Material SR Polypropylene
Case Color Yellow
Weight 0.75 kg (without fiber)
Packaging Rugged hard-shell transit case
Storage Temperature –40°C to +85°C
Operating Temperature –40°C to +85°C
Humidity 0–95% (non-condensing)
Fiber Types G.652D, G.657A, OM1, OM2, OM3, OM4
Fiber Length (m) 100 to 2000 (max)
Lead Length 2 meters, 3 mm buffer
Typical Loss < 0.5 dB @ 1310 nm for 1000 m
Connector Types SC / LC / FC / ST
Polish Options PC, UPC, APC
Return Loss* UPC ≥ 50 dB, APC ≥ 60 dB, PC ≥ 35 dB

*Return loss values depend on connector type and polishing option.

■Ordering Information

Model Format: OTDR-A-B-C-D

  • A: Input Connector (SC / LC / FC / ST)

  • B: Output Connector (SC / LC / FC / ST)

  • C: Fiber Mode (G.652D / G.657A / OM1 / OM2 / OM3 / OM4)

  • D: Fiber Length (100–2000 m)

Need a custom configuration for training, calibration, or specific OTDR event zones? Contact ZION for build options.
