Fire Resistant Cable with FE180 / PH120 Fire Resistance, LSZH Outer Sheath, and Silicone + Mica Insulation for Fire Alarm Systems
Fire Resistant Cable with FE180 / PH120 Fire Resistance, LSZH Outer Sheath, and Silicone + Mica Insulation for Fire Alarm Systems
Specifications
Brand Name :
Zion communication
Model Number :
FR6387-UN
Place of Origin :
NINGBO, SHANGHAI
MOQ :
10KM
Delivery Time :
Normally 25 working days
Packaging Details :
roll, wooden spool, carton, pallet
Description

■ ZION COMMUNICATION — FR6387-UN-0710

Fire Resistant Cable 7 × 1.0 sq mm | BS 6387 / IEC 60331 / LSZH (Red RAL 3000)

Fire Resistant Cable with FE180 / PH120 Fire Resistance, LSZH Outer Sheath, and Silicone + Mica Insulation for Fire Alarm Systems

General Information

Item Specification
Product Name Fire Resistant Cable
Model No. FR6387-UN-0710
Construction Type CU / FR / LSZH (Unscreened)
Conductor Material Stranded Bare Copper (Class 5, EN 60228)
Conductor Size 18 × 0.25 mm
Nominal Cross Section 7 × 1.0 sq mm
Rated Voltage 300 / 500 V
Operating Temperature −30 °C ~ +90 °C
Outer Color Red RAL 3000
Applicable Standards IEC 60331-21 (FE180), BS 6387 CAT B/C, IEC 60332-1-2, IEC 60332-3-22, EN 50200 PH120, CE, RoHS

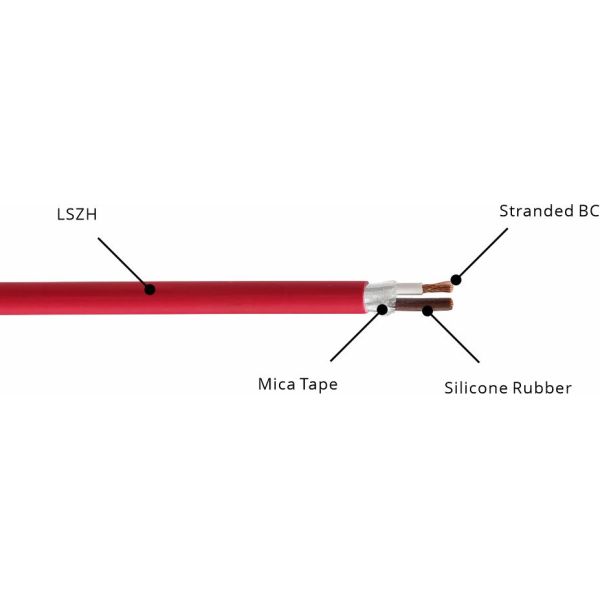

Construction Details

Component Material / Description Standard Dimensions
Conductor Stranded Bare Copper EN 60228 18 × 0.25 mm
DC Resistance (20 °C) — EN 60228 ≤ 21.5 Ω/km
Insulation Silicone Rubber (Heat Resistant) IEC/EN 60811-203 ≥ 0.42 mm
Insulation Diameter — IEC/EN 60811-201 2.1 ± 0.1 mm
Insulation Colors White / Black / Red / Blue / Gray / Brown / Green — —
Insulation Resistance > 200 MΩ/km — —
Fire Barrier Layer Mica Tape — 0.18 × 30 mm
Overall Screen — (Unscreened Type) — —
Drain Wire — — —
Outer Sheath LSZH (Low Smoke Zero Halogen) IEC/EN 60811-202 0.8 mm thick
Outer Diameter — IEC/EN 60811-203 8.4 ± 0.2 mm
Pitch of Twist — — 100 ± 10 mm
Inductance — — 2.3 mH/km
High-Voltage Test EN 50288-7 3.0 kV / 1 min —

■Fire & Safety Performance

Test Item Standard Description / Requirement
Fire Resistance IEC 60331-21 (FE180) / BS 6387 CAT B, CAT C Maintains circuit integrity for 180 min at 750 – 950 °C
Flame Propagation IEC 60332-1-2 / IEC 60332-3-22 / EN 50266-2-4 Controls flame spread on single and bunched cables
Smoke Density IEC 61034-1/2 Low smoke emission for better visibility
Corrosive Gas Emission IEC 60754-1/2 / EN 50267 Low acid gas, halogen-free
RoHS Compliance EU Directive 2011/65/EU Confirmed (Pb, Cd, Hg, Cr⁶⁺, PBB, PBDE Free)

■ Electrical & Mechanical Characteristics

  • Insulation Resistance: > 200 MΩ/km

  • Voltage Withstand: 3.0 kV (1 min)

  • Inductance: 2.3 mH/km

  • Operating Temperature: −30 °C ~ +90 °C

  • Minimum Bending Radius: 10 × Cable OD

  • Fire Survival Duration: 180 min (FE180 / PH120)


■ Applications

  • Designed for control and emergency power circuits that must remain operational during fire

  • Fire-alarm and emergency lighting systems

  • Smoke extraction and sprinkler controls

  • Hospitals, airports, tunnels and industrial facilities

■ Key Features

  • FE180 / PH120 Fire Resistance: Maintains circuit integrity up to 180 min at 950 °C

  • LSZH Outer Sheath: Low smoke and zero halogen gas emission

  • Silicone + Mica Insulation: Superior thermal and electrical stability

  • ✅ Certified Quality: Complies with IEC, BS, EN, CE and RoHS requirements
