Fire Resistant Cable 2 × 1.5 sq mm IEC 60331-21 (FE90) Compliant with Low Smoke Zero Halogen Sheath
Fire Resistant Cable 2 × 1.5 sq mm IEC 60331-21 (FE90) Compliant with Low Smoke Zero Halogen Sheath
Specifications
Brand Name :
Zion communication
Model Number :
FR331-UN
Place of Origin :
NINGBO, SHANGHAI
MOQ :
10KM
Delivery Time :
Normally 25 working days
Packaging Details :
roll, wooden spool, carton, pallet
Description

■ZION COMMUNICATION — FR331-OS-0215

Fire Resistant Cable 2 × 1.5 sq mm | IEC 60331-21 (FE90) / LSZH / BS 6387 Compliant (Red RAL 3000)

Fire Resistant Cable 2 × 1.5 sq mm IEC 60331-21 (FE90) Compliant with Low Smoke Zero Halogen Sheath


General Information

Item Specification
Product Name Fire Resistant Cable
Model No. FR331-OS-0215
Construction Type CU / FR / OS / LSZH (Overall Screened)
Conductor Material Stranded Bare Copper (Class 5, EN 60228)
Conductor Size 28 × 0.25 mm
Nominal Cross Section 2 × 1.5 sq mm
Rated Voltage 300 / 500 V
Operating Temperature −30 °C ~ +90 °C
Color Red RAL 3000
Applicable Standards IEC 60331-21 (FE90), BS 6387 CAT B/C, IEC 60332-1-2, IEC 60332-3-24, EN 50266-2-4, CE, RoHS

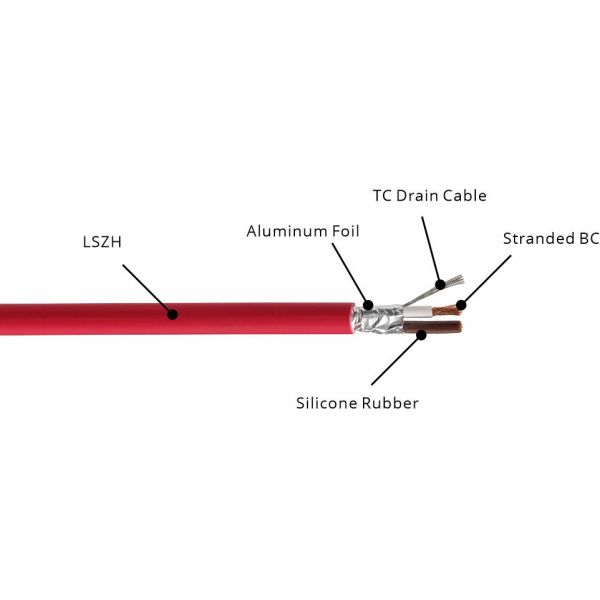

Construction Details

Component Material / Description Standard Dimensions
Conductor Stranded Bare Copper EN 60228 28 × 0.25 mm
DC Resistance (20 °C) — EN 60228 ≤ 13.3 Ω/km
Insulation Silicone Rubber (Heat Resistant) IEC/EN 60811-203 ≥ 0.45 mm
Insulation Diameter — IEC/EN 60811-201 2.4 ± 0.1 mm
Insulation Colors Brown / White — —
Insulation Resistance > 200 MΩ/km — —
Overall Screen Aluminum Foil (Overlapped) — 0.04 × 22 mm
Drain Wire Tinned Copper (7 × 0.3 mm) — —
Outer Sheath LSZH (Low Smoke Zero Halogen) IEC/EN 60811-202 ≥ 0.6 mm
Outer Diameter — IEC/EN 60811-203 6.3 ± 0.2 mm
Pitch of Twist — — 106 ± 10 mm
Inductance — — 2.3 mH/km
High Voltage Test EN 50288-7 2.0 kV / 1 min —

■Fire & Safety Performance

Test Item Standard Description / Requirement
Fire Resistance IEC 60331-21 (FE90) / BS 6387 CAT B, CAT C Maintains circuit integrity for 90 min at 750–850 °C
Flame Propagation IEC 60332-1-2 / IEC 60332-3-24 / EN 50266-2-4 Restricts flame spread on single and bunched cables
Smoke Density IEC 61034-1/2 Ensures low smoke emission and visibility
Corrosive Gas Emission IEC 60754-1/2 / EN 50267 Low acid gas, halogen-free
RoHS Compliance EU Directive 2011/65/EU Confirmed (Pb, Cd, Hg, Cr⁶⁺, PBB, PBDE Free)

■ Electrical & Mechanical Characteristics

  • Insulation Resistance: > 200 MΩ/km

  • Voltage Withstand: 2.0 kV (1 min)

  • Inductance: 2.3 mH/km

  • Operating Temperature: −30 °C ~ +90 °C

  • Minimum Bending Radius: 10 × OD

  • Fire Survival Duration: 90 min (FE90)

■ Applications

  • Ideal for emergency and control circuits that must maintain operation under fire conditions

  • Fire alarm and emergency lighting systems

  • Smoke extraction and sprinkler controls

  • Hospitals, tunnels, airports and industrial complexes

■ Key Features

  • FE90 Fire Resistance: Circuit integrity up to 90 min at 850 °C

  • LSZH Sheath: Low smoke and zero halogen gas emission

  • Silicone + Aluminum Screen: Thermal and EMI protection

  • ✅ Certified Safety: Complies with IEC, BS, EN, CE and RoHS
