12 Fibers OM1 Multimode PVC Jacket Fiber Optic Patch Cord for High-Speed Data Transmission
12 Fibers OM1 Multimode PVC Jacket Fiber Optic Patch Cord for High-Speed Data Transmission
Specifications
Brand Name :
Zion communication OR OEM
Model Number :
SC UPC 12 Fibers OM1
Certification :
ISO, CE, RoHS, UL
Place of Origin :
CHINA
MOQ :
1,000 PCS
Payment Terms :
T/T,L/C
Supply Ability :
30,000 PCS / Month
Delivery Time :
Normally 25 workingdays
Packaging Details :
1 PC/Plastic Bag, PCS/Carton
Fiber Unit :
G.652D or G.657A
Tight Buffer Fiber :
Tight Buffer Fiber
Jacket :
PVC or LSZH
Color :
Orange
Package :
1 PC/Plastic Bag, PCS/Carton
Description

Fiber Optic Patch Cord

SC LC FC ST/APC UPC 0.9/2.0/3.0mm Single Mode/Multimode PVC/LSZH Fiber Optic patch cord/pigtails.

Inquire Now

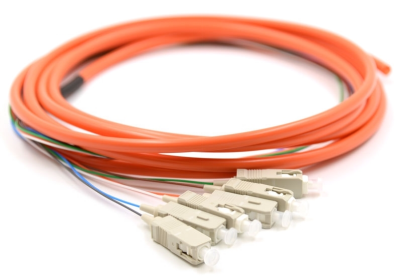

12 Fibers OM1 Multimode PVC Jacket Fiber Optic Patch Cord for High-Speed Data Transmission

SC UPC 12 Fibers OM1 Multimode Bunch PVC 0.9mm With Jacket FOPT

SC UPC 12 Fibers OM1
Multimode Bunch PVC 0.9mm with Jacket FOPT
21F12411-2
12 Fibers OM1 Multimode PVC Jacket Fiber Optic Patch Cord for High-Speed Data Transmission
Product Specification
Fiber Optic Cable
Fiber Type Single-mode: OS2 ( G.652.D / G.657.A1 / G.657.A2)
Multi-mode: OM1(62.5/125), OM2(50(125),
[(OM3, OM4) (50/125,Laser Optimization)]
900um/0.9mm Buffer Colour Yellow: SM: OS2 ( G.652.D / G.657.A1 / G.657.A2)
Orange: OM1, OM2
Aqua: OM3, OM4
Customized : Green,Brown,White,Red,Black,Purple,Rose,Slate
900um/0.9mm Types Single Typical: 1 Fiber
Bunch Typical: 12 Fibers
Customized: 4-48 Fibers
Aramid Yarn (2.0/3.0mm) Aramid yarn is laid over the cable core
to serve as peripheral strength member.
Cable Jacket Main material: PVC / LSZH / Plenum (OFNP)
OD: Simplex: 0.9/2.0/3.0mm Duplex: 0.9/2.0/3.0mm
Jacket Color Yellow: SM: OS2 ( G.652.D / G.657.A1 / G.657.A2)
Orange: OM1, OM2
Aqua: OM3, OM4
Cable Length 1m, 2m, 3m. other lengths on request
Product Specification
Connector
Connector Type LC, SC, FC, ST, MU, MTRJ, LSH, E-2000

12 Fibers OM1 Multimode PVC Jacket Fiber Optic Patch Cord for High-Speed Data Transmission

 SC ( Subscriber Connector/Square Connector/Standard Connector)
Typical Application:
Telecom,GPON,EPON,GBIC
12 Fibers OM1 Multimode PVC Jacket Fiber Optic Patch Cord for High-Speed Data Transmission
Product Specification
Parameter SC UPC
OM1 G.652.D/G.657.A1/G.657.A2
Operating Wavelength(nm) 850-1300
Insertion Loss (dB) ≤ 0.3
Return Loss (dB) ≥ 35
Repeatability (dB) ≤ 0.1
Interchangeability (dB) ≤ 0.2
Tensil Strength (N) ≥ 1000
Operating Temperature (℃) -20 ~ +85
Storage Temperature (℃) -40 ~ +85

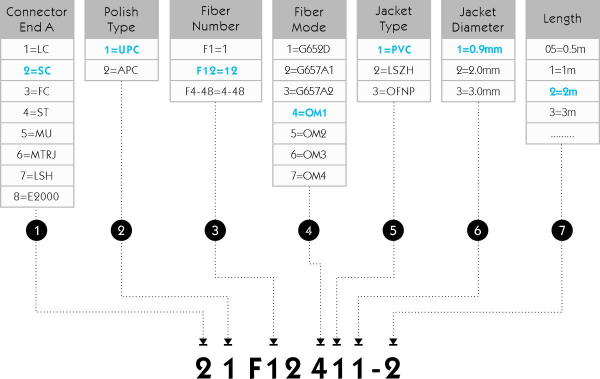

Zion Code Description
21F12411-2 SC UPC 12 Fibers
OM1 Multimode Bunch PVC 0.9mm with Jacket FOPT

12 Fibers OM1 Multimode PVC Jacket Fiber Optic Patch Cord for High-Speed Data Transmission
OEM/ODM service for you
ZION Communication has rich expiriences in
producing OEM/ODM cases becaused of Profession R & D team.
• Customized Logo
• Printing on Cable
• Label/PE bag/Carton design
• Different Color & Different Lengths Available

12 Fibers OM1 Multimode PVC Jacket Fiber Optic Patch Cord for High-Speed Data Transmission LC UPC 12 Fibers G.652.D Single Mode Bunch PVC 0.9mm with Jacket FOPT 11F12111-2(7242201)SM(OS2)G.652.D/G.657.A1/G.657.A2 Bunch Typical 12 Fibers, Copper Cabling, Fiber Optic Pigtail
12 Fibers OM1 Multimode PVC Jacket Fiber Optic Patch Cord for High-Speed Data Transmission LC UPC 12 Fibers G.652.D Single Mode Unjacketed Color-Coded FOPT 11F12111U-2(7242202)SM(OS2)G.652.D/G.657.A1/G.657.A2 Bunch Typical 12 Fibers, Copper Cabling, Fiber Optic Pigtail
12 Fibers OM1 Multimode PVC Jacket Fiber Optic Patch Cord for High-Speed Data Transmission LC UPC 12 Fibers OM1 Multimode Bunch PVC 0.9mm with Jacket FOPT 11F12411-2(7242203)OM1 G.652.D/G.657.A1/G.657.A2 Bunch Typical 12 Fibers, Copper Cabling, Fiber Optic Pigtail
12 Fibers OM1 Multimode PVC Jacket Fiber Optic Patch Cord for High-Speed Data Transmission SC UPC 12 Fibers G.652.D Single Mode Bunch PVC 0.9mm with Jacket FOPT 21F12111-2(7242204)SM(OS2)G.652.D/G.657.A1/G.657.A2 Bunch Typical 12 Fibers, Copper Cabling, Fiber Optic Pigtail
12 Fibers OM1 Multimode PVC Jacket Fiber Optic Patch Cord for High-Speed Data Transmission SC UPC 12 Fibers G.652.D Single Mode Unjacketed Color-Coded FOPT 21F12111U-2(7242205)SM(OS2)G.652.D/G.657.A1/G.657.A2 Bunch Typical 12 Fibers, Copper Cabling, Fiber Optic Pigtail
12 Fibers OM1 Multimode PVC Jacket Fiber Optic Patch Cord for High-Speed Data Transmission SC UPC 12 Fibers OM1 Multimode Bunch PVC 0.9mm with Jacket FOPT 21F12411-2(7242206)OM1 G.652.D/G.657.A1/G.657.A2 Bunch Typical 12 Fibers, Copper Cabling, Fiber Optic Pigtail
