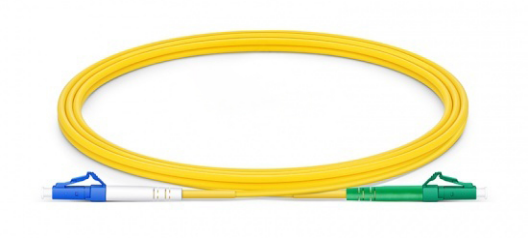

LC UPC to LC APC Simplex G.652D Single Mode PVC Fiber Optic Patch Cord for High-Density Connections
LC UPC to LC APC Simplex G.652D Single Mode PVC Fiber Optic Patch Cord for High-Density Connections
Specifications
Brand Name :
Zion communication OR OEM
Model Number :
LC UPC to LC APC Simplex G.652.D
Certification :
ISO, CE, RoHS, UL
Place of Origin :
CHINA
MOQ :
1,000 PCS
Payment Terms :
T/T,L/C
Supply Ability :
30,000 PCS / Month
Delivery Time :
Normally 25 workingdays
Packaging Details :
1 PC/Plastic Bag, PCS/Carton
Fiber Unit :
G.652D or G.657A
Tight Buffer Fiber :
Tight Buffer Fiber
Jacket :
PVC or LSZH
Color :
Yellow
Package :
1 PC/Plastic Bag, PCS/Carton
Description

Fiber Optic Patch Cord

SC LC FC ST/APC UPC 0.9/2.0/3.0mm Single Mode/Multimode PVC/LSZH Fiber Optic patch cord/pigtails.

Inquire Now
LC UPC to LC APC Simplex G.652D Single Mode PVC Fiber Optic Patch Cord for High-Density Connections

LC UPC To LC APC Simplex G.652.D Single Mode PVC 2.0mm -2m(6ft) FOPC

LC UPC to LC APC Simplex
G.652.D Single Mode PVC 2.0mm -2m(6ft) FOPC
1112S112-2
LC UPC to LC APC Simplex G.652D Single Mode PVC Fiber Optic Patch Cord for High-Density Connections
Product Specification
Fiber Optic Cable
Fiber Type Single-mode: OS2 ( G.652.D / G.657.A1 / G.657.A2)
Multi-mode: OM1(62.5/125), OM2(50(125),
[(OM3, OM4) (50/125,Laser Optimization)]
Fiber Count Simplex / Duplex
Cable Jacket Main material: PVC / LSZH / Plenum (OFNP)
OD: Simplex: 0.9/2.0/3.0mm Duplex: 0.9/2.0/3.0mm
Jacket Color Yellow: SM: OS2 ( G.652.D / G.657.A1 / G.657.A2)
Orange: OM1, OM2
Aqua: OM3, OM4
Cable Length 1m, 2m, 3m. other lengths on request
Mechanical
Specification		 Ferrule Ceramic; (MTRJ: PS-Polyphenylene Sulphide)
Apex Offset ＜ 50um
Fiber Height ± 100nm
Radius of Curvature 7mm R ＜ 25mm (Excluding MTRJ)
Repeatability ≤ 0.2dB 1,000 times mating cycles
Product Specification
Connector
Connector Type LC, SC, FC, ST, MU, MTRJ, LSH, E-2000

LC UPC to LC APC Simplex G.652D Single Mode PVC Fiber Optic Patch Cord for High-Density Connections

 LC ( Lucent Connector/Little Connector/Local Connector)
Typical Application: High density connections,
SFP and SFP+ transceivers, XFP transceivers

LC UPC to LC APC Simplex G.652D Single Mode PVC Fiber Optic Patch Cord for High-Density Connections
Product Specification
Parameter LC UPC LC APC
SM(OS2)G.652.D/G.657.A1/G.657.A2
Operating Wavelength(nm) 1310-1550
Insertion Loss (dB) ≤ 0.3 ≤ 0.3
Return Loss (dB) ≥ 55 ≥ 60
Repeatability (dB) ≤ 0.1 ≤ 0.1
Interchangeability (dB) ≤ 0.2 ≤ 0.2
Tensil Strength (N) ≥ 1000 ≥ 1000
Operating Temperature (℃) -20 ~ +85 -20 ~ +85
Storage Temperature (℃) -40 ~ +85 -40 ~ +85

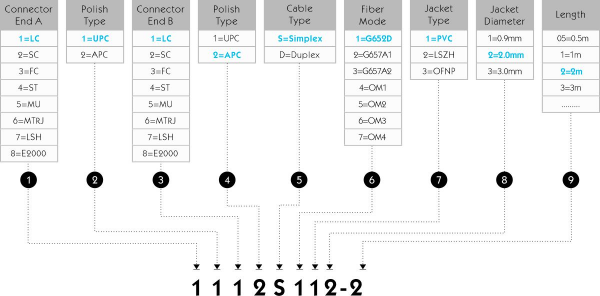

Zion Code Description
1112S112-2 LC UPC to LC APC Simplex
G.652.D Single Mode PVC 2.0mm -2m(6ft) FOPC

LC UPC to LC APC Simplex G.652D Single Mode PVC Fiber Optic Patch Cord for High-Density Connections
OEM/ODM service for you
ZION Communication has rich expiriences in
producing OEM/ODM cases becaused of Profession R & D team.
• Customized Logo
• Printing on Cable
• Label/PE bag/Carton design
• Different Color & Different Lengths Available
