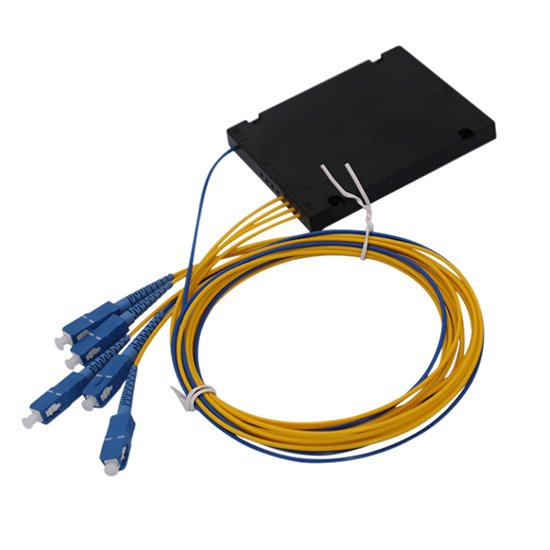

1×4 Single Mode PLC Optical Splitter ABS Box Type with SC Connector for FTTH and LAN Applications
1×4 Single Mode PLC Optical Splitter ABS Box Type with SC Connector for FTTH and LAN Applications
Specifications
Brand Name :
HELLOSIGNAL® OR OEM
Model Number :
PLC Splitter
Place of Origin :
CHINA
MOQ :
20pcs
Payment Terms :
T/T
Supply Ability :
no limit
Delivery Time :
Normally 25 days after received the deposit.
Packaging Details :
10 PC / Plastic Bag
Operating Wavelength (nm) :
1260~1650nm
Fiber Length :
1m or 1.5m or Requested
Operating Temperature (℃) :
-40 ～ 85
Connector Type :
SC/APC,SC/UPC,LC FC ST
Description

Fiber Optic Splitter

1*4/1*8/1*16/1*32 Single Mode/Multimode with SC LC FC ST/APC UPC connectors FBT/PLC OPTIC SPLITTER

Inquire Now
1×4 Single Mode PLC Optical Splitter ABS Box Type with SC Connector for FTTH and LAN Applications

1×4 Single Mode PLC Optical Splitter ABS Box Type with SC Connector for FTTH and LAN Applications

1X4 PLC Fiber Optic Splitter Application:

  • FTTH, LAN, PON & Optical CATV
  • Local ring net, Optical fiber communication system
  • Optical fiber test equipment, Optical fiber sensor

1X4 PLC Fiber Optic Splitter Specification

PLC Splitter Type 1×4 PLC Splitter
Configuration Type 1×4
Operating Wavelength (nm) 1260~1650nm
Fiber Length 1m or 1.5m or Requested
Directivity (≥) dB 55
Package Style ABS Module
Fiber Type Singlemode G657A1 or G652D
Fiber Diameter 2.0mm,3.0mm
Polarization Dependent Loss (≤) dB 0.2
Wavelength Dependent Loss (≤) dB 0.3
Typical Insertion Loss (≤) dB 7
Insertion Loss (≤) dB 7.4
Loss Uniformity (≤) dB 0.6
Operating Temperature (℃) -40 ～ 85
Storage Temperature (℃) -40 ～ 85
Sealing Package Dimension (mm) 100*80*10
Connector Type SC/APC,SC/UPC,LC FC ST
Brand HELLOSIGNAL® OR OEM
Delivery time Normally 25 days after received the deposit.
MOQ 20pcs

Introduction to 1X4 PLC Fiber Optic Splitter

1×4 Single mode PLC Splitter ABS Box Single Mode PLC Coupler Type with SC Connector comes with 2.0mm or 3.0mm fiber cable at 1.5m usually.The 1×4 Single mode PLC Splitter devices have high performance in terms of low insertion loss, low PDL, high return loss and excellent uniformity over a wide wavelength range from 1260nm to 1620nm and working in temperature from -40°C to +80°C. The PLC Optical Splitters have standard configurations of 1×4, 1×8, 1×16 and 1×32 configurations, as well as customized structures of 2×8, 2×16, 2×32.

Performance Specifications:

Parameter 1 x N PLC Splitter; 2 x N PLC Splitter
Parameter 1×2 1×4 1×8 1×16 1×32 1×64 1×128
2×2 2×4 2×8 2×16 2×32 2×64 2×128
Operating Wavelength(mm) 1260~1650
Fiber Type G657A1 or Customized
Insertion Loss (dB)
(P/S Grade)		 1 x N 3.8/4.0 7.2/7.4 10.3/10.7 13.5/13.7 16.5/16.9 20.5/21.0 23.8/24.2
2 x N 3.9/4.2 7.3/7.6 10.5/11 14.4/14.6 17.4/17.9 21.0/21.5 24.5/25.0
Loss Uniformity (dB) < 0.4 < 0.6 < 0.8 < 1.0 < 1.5 < 2.0 < 2.5
PDL(dB) < 0.2 < 0.2 < 0.2 < 0.3 < 0.3 < 0.4 < 0.4
Return Loss (dB) > 55 > 55 > 55 > 55 > 55 > 55 > 55
Directivity ( dB) > 55 > 55 > 55 > 55 > 55 > 55 > 55
Wavelength Dependent Loss (dB) < 0.5 < 0.5 < 0.5 < 0.5 < 1.0 < 1.0 < 1.0
Fiber Length (m) 1m or Customized
Temperature Stability(- 20~+80°C) < 0.5
Operating Temperature (°C) – 20~+80
Storage Temperature (°C) – 40~+80
Maximum Power Handing(mW) 500.0

Notice:Above specifications are for devices without connector. Add an additional 0.2dB loss per connector.

Important Alternative Information

A B D F F
Port Package Fiber Diameter Fiber Length Connector
0102 = 1×2
0104 = 1×4
0108 = 1×8
0116 = 1×16
0132 = 1×32
0164 = 1×64
1128 = 1×128
0202 = 2×2
0204 = 2×4
0208= 2×8
0216 = 2×16
0232=2×32
0264 = 2×64
2128 = 2×128		 1=Bare
2=Blockless
3=ABS Box Module
4=lnsert Box
5=Pallet Type
6=Rackmount
Z=Customized		 0=250 um
1=900 um
2=2.0mm
3=3.0mm		 0=0.5m
1=1.0m
2=1.5m
3=2.0m
4=3.0m
5=4.0m
Z=Customized		 0=None
1=FC/APC
2=FC/UPC
3=SC/APC
4=SC/UPC
5=LC/APC
6=LC/UPC
7=ST
Z=Customized
