Passive QSFP28 TO QSFP28 Direct Attach Cable 100G
Passive QSFP28 TO QSFP28 Direct Attach Cable 100G
Specifications
Brand Name :
Zion communication
Model Number :
Direct Attach Cable
Place of Origin :
CHINA
MOQ :
no limit
Payment Terms :
T/T
Supply Ability :
no limit
Delivery Time :
Normally 10 working days
Packaging Details :
10 PC / Plastic Bag
Max Cable Distance 1 :
5m
Connector Type :
QSFP28 to QSFP28
Cable Type :
Passive Twinax
Max Data Rate :
100Gbps
Description

Zion Code and Description

Zion Code Zion Description
7217010 100G Passive QSFP28 TO QSFP28 Direct Attach Cable

Applications

  • 100GBASE-SR4 100G Ethernet Links; InfiniBand QDR applications
  • Servers, switches, storage and host card adap

Description

The 7217010 100G QSFP28 direct attach cables is a 4-channel parallel passive copper product for storage, data centers and high-performance computing connections. Each channel is capable of transmitting data at 25 Gbps, enabling a 100 Gbps total data rate of 5 meters.

Main product parameters

Connector Type QSFP28 to QSFP28 Vendor Name Zion Communication
Max Data Rate 100Gbps Wire AWG 25AWG – 30AWG
Max Cable Distance 1 5m Cable Type Passive Twinax
Power Supply 3.3V Operating Temp. 0°C to 70°C (32°F to 158°F)

Passive QSFP28 TO QSFP28 Direct Attach Cable 100G Passive QSFP28 TO QSFP28 Direct Attach Cable 100G

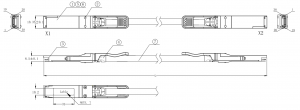

Outline Drawing

Passive QSFP28 TO QSFP28 Direct Attach Cable 100G

Zion Communication’s Hot DAC types

Zion Code Zion Description
7217010 100G Passive QSFP28 TO QSFP28 Direct Attach Cable
7217020 100G Passive QSFP28 TO 4×SFP28 Direct Attach Cable
7217030 40G Passive QSFP+ TO QSFP+ Direct Attach Cable
7217040 40G Passive QSFP+ TO 4×SFP+ Direct Attach Cable
7217050 25G Passive SFP28 TO SFP28 Direct Attach Cable
7217060 10G Passive SFP+ TO SFP+ Direct Attach Cable
