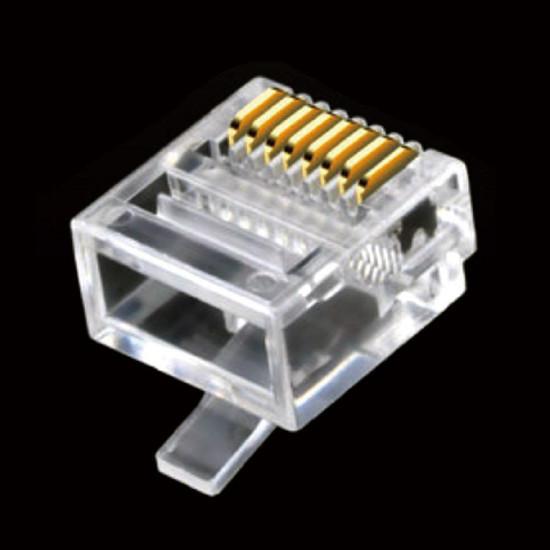

ZC-MP88UFS(7246216) 8P/8C CAT5E Modular Plug Unshielded Flat Over
ZC-MP88UFS(7246216) 8P/8C CAT5E Modular Plug Unshielded Flat Over
Specifications
Brand Name :
Zion communication
Model Number :
ZC-MP88UFS
Current Rating,maximum :
0.75 A
Insulation Resistance,minimum :
500 mOhm
Safety Voltage Rating :
150 Vac
Cable Type :
Flat over,unshielded
Interface :
RJ45
Packaging Type :
Bag | Box | Carton
Description

ZC-MP88UFS(7246216) 8P/8C, CAT5E,Unshielded, Flat Over, 8-Position, Short Crystal Head

Modular Plug , 8P/8C, CAT5E,unshielded, Flat over,
8-position, short crystal head,100/bag

Product composition View

ZC-MP88UFS(7246216) 8P/8C CAT5E Modular Plug Unshielded Flat Over

Dimensional Structure

ZC-MP88UFS(7246216) 8P/8C CAT5E Modular Plug Unshielded Flat Over

Electrical Specifications

ANSI/TIA Category 5
Current Rating,maximum 0.75 A
Insulation Resistance,minimum 500 mOhm
Safety Voltage Rating 150 Vac
Pass fluke test Compliant

General Specifications

Cable Type Flat over,unshielded
Interface RJ45
Application
Operating Temperature -40℃ to +85℃
Relative Humidity Up to 93%, non-condensing
Package Quantity 100
Packaging Type Bag | Box | Carton
Positions/loaded Contacts 8P/8C

Mechanical Specifications

Conductor Gauge Solid/Stranded 26-24 AWG
Contact Base Material Phosphor bronze
Contact Plating Material Gold
Contact Plating Thickness 50μ OR 30μ | 6μ
Material Type PC = Polycarbonate
Plug Insertion Life,minimum 750 times
Plug Shield Base Material Copper Alloy
Plug Shield Plating Material Nickel

Regulatory Compliance/Certifications

RoHS 2011/65/EU Compliant
