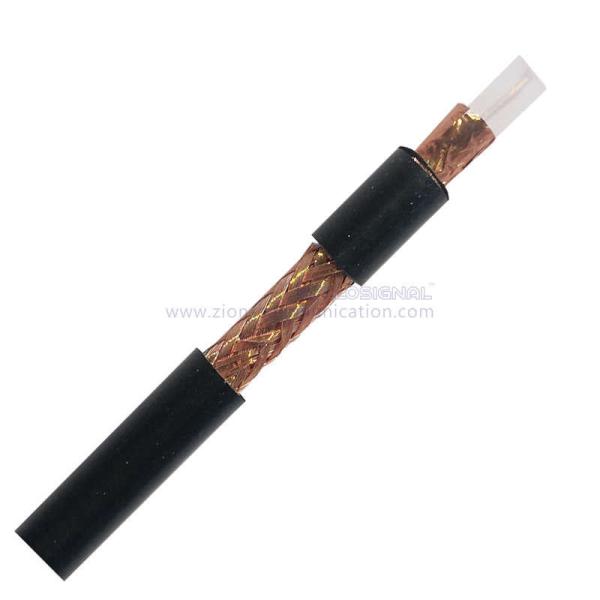

Golden CCTV Coaxial Cable RG59 Coaxial Cable For Surveillance
Golden CCTV Coaxial Cable RG59 Coaxial Cable For Surveillance
Specifications
Brand Name :
Zion communication OR OEM
Model Number :
RG59 Coaxial Cable
Certification :
ISO, UL, CE, RoHS
Place of Origin :
China
MOQ :
30 KM
Payment Terms :
T/T, L/C
Supply Ability :
3000KM / Month
Delivery Time :
25 working days
Packaging Details :
305M, 1000FT, Wooden Reel, Carton
Conductor :
BC
Insulation :
Solid PE
Shield 1 :
Golden Color AL/PET FOIL
Shield 2 :
34AWG Copper Clad Aluminum(85%)
Jacket :
PVC
Color :
Black, White
Package :
305M, 1000FT, Wooden Reel, Carton
Description
Construction Parameters:
Inner Conductor 0.58mm BC
Dielectric 3.7±0.05mm Solid PE
Shield 1 Golden Color AL/PET FOIL
Shield 2 0.12mm/34AWG Copper Clad Aluminum(85%)
Jacket 6.00±0.15mm PVC
Application For Use in Longer CCTV Run Lengths, POC
Electrical Characteristics:
Inner Conductor Resistance 66 Ohms/KM at 20℃
Capacitance 67±2 pF/m
Impedance 75 ± 3 Ω
Return loss between 5 and 1000MHz: > 22dB
Velocity of Propagation 0.66
Sparker Test (VAC) 3
Mechanical and Envrionmental Properties
Cable bend radius 10 times the cable diameter
Operating Temp Range -20 ℃ to 65℃
Cable diamensions 6.00±0.15mm PVC

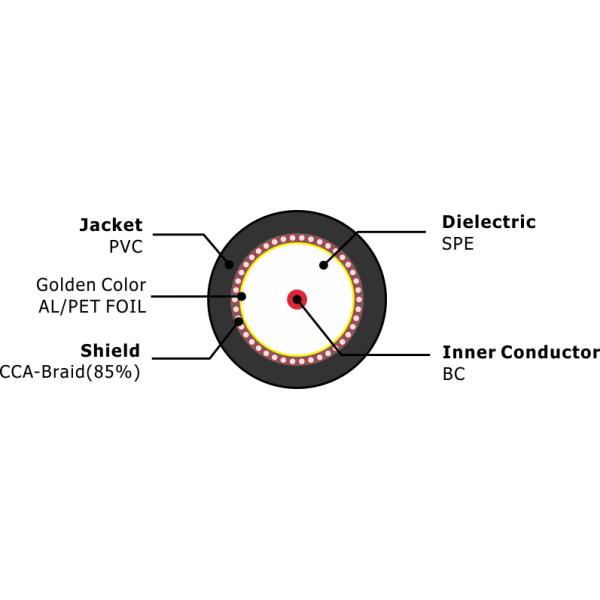

Cross Section
Golden CCTV Coaxial Cable RG59 Coaxial Cable For Surveillance
Attenuation(20℃):
Frequency (MHZ) Max Attenuation (dB/100m)
5 2.4
50 7.5
100 10.6
300 18.3
450 22.5
865 31
1000 33.5
Order Informations:
Marking HELLOSIGNAL RG59 Golden CCTV COAXIAL CABLE 7100175 ×××M/FT
Package 100m/Spool,300M/Wooden Spool,500M/Wooden Spool
Delivery time Normally 25 days after received the deposit.
Brand HELLOSIGNAL® OR OEM
