2.5C-2V Coaxial Cable JIS C CCTV Construction Cable
2.5C-2V Coaxial Cable JIS C CCTV Construction Cable
Specifications
Brand Name :
Zion communication OR OEM
Model Number :
JIS C CCTV Coaxial Cable
Certification :
ISO, UL, CE, RoHS
Place of Origin :
China
MOQ :
30 KM
Payment Terms :
T/T, L/C
Supply Ability :
3000KM / Month
Delivery Time :
25 working days
Packaging Details :
305M, 1000FT, Wooden Reel, Carton
Conductor :
CCS
Insulation :
SPE
Shield :
5×16 BC Braid(L=16)
Jacket :
PVC
Color :
Black, White
Package :
305M, 1000FT, Wooden Reel, Carton
Description

2.5C-2V

75 Ohm CCTV coaxial Cable

NO.7100902
Construction Parameters:
Inner Conductor 0.40mm BC
Dielectric 2.4mm SPE
Shield 0.12mm×6×16 BC Braid(L=20)
Jacket 4.0±0.5mmPVC
Jacket Thickness 0.05mm
Application For Use in Longer CCTV Run Lengths
Electrical Characteristics:
Inner Conductor Resistance The Max. at 20℃ shall be<145Ω/km
Capacitance 69±4 pF/m
Impedance 75 ± 3 Ω
Return loss between 5 and 1000MHz: > 20dB
Velocity of Propagation
Sparker Test (VAC) 1
Mechanical and Envrionmental Properties
Cable bend radius 10 times the cable diameter
Operating Temp Range -20 ℃ to 65℃
Cable diamensions

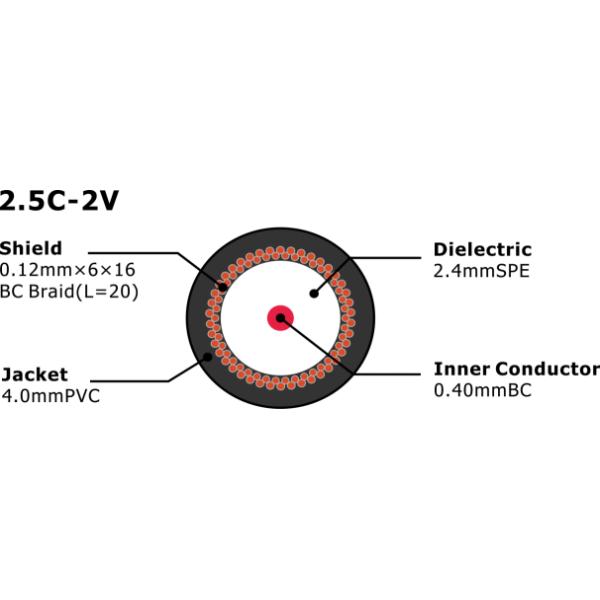

Cross Section
2.5C-2V Coaxial Cable JIS C CCTV Construction Cable
Attenuation(20℃):
Frequency (MHZ) Max Attenuation(dB/100ft) Max Attenuation (dB/100m)
10 4.2
30 9.3
72
88
90
135
180
220 19
270
440
750
770
Order Informations:
Marking

HELLOSIGNAL 2.5C-2V

CCTV COAXIAL CABLE 7100902 ×××M/FT
Package Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet …
Delivery time Normally 25 days after received the deposit.
Brand HELLOSIGNAL® OR OEM
