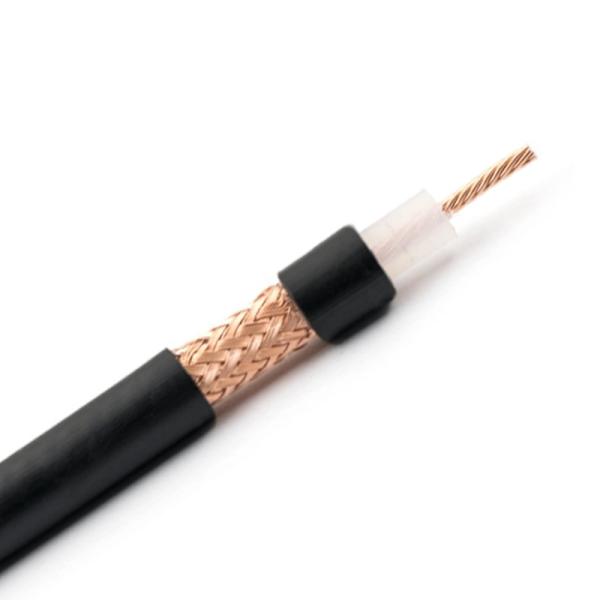

7C-2V 75ohm CCTV Cable Copper Wire 7C-2V Coaxial Cable UL CPR ETL Certification
7C-2V 75ohm CCTV Cable Copper Wire 7C-2V Coaxial Cable UL CPR ETL Certification
Specifications
Brand Name :
Zion communication OR OEM
Model Number :
JIS C CCTV Coaxial Cable
Certification :
ISO, UL, CE, RoHS
Place of Origin :
China
MOQ :
30 KM
Payment Terms :
T/T, L/C
Supply Ability :
3000KM / Month
Delivery Time :
25 working days
Packaging Details :
305M, 1000FT, Wooden Reel, Carton
Conductor :
BC
Insulation :
SPE
Shield :
8×24 BC Braid(L=45)
Jacket :
PVC
Color :
Black, White
Package :
305M, 1000FT, Wooden Reel, Carton
Description

7C-2V

75 Ohm CCTV coaxial Cable

NO.7100909
Construction Parameters:
Inner Conductor 7×0.40mmBC
Dielectric 7.3mmSPE
Shield 0.18mm×8×24 BC Braid(L=45)
Jacket 10.4±0.5mmPVC
Jacket Thickness 1.1mm
Application For Use in Longer CCTV Run Lengths
Electrical Characteristics:
Inner Conductor Resistance The Max. at 20℃ shall be<20.7Ω/km
Capacitance 67±3 pF/m
Impedance 75 ± 3 Ω
Return loss between 5 and 1000MHz: > 20dB
Velocity of Propagation
Sparker Test (VAC) 1
Mechanical and Envrionmental Properties
Cable bend radius 10 times the cable diameter
Operating Temp Range -20 ℃ to 65℃
Cable diamensions
Cross Section
7C-2V 75ohm CCTV Cable Copper Wire 7C-2V Coaxial Cable UL CPR ETL Certification
Attenuation(20℃):
Frequency (MHZ) Max Attenuation(dB/100ft) Max Attenuation (dB/100m)
10 1.70
30 2.90
72 4.60
88 5.00
90 5.10
135 6.20
180 7.20
220 8.00
270 8.80
440 11.30
750 14.60
770 14.80
1300 19.20
2400 26.10
Order Informations:
Marking

HELLOSIGNAL 7C-2V

CCTV COAXIAL CABLE 7100909 ×××M/FT
Package Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet …
Delivery time Normally 25 days after received the deposit.
Brand HELLOSIGNAL® OR OEM
