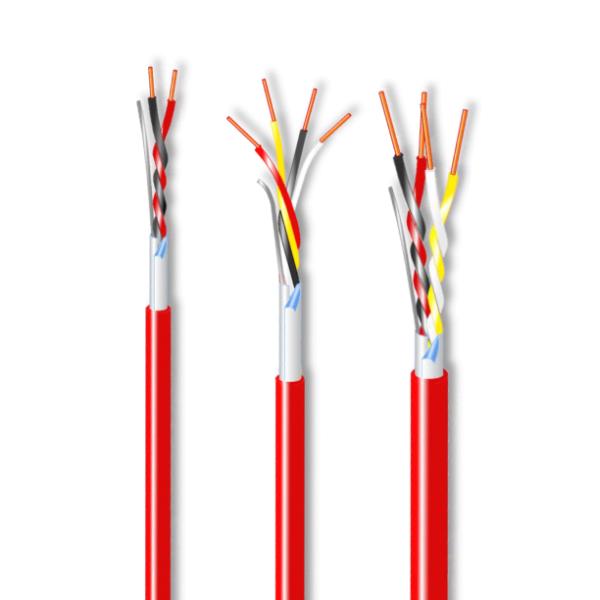

JB-Y(St)Y Alarm Cable PVC Insulation Jacket Durable Security Fire alarm Cable
JB-Y(St)Y Alarm Cable PVC Insulation Jacket Durable Security Fire alarm Cable
Specifications
Brand Name :
Zion communication OR OEM
Model Number :
JB
Certification :
UL, ETL, CE,CPR, RoHS
Place of Origin :
China
MOQ :
10 KM
Payment Terms :
T/T, L/C
Supply Ability :
1000KM / Month
Delivery Time :
25 working days
Packaging Details :
100M, 300M, Wooden Reel, Carton
Conductor :
Bare Copper, Solid
Insulation :
PVC T12(Y12)
Identification: :
Colored DIN VDE 0815
Separator :
Polyester Foil
Drain Wire :
Tinned Copper, Solid
Shield :
Aluminum/PET Foil
Description
JB-Y(St)Y | J-Y(St)Y
JB-Y(St)Y Alarm Cable PVC Insulation Jacket Durable Security Fire alarm Cable
Technical Data and Standards
Conductor: Bare Copper, Solid
Conductor standard: EN 60228 CI.1
Insulation: PVC T12(Y12)
Insulation Standard: DIN VDE 0207
Identification: Colored DIN VDE 0815
Separator: Polyester Foil
Drain Wire Tinned Copper, Solid
Shield: Aluminum/PET Foil
Out Jacket: PVC TM2(YM2)
Fire behaviour IEC 60332-1-2

※ J- Installation Cable | B-Fire alarm | Y-PVC insulation | (St)-Electrostatic Screen | Y-PVC Jacket
COMPLIANCE (Reference Standard and Certificates)
· Conductor: EN 60228 CI.1
· Insulation: EN 50363-3 | Jacket: EN50363-4-1
· Fire behaviour: IEC 60332-1-2

JB-Y(St)Y Alarm Cable PVC Insulation Jacket Durable Security Fire alarm Cable
Application Support
· These cables are designed for signal transmission in fire detection systems.
· For fixed installation on and under plaster,in dry and damp rooms
but also in the open air for fixed installation on outer walls of buildings.
Technical Data of conductor
Diameter(mm) 0,80 1,00 1,13 1,50
Section(mm²) 0,50 0,80 1,00 1,80
Cond. Resistance (ohm/km) 34,50 22,00 17,20 9,80
Cond. Loop Res.(ohm/km) 69,00 44,00 34,40 19,60
Electrical Characteristics
Peak Operating Voltage 300 V
Operating Voltage Uo 500 V
Test Voltage 800 V
Insulation Resistance ＞100M ohm/km
PHYSICAL PROPERTIES
Bend Radius(Min) 10×OD of Jacket
Operating Temperature -15 ℃ to 70 ℃
Construction
Item Inner Conductor Insulation Shield Jacket
Cores OD
(mm)		 Section
(mm²)		 OD
(mm)		 Color OD
(mm)
JBYSY0102080 1×2 0,80 0,50 1,55 R/B PET Foil
Drain Wire
AL/PET Foil		 4,30
JBYSY0104080 1×4 0,80 0,50 1,55 R/B/W/Y 5,10
JBYSY0202080 2×2 0,80 0,50 1,55 R/B/W/Y 6,50
JBYSY01020100 1×2 1,00 0,80 1,90 R/B 5,20
JBYSY0102113 1×2 1,13 1,00 45.0 R/B 5,60
JBYSY0102150 1×2 1,50 1,80 42.0 R/B 7,40
※ R:RED B:BLACK W:WHITE Y:YELLOW
※ Tolerance range for insulation and sheath diameter. Insulation: ±0,05mm | Jacket:±0,30 mm
Order Informations
Marking HELLOSIGNAL JB-Y(ST)Y N×N×N Fire alarm Cable ...300M(or Per customer's request)
Inner Package 300m/Spool(or Per customer's request)
Outer Package Carton, Pallet (or Per customer's request)
Delivery time Normally 25 days after received the deposit.
Brand HELLOSIGNAL® OR OEM
