HD70 with 2×1.00 PVC LSZH with Ce/RoHS Coax HD70+Power Combination Cable BC CCS for CCTV System Support 4K CCTV Cameras
HD70 with 2×1.00 PVC LSZH with Ce/RoHS Coax HD70+Power Combination Cable BC CCS for CCTV System Support 4K CCTV Cameras
Specifications
Brand Name :
hellosignal
Model Number :
CCTV SURVEILLANCE CABLE
Certification :
UL, CE, RoHS
Place of Origin :
China
MOQ :
30 KM
Payment Terms :
T/T, L/C
Supply Ability :
3000KM / Month
Delivery Time :
25 working days
Packaging Details :
500FT, 1000FT Wooden Reel or Spool in Box
Conductor :
Cu
Dielectric :
Foamed Polyethylene
Shield1 :
AL/Pet/Al
Shield2 :
TC 70%
Power Wire Conductor :
CU
Power wire Diameter of insulation :
PVC (Red,Black)
Jacket :
PVC Common
Description

HD70+2×1.00
75 Ohm CCTV coaxial Cable

NO.7102138
Similar Type:
Coaxial Cable Power Cores Overall OuterSheath
Catalog
No.		 Cond.Type
&Nom.D.C.R		 Dielectric Shielding&
%Coverage		 Jacket Power Wire Cond.Type Power wire
OD of
insulation		 Jacket Nom. Capacitance
HD70+2×0.50
NO.7102136 		0.70mm (SOL)Cu Foam
FEP		 1.AL/Pet/Al
2.TC-Braid 70%		 4.3mm PVC 2x
(16×0.19mm
CU)		 1.8mmPVC
(Red,Black)		 7.7×6.3mm
PVC
Common		 52 ±3 pF/m
HD70+2×0.75
NO.7102137 		0.70mm (SOL)Cu Foam
FEP		 1.AL/Pet/Al
2.TC-Braid 70%		 4.3mm PVC 2x
(24×0.19mm
CU)		 2.0mmPVC
(Red,Black)		 7.9×6.4mm
PVC
Common		 52 ±3 pF/m
Construction Parameters:
Inner Conductor 0.70mm Cu
Dielectric 2.9mm Foamed Polyethylene
Shield 1 AL/Pet/Al
Shield 2 TC 70%
Jacket 4.3mm PVC
Power Wire Conductor 2x(32×0.19mmCU )
Power wire Diameter of insulation 2.2mmPVC(Red,Black)
Jacket 8.15×6.55mm PVC Common
Application For Use in Longer CCTV Run Lengths
Electrical Characteristics:
Inner Conductor Resistance The Max. at 20℃ shall be < 64.9 Ω/km
Capacitance 52 ±3 pF/m 15.8 ±1 pF/ft
Impedance 75 ± 3 Ω
Return loss between 5 and 1000MHz: > 20dB
Velocity of Propagation 0.82
Sparker Test (VAC) 3
Mechanical and Envrionmental Properties
Cable bend radius 10 times the cable diameter
Operating Temp Range -20 ℃ to 60℃
Cable diamensions 8.15×6.55mm

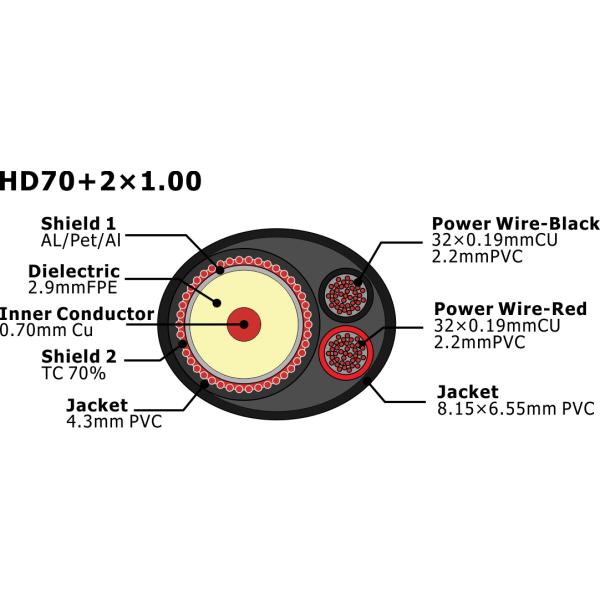

Cross Section
HD70 with 2×1.00 PVC LSZH with Ce/RoHS Coax HD70+Power Combination Cable BC CCS for CCTV System Support 4K CCTV Cameras
Attenuation(20℃):
Frequency (MHZ) Max Attenuation(dB/100ft) Max Attenuation (dB/100m)
1 1.80
5 2.80
10 3.90
50 7.90
100 11.10
200 15.10
400 21.80
700 29.80
900 34.40
1000 36.00
Order Informations:
Marking HELLOSIGNAL HD70+2×1.00
CCTV COAXIAL CABLE 7102138 ×××M/FT
Package Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet …
Delivery time Normally 25 days after received the deposit.
Brand HELLOSIGNAL® OR OEM
Similar Type:
Coaxial Cable Power Cores Overall OuterSheath
Catalog
No.		 Cond.Type
&Nom.D.C.R		 Dielectric Shielding&
%Coverage		 Jacket Power Wire Cond.Type Power wire
OD of
insulation		 Jacket Nom. Capacitance
HD70+2×0.50
NO.7102136 		0.70mm (SOL)Cu Foam
FEP		 1.AL/Pet/Al
2.TC-Braid 70%		 4.3mm PVC 2x
(16×0.19mm
CU)		 1.8mmPVC
(Red,Black)		 7.7×6.3mm
PVC
Common		 52 ±3 pF/m
HD70+2×0.75
NO.7102137 		0.70mm (SOL)Cu Foam
FEP		 1.AL/Pet/Al
2.TC-Braid 70%		 4.3mm PVC 2x
(24×0.19mm
CU)		 2.0mmPVC
(Red,Black)		 7.9×6.4mm
PVC
Common		 52 ±3 pF/m
