CFTV RFF 40+2X26 AWG Coaxial With Power Video Cable With Wire 100m CFTV Cable Coaxial
CFTV RFF 40+2X26 AWG Coaxial With Power Video Cable With Wire 100m CFTV Cable Coaxial
Specifications
Brand Name :
hellosignal
Model Number :
CCTV SURVEILLANCE CABLE
Certification :
UL, CE, RoHS
Place of Origin :
China
MOQ :
30 KM
Payment Terms :
T/T, L/C
Supply Ability :
3000KM / Month
Delivery Time :
25 working days
Packaging Details :
500FT, 1000FT Wooden Reel or Spool in Box
Conductor :
Bare Copper
Dielectric :
Yellow Solid PE
Shield :
CCA-Braid(85%)
Power Wire Conductor :
CCA
Power wire Diameter of insulation :
HDPE (Red,Black)
Jacket :
PVC
Description

CFTV RFF 40 + 2X26 AWG

75 Ohm CCTV coaxial Cable

NO.7102101
Construction Parameters:
Inner Conductor 8*0.14mm Bare Copper
Dielectric 2.40±0.05mm Yellow Solid PE
Shield 0.12mmCCA-Braid(85%)
Jacket 4.00±0.1mm PVC
Power Wire Conductor 2x( 10*0.12mmCCA )
Power wire Diameter of insulation 0.91mmHDPE (Red,Black)
Jacket 3.0mmPVC
Application For Use in Longer CATV Run Lengths
Electrical Characteristics:
Inner Conductor Resistance

The Max. at 20℃ shall be

< 136.8 Ohms/KM
Capacitance 65±2 pF/m
Impedance 75 ± 3 Ω
Return loss between 5 and 1000MHz: > 22dB
Velocity of Propagation 0.66
Sparker Test (VAC) 3
Operating Temp Range (PVC) -20 ℃ to 60℃
RoHS YES

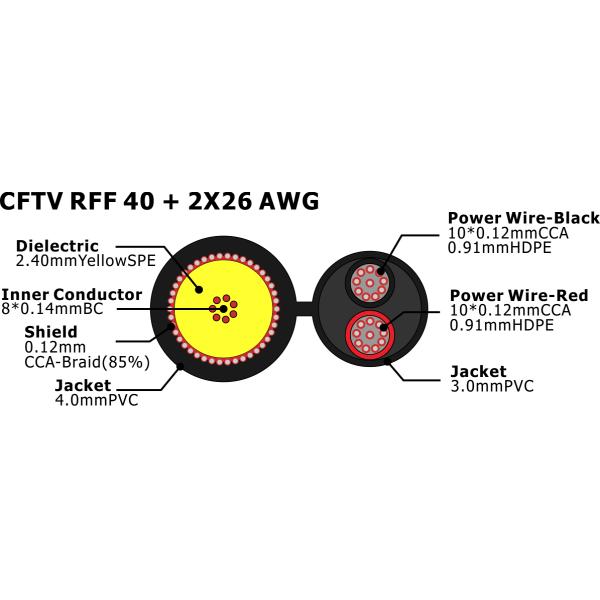

Cross Section
CFTV RFF 40+2X26 AWG Coaxial With Power Video Cable With Wire 100m CFTV Cable Coaxial
Attenuation(20℃):
Frequency (MHZ) Max Attenuation(dB/100ft) Max Attenuation (dB/100m)
1 1.93
4 3.87
7 5.13
70 16.39
100 19.65
200 27.99
300 34.47
400 39.98
500 44.88
600 49.35
700 53.48
800 57.35
900 61.00
1000 64.48
Order Informations:
Marking

HELLOSIGNAL CFTV RFF 40 + 2X26 AWG

CATV COAXIAL CABLE 7102101 ×××M/FT
Package Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet …
Delivery time Normally 25 days after received the deposit.
Brand HELLOSIGNAL®OR OEM
