Buy Wholesale China PS 565 Trunk Coax Cable 75 Ohm CATV Cable
Buy Wholesale China PS 565 Trunk Coax Cable 75 Ohm CATV Cable
Specifications
Brand Name :
Zion communication OR OEM
Model Number :
PS
Certification :
UL, ETL, CE, RoHS
Place of Origin :
China
MOQ :
30 KM
Payment Terms :
T/T, L/C
Supply Ability :
1000KM / Month
Delivery Time :
Normally 15 working days
Packaging Details :
500M, 1000M, Wooden Drum, Pallet
Inner Conductor :
0.129"/3.28mm/8AWG CCA
Dielectric :
0.519"/13.2mm Foamed PE
Shield 1 :
0.565"/14.35mm Welding Smooth Aluminum Tube
Shield Thickness :
0.023"/0.58mm
Jacket :
0.625"/15.86mm PE
Jacket Thickness :
0.030"/0.76mm
Description

Buy Wholesale China PS 565 Trunk Coax Cable 75 Ohm CATV CableTrunk Coax Cable PS 565

75 Ohm CATV coaxial Cable

NO.7100411
Construction Parameters:
Inner Conductor 0.129"/3.28mm/8AWG CCA
Dielectric 0.519"/13.2mm Foamed PE
Shield 1 0.565"/14.35mm Welding Smooth Aluminum Tube
Shield Thickness 0.023"/0.58mm
Jacket 0.625"/15.86mm PE
Jacket Thickness 0.030"/0.76mm
Application For Use in Longer CATV Run Lengths
Electrical Characteristics:
Inner Conductor Resistance The Max. at 20℃ shall be < 3.15 Ω/km
Capacitance 50 ± 3 pF/m
Impedance 75 ± 2 Ω
Return loss between 5 and 1000MHz: > 22dB
Velocity of Propagation 0.89
Sparker Test (VAC) 4
Mechanical and Envrionmental Properties
Cable bend radius 10 times the cable diameter
Operating Temp Range -20 ℃ to 60℃
Cable diamensions 0.625"/15.86mm PE

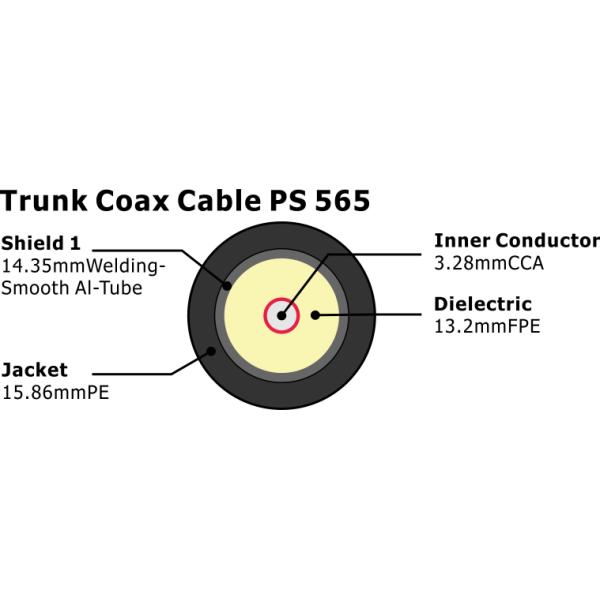

Cross Section
Buy Wholesale China PS 565 Trunk Coax Cable 75 Ohm CATV Cable
Attenuation(20℃):
Frequency (MHZ) Nominal (dB/100m) Max Attenuation (dB/100m)
5.00 0.43 0.46
55.00 1.51 1.54
83.00 1.84 1.90
211.00 2.99 3.12
250.00 3.25 3.38
300.00 3.58 3.71
350.00 3.87 4.04
400.00 4.17 4.33
450.00 4.43 4.59
500.00 4.69 4.89
550.00 4.92 5.12
600.00 5.18 5.38
750.00 5.84 6.07
865.00 6.33 6.56
1000.00 6.82 7.12
Order Informations:
Marking

HELLOSIGNAL Trunk Coax Cable PS 565

CATV COAXIAL CABLE 7100411 ×××M/FT
Package Inquired Length on wooden Spool,pallet …
Delivery time Normally 25 days after received the deposit.
Brand HELLOSIGNAL® OR OEM
