CCTV Coax Cable 12+1, Mini Coax +12×0.22 Competitive Price 75Ohm Mini Coaxial RG59+2 Composite Cable
CCTV Coax Cable 12+1, Mini Coax +12×0.22 Competitive Price 75Ohm Mini Coaxial RG59+2 Composite Cable
Specifications
Brand Name :
hellosignal
Model Number :
CCTV SURVEILLANCE CABLE
Certification :
UL, CE, RoHS
Place of Origin :
China
MOQ :
30 KM
Payment Terms :
T/T, L/C
Supply Ability :
3000KM / Month
Delivery Time :
25 working days
Packaging Details :
500FT, 1000FT Wooden Reel or Spool in Box
Conductor :
Stranded Copper
Dielectric :
Solid PE
Shield 1 :
Al-Pes Tape /CU-Pes Tape
Shield 2 :
Aluminium Braid 70%
Power Wire Conductor :
Stranded Copper
Power wire Diameter of insulation :
PVC
Jacket :
PVC Common
Description
CCTV 12+1, Mini Coax +12×0.22(NO.7102166)
Construction Parameters:
Coaxial Cable
Inner Conductor 7x0,20mm Ø Stranded Copper
Dielectric 2,50mm Ø Solid PE
Shield 1 Al-Pes Tape /CU-Pes Tape
Shield 2 Aluminium Braid 70%
Jacket 4.5mm PVC
Power Cores
Inner Conductor 12x0,22mm2 (7×0.18mm CU ) Stranded Copper
Insulation 1.0mm PVC
Overall Outer Sheath 8.0±0.2mm PVC Common RAL 7032 Grey
Electrical Characteristics:
Inner Conductor Resistance The Max. at 20℃ shall be < 64.9 Ω/km
Capacitance 52 ±3 pF/m
Impedance 75 ± 3 Ω
Velocity of Propagation 0.82
Sparker Test (VAC) 3
Mechanical and Envrionmental Properties
Cable bend radius 10 times the cable diameter
Operating Temp Range -20 ℃ to 60℃

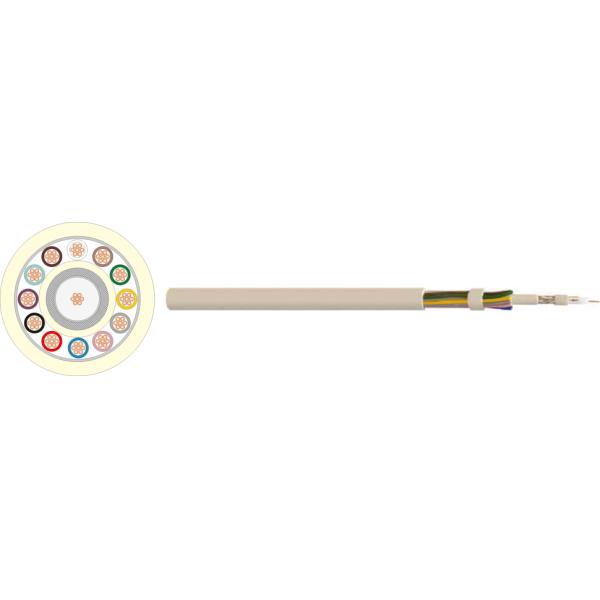

Cross Section

CCTV Coax Cable 12+1, Mini Coax +12×0.22 Competitive Price 75Ohm Mini Coaxial RG59+2 Composite Cable
Attenuation(20℃):
Frequency (MHZ) Max Attenuation (dB/100m)
1 1.80
5 3.90
10 4.80
50 11.00
100 15.20
200 21.80
400 29.80
700 34.40
900 36.00
※Note: The above transmission performance tor the 100M, 20±2℃ under the conditions tested.
Order Informations
Marking HELLOSIGNAL CCTV 12+1,MINI COAX + 12x 0,22 mm²
CCTV COAXIAL CABLE 7102166×××M
Package 100M,200M Roll, Spool
Delivery time Normally 25 days after received the deposit.
Brand HELLOSIGNAL® OR OEM
