Trunk Cable QR 715M 6AWG Conductor, Dielectric Foamed PE, PE Black CATV Coaxial Cable
Trunk Cable QR 715M 6AWG Conductor, Dielectric Foamed PE, PE Black CATV Coaxial Cable
Specifications
Brand Name :
Zion communication OR OEM
Model Number :
QR
Certification :
UL, ETL, CE, RoHS
Place of Origin :
China
MOQ :
30 KM
Payment Terms :
T/T, L/C
Supply Ability :
1000KM / Month
Delivery Time :
Normally 15 working days
Packaging Details :
500M, 1000M, Wooden Drum, Pallet
Inner Conductor :
6AWG 4.22mm CCA
Dielectric :
17.42mm Foamed PE
Outer Conductor :
18.16mm Welding Aluminum Tube
Jacket :
19.94mm PE Black
Jacket Thickness :
0.89mm
Messenger :
4.78mm Steel Wire
Description
Trunk Cable QR715M
75 Ohm CATV Coaxial Cable
NO.7100408
Construction Parameters:
Inner Conductor 6AWG 4.22mm CCA Trunk Cable QR 715M 6AWG Conductor, Dielectric Foamed PE, PE Black CATV Coaxial Cable
Dielectric 17.42mm Foamed PE
Outer Conductor 18.16mm Welding Aluminum Tube
Jacket 19.94mm PE Black
Jacket Thickness 0.89mm
Messenger 4.78mm Steel Wire
Application For Use in Longer CATV Run Lengths
Electrical Characteristics:
Inner Conductor Resistance The Max. at 20℃ shall be <1.90 Ω/km
Capacitance 50 ± 3 pF/m
Impedance 75 ± 2 Ω
Return loss between 5 and 1000MHz: > 22dB
Velocity of Propagation 87%
Sparker Test (VAC) 4
Mechanical and Environmental Properties:
Cable Bend Radius 10 times the cable diameter
Operating Temperature Range -40 ℃ to +85℃
Cable Diamensions 19.94mm PE Black

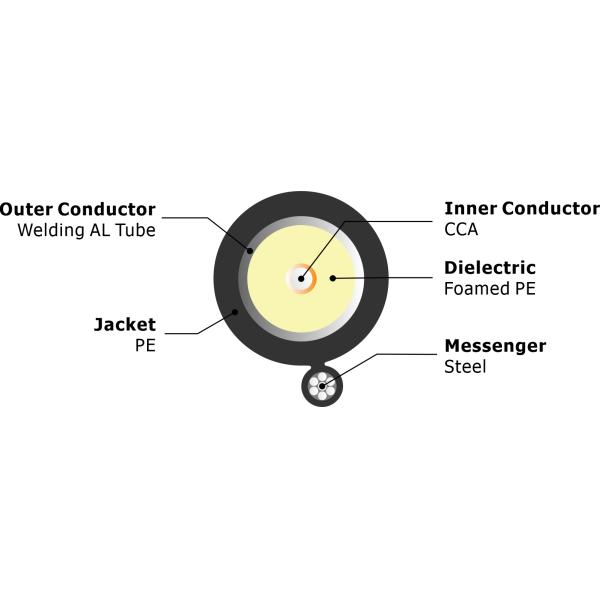

Cross Section:

Trunk Cable QR 715M 6AWG Conductor, Dielectric Foamed PE, PE Black CATV Coaxial Cable
Attenuation(20℃):
Frequency (MHZ) Max Attenuation (dB/100m)
5 0.36
55 1.18
211 2.43
250 2.66
300 2.92
350 3.18
400 3.44
450 3.67
500 3.90
550 4.10
600 4.30
750 4.89
865 5.31
1000 5.74
Order Informations:
Marking HELLOSIGNAL Trunk Cable QR715M ×××M
Package Inquired Length on Wooden Drum, Pallet …
Delivery Time Normally 25 days after received the deposit.
Brand HELLOSIGNAL® OR OEM
