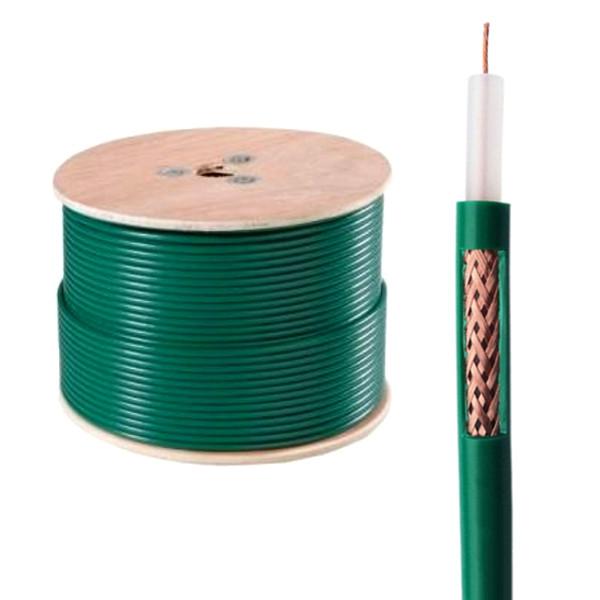

CCA 75ohm Low Loss Coaxial Cable 0.30/7.25mm Solid PE Coaxial Cable Copper Clad Aluminum(90%)
CCA 75ohm Low Loss Coaxial Cable 0.30/7.25mm Solid PE Coaxial Cable Copper Clad Aluminum(90%)
Specifications
Brand Name :
Zion communication OR OEM
Model Number :
KX Cable
Certification :
UL, ETL, CE, RoHS
Place of Origin :
China
MOQ :
30 KM
Payment Terms :
T/T, L/C
Supply Ability :
1000KM / Month
Delivery Time :
Normally 15 working days
Packaging Details :
500M, 1000M, Wooden Drum, Pallet
Inner Conductor :
7×0.016"/7×0.4mm/7×26 AWG Cu
Dielectric :
0.30"/7.25mm Solid PE
Shield :
Copper Clad Aluminum(90%)
Jacket :
10.2±0.10mm PVC
Description

CCA 75ohm Low Loss Coaxial Cable 0.30KX 8 Cu 90% CCA PVC

75 Ohm CATV coaxial Cable

NO.7100433
Construction Parameters:
Inner Conductor 7×0.016"/7×0.4mm/7×26 AWG Cu
Dielectric 0.30"/7.25mm Solid PE
Shield Copper Clad Aluminum(90%)
Jacket 10.2±0.10mm PVC
Application For Use in Longer CATV Run Lengths
Electrical Characteristics:
Inner Conductor Resistance 22.2Ω/KM at 20℃
Capacitance 67 ±3 pF/m
Impedance 75 ± 3 Ω
Return loss between 5 and 1000MHz: > 22dB
Velocity of Propagation 0.85
Sparker Test (VAC) 4
Mechanical and Envrionmental Properties
Cable bend radius 10 times the cable diameter
Operating Temp Range -20 ℃ to 70℃
Cable diamensions 6.6±0.15mm PVC
Cross Section
CCA 75ohm Low Loss Coaxial Cable 0.30
Attenuation(20℃):
Frequency (MHZ) Max Attenuation(dB/100ft) Max Attenuation (dB/100m)
10 2.90
50 4.50
100 6.60
200 10.90
400 13.80
850 23.60
950 26.80
1000 27.50
Order Informations:
Marking

HELLOSIGNAL KX 8 Cu 90% CCA PVC

CATV COAXIAL CABLE 7100433 ×××M/FT
Package Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet …
Delivery time Normally 25 days after received the deposit.
Brand HELLOSIGNAL® OR OEM
