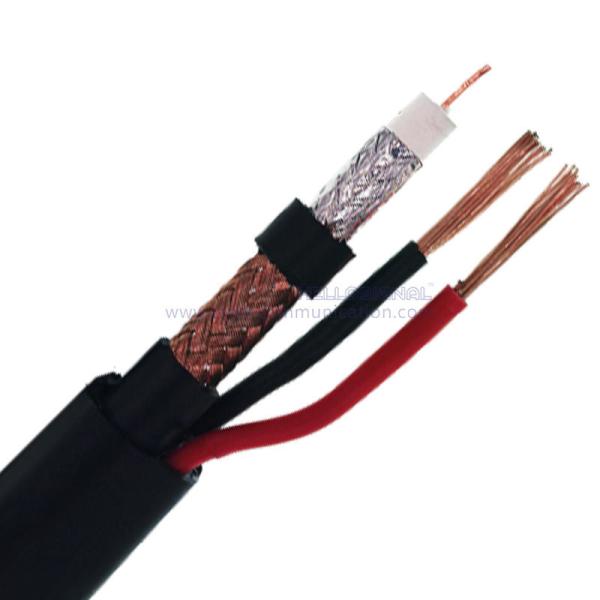

Good Quality RG59 E 50% CCA 2C 0.75MM2 CCA Common Coaxial Cable RG59 With 2 Cores Power RG59 CCTV Cable
Good Quality RG59 E 50% CCA 2C 0.75MM2 CCA Common Coaxial Cable RG59 With 2 Cores Power RG59 CCTV Cable
Specifications
Brand Name :
hellosignal
Model Number :
CCTV SURVEILLANCE CABLE
Certification :
UL, CE, RoHS
Place of Origin :
China
MOQ :
30 KM
Payment Terms :
T/T, L/C
Supply Ability :
3000KM / Month
Delivery Time :
25 working days
Packaging Details :
500FT, 1000FT Wooden Reel or Spool in Box
Conductor :
Bare Copper
Dielectric :
Solid Polyethylene
Shield :
BC-Braid(95%)
Power Wire Conductor :
BC
Power wire Diameter of insulation :
PVC(Red,Black)
Jacket :
PVC/PE/LSZH
Description

RG59 E 50% CCA + 2C0.75MM2 CCA Common

75 Ohm CCTV coaxial Cable

NO.7102042
Construction Parameters:
Inner Conductor 0.5mm Bare Copper
Dielectric 3.5mm Foamed Polyethylene
Shield 1 Al/PET-Foil
Shield 2 0.12mmCCA-Braid(50%)
Jacket 5.6mm PVC/PE/LSZH
Power Wire Conductor 2x(16*0.25mmCCA )
Power wire Diameter of insulation 2.0mmPVC (Red,Black)
Jacket 9.1×7.1mm PVC/PE/LSZH
Application For Use in Longer CCTV Run Lengths
Electrical Characteristics:
Inner Conductor Resistance 87.6 Ohms/KM at 20℃
Capacitance 69±2 pF/m
Impedance 75 ± 3 Ω
Return loss between 5 and 1000MHz: > 22dB
Velocity of Propagation 0.66
Sparker Test (VAC) 3
Mechanical and Envrionmental Properties
Cable bend radius 10 times the cable diameter
Operating Temp Range -20 ℃ to 60℃
Cable diamensions 5.6×5.05mm

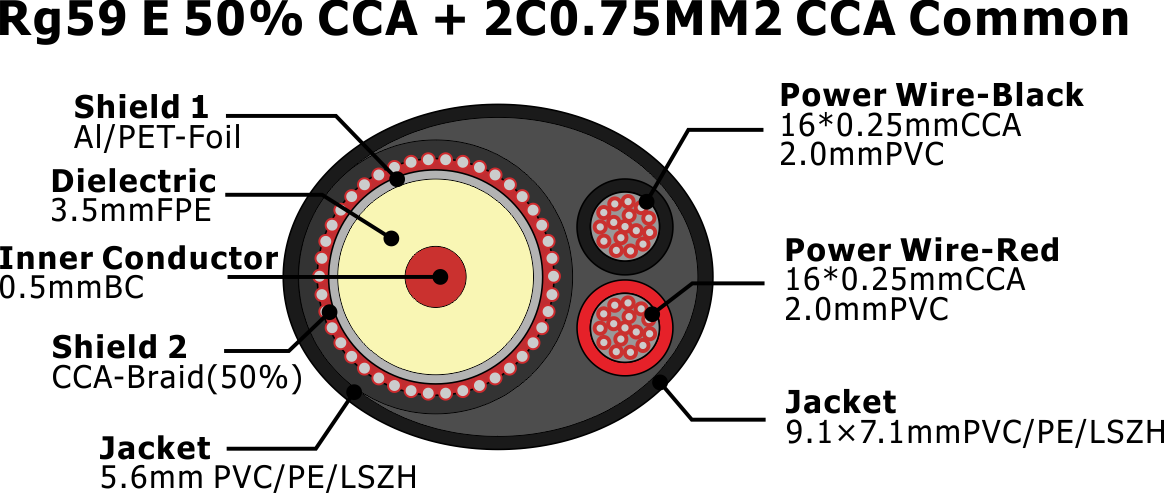

Cross Section
Good Quality RG59 E 50% CCA 2C 0.75MM2 CCA Common Coaxial Cable RG59 With 2 Cores Power RG59 CCTV Cable
Attenuation(20℃):
Frequency (MHZ) Max Attenuation(dB/100ft) Max Attenuation (dB/100m)
5 0.81 2.66
50 2.55 8.35
100 3.60 11.80
300 6.23 20.42
450 7.62 24.99
865 10.57 34.66
1000 11.36 37.26
1750 15.02 49.29
2150 16.65 54.62
2500 17.96 58.90
3000 19.67 64.52
Order Informations:
Marking HELLOSIGNAL RG59 E 50% CCA + 2C0.75MM2 CCA Common
CCTV COAXIAL CABLE 7102042 ×××M/FT
Package Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet …
Delivery time Normally 25 days after received the deposit.
Brand HELLOSIGNAL® OR OEM
