H05W-F 300V/500V European Standard Fixed Installation Cable
H05W-F 300V/500V European Standard Fixed Installation Cable
Specifications
Brand Name :
Zion communication OR OEM
Model Number :
European Standard Fixed Installation Cable H05W-F 300V/500V
Certification :
CE, RoHS, VDE, UL, CUL, LPCB
Place of Origin :
China
MOQ :
20 KM
Payment Terms :
T/T, L/C
Supply Ability :
1000KM / Month
Delivery Time :
25 working days
Packaging Details :
100M, 200M, Roll, Carton
Conductor :
flexible ultra-fine stranded copper wire
Insulation :
flexible oil and heat resistant PVC
Color :
Two core:black,white
Jacket :
flexble heat reslatant PVC mlxture
Produet reference standard :
EN50525
Description
European Standard Fixed Installation Cable H05W-F 300V/500V
▉ Application
This cable is used as control and connecting cables for electrical equipment.It apply to
machine tool and complete sets of equipment for fixed installation.
▉ Cable Construction
Conductors: flexible ultra-fine stranded copper wire
Insulation:flexible oil and heat resistant PVC
Insulation color Two core:black,white
Three core:black,white,red
Four core:black,white,red,green
Five core:black,white,red,green,brown
Jacket:flexible heat resistant PVC mixture
Produet reference standard:EN50525
▉ Product Feature
Good performance of flame retardant
Flame retardant according to IEC60332-1
▉ Technical data
Temperature Range Bend: -5℃~＋70℃
Static : -15℃~＋70℃
Rated Voltage H03VV-F 300/300V
H05VV-F 300/500V
Test Voltage H03VV-F AC 2000V/5min;
H05VV-F AC 2000V/5min;
Insulation resistance 20℃ ≥10MΩ/km
Min bending radius
Fixed 7.5D(D=cable diameter)

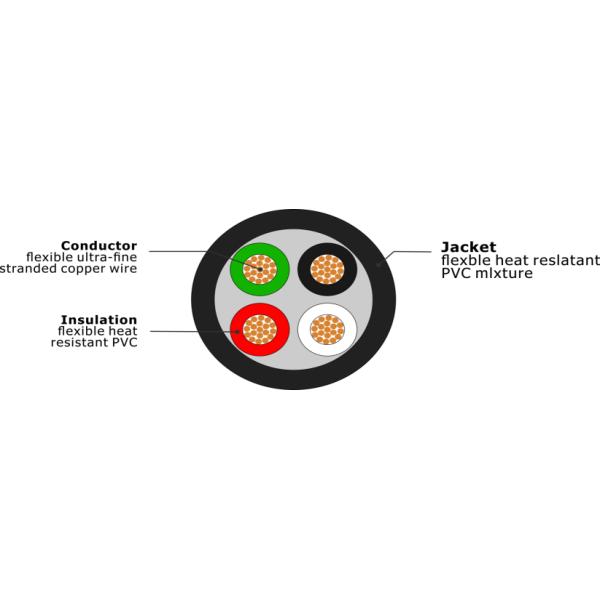

▉ Cross Section
H05W-F 300V/500V European Standard Fixed Installation Cable
▉ Product List
Item No. Number cross-section mm² Copper conductor plain wires (Ohm/km) Copper conductor tinned wires (Ohm/km)
Class 1 and 2 Class5 and 6 Class 1 and 2 Class5 and 6
7144500 0.05 - ~380 - ~392
7144501 0.08 - ~237 - 244
7144502 0.11 - ~170 - ~175
7144503 0.13 - ~150 - ~155
7144504 0.14 - ~134 - ~138
7144505 0.22 - ~96 - ~99
7144506 0.25 - ~76 - ~79
7144507 0.34 - ~53 - ~56
7144508 0.50 36.000 39 36.7 40.1
7144509 0.75 24.500 26 24.8 26.7
7144510 1.00 18.100 19.5 18.2 20
7144511 1.50 12.100 13.3 12.2 13.7
7144512 2.50 7.410 7.98 7.56 8.21
7144513 4.00 4.610 4.95 4.7 5.09
7144514 6.00 3.080 3.3 3.11 3.39
7144515 10.00 1.830 1.91 1.84 1.95
7144516 16.00 1.150 1.21 1.16 1.24
7144517 25.00 0.727 0.78 0.734 0.795
7144518 35.00 0.524 0.554 0.529 0.565
7144519 50.00 0.387 0.386 0.391 0.393
7144520 70.00 0.268 0.272 0.27 0.277
7144521 95.00 0.193 0.206 0.195 0.21
7144522 120.00 0.153 0.161 0.154 0.164
7144523 150.00 0.124 0.129 0.126 0.132
7144524 185.00 0.0991 0.106 0.1 0.108
7144525 240.00 0.0754 0.0801 0.0762 0.0817
▉ Order Informations
Marking HELLOSIGNAL European Standard Fixed
Installation Cable H05W-F 300V/500V XXXFT/M
Package 100M/Reel, 300M/Wooden Spool
Delivery time Normally 25 days after received the deposit.
Brand HELLOSIGNAL® OR OEM
