GPT Automotive Cable
GPT Automotive Cable
Specifications
Brand Name :
Zion communication OR OEM
Model Number :
Automotive Cable
Certification :
CE, RoHS, VDE, UL, CUL, LPCB
Place of Origin :
China
MOQ :
20 KM
Payment Terms :
T/T, L/C
Supply Ability :
1000KM / Month
Delivery Time :
25 working days
Packaging Details :
100M, 200M, Roll, Carton
Conductor :
Soft-annealed copper according to ASTM B3
Insulation :
PVC
Standard Compliance :
SAE J1128
Technical Parameters :
Operating temperature:–40 °C to +80 °C
Description

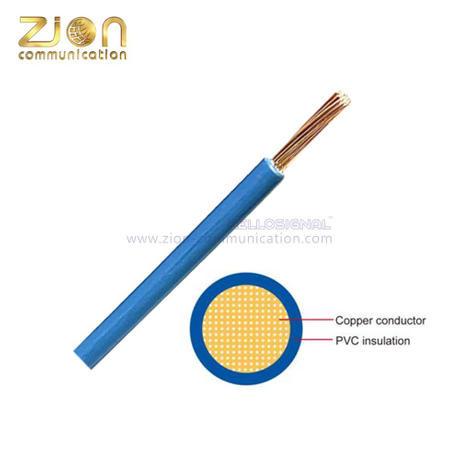

GPT Automotive Cable
Product Description:

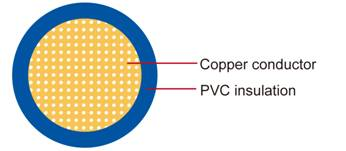

Conductor Soft-annealed copper according to ASTM B3
Insulation PVC
Standard Compliance SAE J1128
Technical Parameters Operating temperature:–40 °C to +80 °C
Application:
Automotive PVC insulated single-core cable is used in automotive applications for general circuit wiring and automotive or marine applications where 105°C is required.

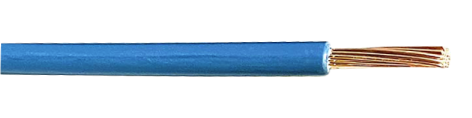

GPT Automotive CableGPT Automotive Cable
Zion's Hot Types of GPT Automotive cable
Type Conductor Insulation Cable
SIZE Nominal
cross-
section		 No. and
Dia. of Wires		 Diameter
Max.		 Thickness
wall min.		 Thickness
wall Nom.		 Overall
Diameter max.		 Weight
approx.
AWG mm2 No./mm mm mm mm mm Kg/km
22* 1 x 10.35 7/0.25 0.76 - 0.58 2.10 7.0
20 1 x 0.50 7/0.32 0.97 0.41 0.58 2.40 10.0
18 1 x 0.80 16/0.25 1.17 0.41 0.58 2.50 12.0
18 1 x 0.80 19/0.23 1.17 0.41 0.58 2.50 12.0
16 1 x 1.00 19/0.28 1.45 0.41 0.58 2.90 17.0
14 1 x 2.00 19/0.36 1.8 0.41 0.58 3.20 25.0
12 1x 3.00 19/0.45 2.29 0.46 0.66 3.80 38.0
10 1 x 5.00 19/0.57 2.87 0.55 0.79 4.70 59.0
8** 1 x 8.00 19/0.724 3.26 0.66 0.94 6.00 96.0
*for Ford ESF M1L56-A Applications only
** For SAE J1128 and UTMS applications only
Note: Other configurations, sizes, colors and length not specified herein are available upon request.
