WXC Automotive Cable
WXC Automotive Cable
Specifications
Brand Name :
Zion communication OR OEM
Model Number :
Automotive Cable
Certification :
CE, RoHS, VDE, UL, CUL, LPCB
Place of Origin :
China
MOQ :
20 KM
Payment Terms :
T/T, L/C
Supply Ability :
1000KM / Month
Delivery Time :
25 working days
Packaging Details :
100M, 200M, Roll, Carton
Conductor :
Soft-annealed copper according to ASTM B
Insulation :
XLPE Ultra-Thin wall flame-retardant,halogen-free
Standard Compliance :
SAE J1678
Special properties :
Flexible
Technical Parameters :
–40°C to +125°C
Description

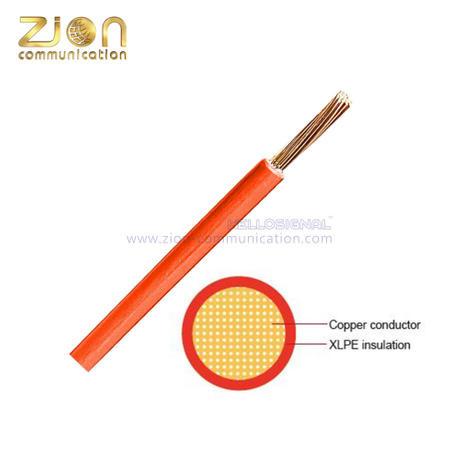

WXC Automotive Cable
Product Description:
Conductor Soft-annealed copper according to ASTM B
Insulation XLPE Ultra-Thin wall flame-retardant,halogen-free
Standard Compliance SAE J1678
Special properties Flexible
Technical Parameters –40°C to +125°C
Application:
This XLPE insulated low-voltage cable is designed for used at nominal voltage of 60v dc (60V AC rms) or surface vehicles electrical systems.
WXC Automotive CableWXC Automotive Cable
Zion's Hot Types of WXC Automotive cable
Type Conductor Insulation Cable
SIZE Nominal
cross-
section		 No. and
Dia. of Wires		 Diameter of
Conductor max.		 Nominal thickness Overall
Diameter Max.		 Weight
approx.
AWG mm2 No./mm mm mm mm Kg/km
22 1x0.35 7/0.25 0.76 0.2 1.4 4.0
20 1x0.50 7/0.32 0.97 0.2 1.6 7.0
18 1x0.80 19/0.23 1.17 0.2 1.8 8.0
16 1x1.3 19/0.28 1.45 0.2 2.0 12.0
14 1x2 19/0.36 1.8 0.2 2.4 19.0
12 1x3 19/0.45 2.3 0.24 3.0 30.0
* Note: Other configurations, sizes, colors and length not specified herein are available upon request.
