GXL Automotive Cable
GXL Automotive Cable
Specifications
Brand Name :
Zion communication OR OEM
Model Number :
Automotive Cable
Certification :
CE, RoHS, VDE, UL, CUL, LPCB
Place of Origin :
China
MOQ :
20 KM
Payment Terms :
T/T, L/C
Supply Ability :
1000KM / Month
Delivery Time :
25 working days
Packaging Details :
100M, 200M, Roll, Carton
Conductor :
Soft-annealed copper according to ASTM B3
Insulation :
XLPE (Polyethylene crosslinked)
Standard Compliance :
SAE J1128
Technical Parameters :
Operating temperature:–40 °C to +125 °C
Description

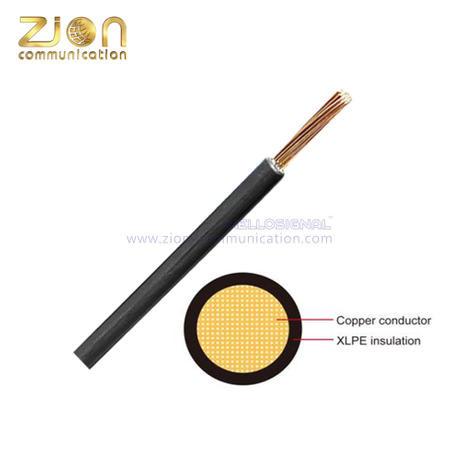

GXL Automotive Cable
Product Description:
Conductor Soft-annealed copper according to ASTM B3
Insulation XLPE (Polyethylene crosslinked)
Standard Compliance SAE J1128
Technical Parameters Operating temperature:–40 °C to +125 °C
Application:
Automotive XLPE insulated single-core cable is used in automotive applications where higher heat resistance and small diameter is required.
GXL Automotive CableGXL Automotive Cable
Zion's Hot Types of GXL Automotive cable
Type Conductor Insulation Cable
SIZE Nominal
cross-
section		 No. and
Dia. of Wires		 Diameter
Max.		 Thickness
wall min.		 Thickness
wall Nom.		 Overall
Diameter max.		 Weight
approx.
AWG mm2 No./mm mm mm mm mm Kg/km
20 1 x 0.50 19/0.20 0.97 0.41 0.58 2.40 9.0
18 1 x 0.80 19/0.23 1.17 0.41 0.58 2.50 12.0
18 1 x 0.80 16/0.25 1.17 0.41 0.58 2.50 12.0
16 1 x 1.00 19/0.24 1.45 0.41 0.58 2.90 17.0
14 1 x 2.00 19/0.36 1.8 0.41 0.58 3.20 25.0
12 1 x 3.00 19/0.45 2.29 0.46 0.66 3.80 38.0
10 1 x 5.00 19/0.57 2.87 0.56 0.79 4.70 58.0
Note: Other configurations, sizes, colors and length not specified herein are available upon request.
