HDT Automotive Cable
HDT Automotive Cable
Specifications
Brand Name :
Zion communication OR OEM
Model Number :
Automotive Cable
Certification :
CE, RoHS, VDE, UL, CUL, LPCB
Place of Origin :
China
MOQ :
20 KM
Payment Terms :
T/T, L/C
Supply Ability :
1000KM / Month
Delivery Time :
25 working days
Packaging Details :
100M, 200M, Roll, Carton
Conductor :
Soft-annealed copper according to ASTM B3
Insulation :
PVC
Standard Compliance :
SAE J1128
Technical Parameters :
Operating temperature:–40 °C to +85 °C
Description

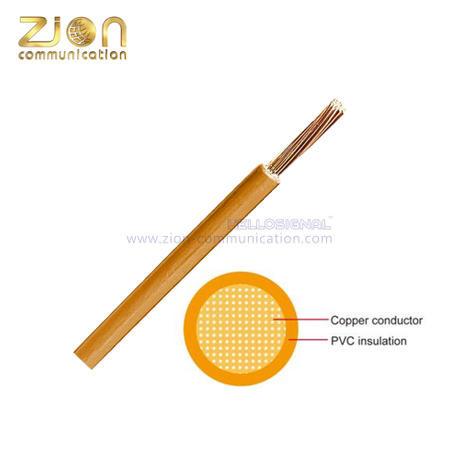

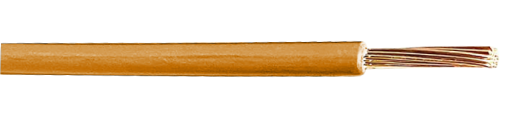

HDT Automotive Cable
Product Description:

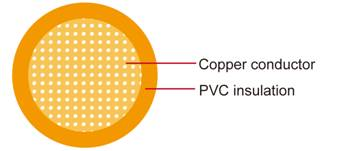

Conductor Soft-annealed copper according to ASTM B3
Insulation PVC
Standard Compliance SAE J1128
Technical Parameters Operating temperature:–40 °C to +85 °C
Application:
Automotive PVC insulated single-core cable is used for automobiles, motorcycles and other motor vehicles.
HDT Automotive CableHDT Automotive Cable
Zion's Hot Types of HDT Automotive cable
Type Conductor Insulation Cable
SIZE Nominal
cross-
section		 No. and
Dia. of Wires		 Diameter
Max.		 Thickness
wall Nom.		 Overall
Diameter max.		 Weight
approx.
AWG mm2 No./mm mm mm mm Kg/km
20 1 x 0.50 7.31 1 0.91 2.80 14.0
18 1 x 0.80 16.26 1.5 0.94 3.00 20.0
16 1 x 1.00 19.29 1.5 1.02 3.50 25.0
14 1 x 2.00 19.36 1.8 1.04 3.90 33.0
12 1 x 3.00 19.45 2.3 1.17 4.60 49.0
10 1 x 5.00 19.57 3 1.17 5.30 71.0
8 1 x 8.00 49.45 3.7 1.4 6.50 98.0
Note: Other configurations, sizes, colors and length not specified herein are available upon request.
