FLYK Automotive Cable
FLYK Automotive Cable
Specifications
Brand Name :
Zion communication OR OEM
Model Number :
Automotive Cable
Certification :
CE, RoHS, VDE, UL, CUL, LPCB
Place of Origin :
China
MOQ :
20 KM
Payment Terms :
T/T, L/C
Supply Ability :
1000KM / Month
Delivery Time :
25 working days
Packaging Details :
100M, 200M, Roll, Carton
Conductor :
Cu-ETP1 bare according to DIN EN 13602
Insulation :
PVC insulation(Cold resistant)
Standard Compliance :
ISO 6722 Class B
Special properties :
Cold bending test according to ISO 6722 at –50 °C. Short-term and long-term ageing according to ISO 6722, Class B.
Technical Parameters :
Operating temperature:–50°C to +105°C
Description

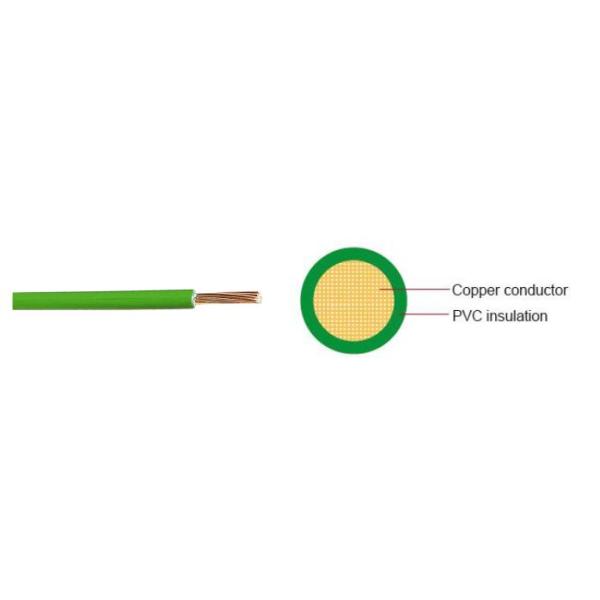

FLYK Automotive Cable
Product Description:
Conductor Cu-ETP1 bare according to DIN EN 13602
Insulation PVC insulation(Cold resistant)
Standard Compliance ISO 6722 Class B
Special properties Cold bending test according to ISO 6722 at –50 °C. Short-term and long-term ageing according to ISO 6722, Class B.
Technical Parameters Operating temperature:–50°C to +105°C
Application:
This PVC insulated automotive cable is used for cars, trucks and other vehicles.
FLYK Automotive Cable
Zion's Hot Types of FLYK Automotive cable
Conductor Construction Insulation Cable
Nominal
cross-
section		 No. and
Dia. of Wires		 Diameter of Conductor max. Electrical
resistance at 20°C max.		 Nominal thickness Overall Diameter Min. Overall
Diameter max.		 Weight
approx.
mm2 No./mm mm mΩ/m mm mm mm Kg/km
1x0.50 28 /0.16 1.10 37.70 0.60 2.00 2.30 9.00
1x0.75 42/0.16 1.30 25.10 0.60 2.20 2.50 12.00
1x1.00 57/0.16 1.50 18.80 0.60 2.40 2.70 15.00
1x1.50 84/0.16 1.80 12.70 0.60 2.70 3.00 20.00
1x2.50 140/0.16 2.30 7.54 0.70 3.50 3.90 32.00
Conductor Construction Insulation Cable
Nominal
cross-
section		 No. and
Dia. of Wires		 Diameter of Conductor max. Electrical
resistance at 20°C max.		 Nominal thickness Overall Diameter Min. Overall
Diameter max.		 Weight
approx.
mm2 No./mm mm mΩ/m mm mm mm Kg/km
1x4.00 196/0.16 3.30 4.71 0.80 4.50 4.90 53.00
1x4.5 84/0.16 1.80 12.70 0.60 2.70 3.00 23.00
1x6.00 294/0.16 4.20 3.14 0.80 5.30 6.00 76.00
1x10.00 455/0.16 5.20 1.85 1.00 6.70 7.30 124.00
1x16.00 490/0.21 6.70 1.16 1.00 8.20 8.80 198.00
1x25.00 798/0.21 8.00 0.74 1.20 9.90 10.50 298.00
Note: Other configurations, sizes, colors and length not specified herein are available upon request.
