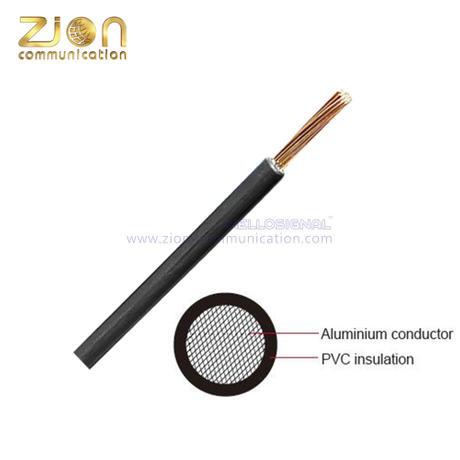

FLALRY Automotive Cable
FLALRY Automotive Cable
Specifications
Brand Name :
Zion communication OR OEM
Model Number :
Automotive Cable
Certification :
CE, RoHS, VDE, UL, CUL, LPCB
Place of Origin :
China
MOQ :
20 KM
Payment Terms :
T/T, L/C
Supply Ability :
1000KM / Month
Delivery Time :
25 working days
Packaging Details :
100M, 200M, Roll, Carton
Conductor :
Aluminium 99.7%≥1.25 mm2
Insulation :
PVC
Standard Compliance :
ISO 6722 Class B
Special properties :
Cables with cross-sections > 10 mm2 can be used as battery cables Considerable weight savings compared to copper
Technical Parameters :
Operating temperature:–40°C to +105°C
Description
FLALRY Automotive Cable
Product Description:
Conductor Aluminium 99.7%≥1.25 mm2
Aluminium alloy < 1.25 mm2
Insulation PVC
Standard Compliance ISO 6722 Class B
Special properties Cables with cross-sections > 10 mm2 can be used as battery cables Considerable weight savings compared to copper
Technical Parameters Operating temperature:–40°C to +105°C
Application:
This PVC insulated automotive cable is designed for telecommunication overhead contract line and electronics.

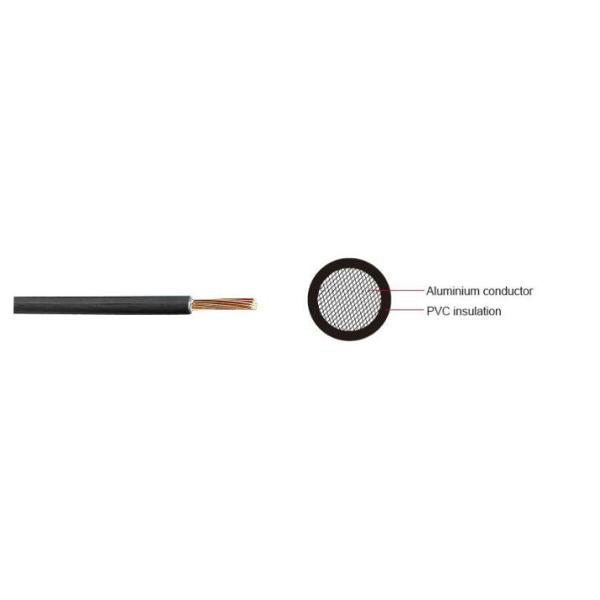

FLALRY Automotive Cable
Zion's Hot Types of FLALRY Automotive cable
Conductor Construction Insulation Cable
Nominal
cross-
section		 No. and
Dia. of Wires		 Diameter of Conductor max. Electrical
resistance at 20°C max.		 Nominal thickness Overall Diameter Min. Overall
Diameter max.		 Weight
approx.
mm2 No./mm mm mΩ/m mm mm mm Kg/km
1x075 11/0.3 1.30 43.60 0.24 1.70 1.90 4.00
1x1.00 16/0.29 1.50 32.70 0.24 1.90 2.10 5.00
1x1.25 16/0.32 1.70 24.80 0.24 2.10 2.30 6.00
1x1.50 16/0.35 1.80 21.20 0.24 2.20 2.40 7.00
1x2.0 15/0.42 2.00 15.70 0.28 2.50 2.80 9.00
1x2.5 19/0.43 2.20 12.70 0.28 2.70 3.00 12.00
1x3.0 23/0.42 2.40 10.20 0.32 3.10 3.40 14.00
1x4.0 30/0.42 2.80 7.85 0.32 3.40 3.70 17.00
1x5.0 36/0.42 3.10 6.57 0.32 3.90 4.20 19.00
1x6.0 45/0.42 3.40 5.23 0.32 4.00 4.30 23.00
1x8.0 59/0.42 4.30 3.97 0.32 4.60 5.00 29.00
1x10.0 50/0.52 4.50 3.03 0.48 5.30 6.00 43.00
1x12.0 60/0.52 5.40 2.53 0.48 5.80 6.50 50.00
1x16.0 78/0.52 5.80 1.93 0.52 6.40 7.20 63.00
Note: Other configurations, sizes, colors and length not specified herein are available upon request.
