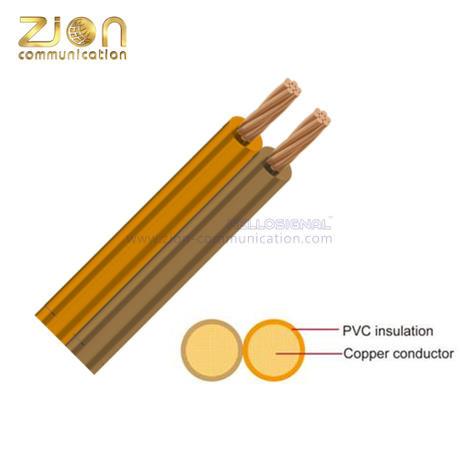

FLYZ Automotive Cable
FLYZ Automotive Cable
Specifications
Brand Name :
Zion communication OR OEM
Model Number :
Automotive Cable
Certification :
CE, RoHS, VDE, UL, CUL, LPCB
Place of Origin :
China
MOQ :
20 KM
Payment Terms :
T/T, L/C
Supply Ability :
1000KM / Month
Delivery Time :
25 working days
Packaging Details :
100M, 200M, Roll, Carton
Conductor :
Cu-ETP1 bare according to DIN EN 13602
Insulation :
PVC
Standard Compliance :
ISO 6722 Class B
Technical Parameters :
Operating temperature:–40°C to + 105°C
Description
FLYZ Automotive Cable
Product Description:
Conductor Cu-ETP1 bare according to DIN EN13602
Insulation PVC
Standard Compliance ISO 6722 Class B
Technical Parameters Operating temperature:–40 °C to +105 °C
Application:
Automotive PVC insulated multi-cores cable is used in internal wiring in automobile where high flexibility, thermo and mechanical strength are required
FLYZ Automotive Cable
Zion's Hot Types of FLYZ Automotive cable
Conductor Insulation Cable
Nominal
cross-
section		 No. and Dia. of Wires Diameter
Max.		 Electrical resistance at 20°C max. Thickness
wall Nom.		 Diameter of Core Diameter Width Diameter Height Weight approx.
mm2 No./mm mm mΩ/m mm mm mm mm Kg/km
2 x0.50 16 /0.21 1.00 37.10 0.50 2.10 4.40±0.20 2.10±0.15 20.00
2 x0.75 24 /0.21 1.20 24.70 0.60 2.35 4.70±0.30 2.35±0.15 23.00
2 x1.00 32/0.20 1.50 19.50 0.60 2.55 5.10±0.30 2.50±0.15 32.00
2 x1.50 48 /0.26 1.70 12.70 0.60 2.80 5.60±0.30 2.80±0.15 39.00
Note: Other configurations, sizes, colors and length not specified herein are available upon request.
