PVC Insulation CAVS Automotive Cable JASO D 611-94
PVC Insulation CAVS Automotive Cable JASO D 611-94
Specifications
Brand Name :
Zion communication OR OEM
Model Number :
Automotive Cable
Certification :
CE, RoHS, VDE, UL, CUL, LPCB
Place of Origin :
China
MOQ :
20 KM
Payment Terms :
T/T, L/C
Supply Ability :
1000KM / Month
Delivery Time :
25 working days
Packaging Details :
100M, 200M, Roll, Carton
Conductor :
Cu-ETP1 or bare according to DIN EN 13602
Insulation :
PVC
Standard Compliance :
JASO D 611-94
Technical Parameters :
Operating temperature:–40 °C to +80 °C
Description
CAVS Automotive Cable
Product Description:
Conductor Cu-ETP1 according to JIS C 3102
Insulation PVC
Standard Compliance JASO D 611-94
Technical Parameters Operating temperature:–40°C to +80 °C
Application:
Automotive PVC insulated single-core low tension cable is used for automotive wiring.

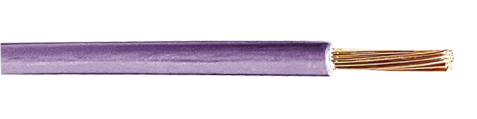

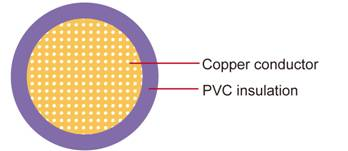

PVC Insulation CAVS Automotive Cable JASO D 611-94PVC Insulation CAVS Automotive Cable JASO D 611-94
Zion's Hot Types of CAVS Automotive cable
Conductor Insulation Cable
Nominal
cross-
section		 No. and
Dia. of Wires		 Diameter max. Electrical
resistance at 20°C max.		 Thickness Wallnom. Overall Diameter Min. Overall
Diameter max.		 Weight
approx.
mm2 No./mm mm mΩ/m mm mm mm Kg/km
1 x0.30 7/0.26 0.70 50.20 0.35 1.40 1.50 3.00
1 x0.50 7/0.32 0.90 32.70 0.35 1.60 1.70 5.00
1 x0.85 11/0.32 1.10 20.80 0.35 1.80 1.90 7.00
1 x1.25 16/0.32 1.40 14.30 0.35 2.10 2.20 10.00
Note: Other configurations, sizes, colors and length not specified herein are available upon request.
