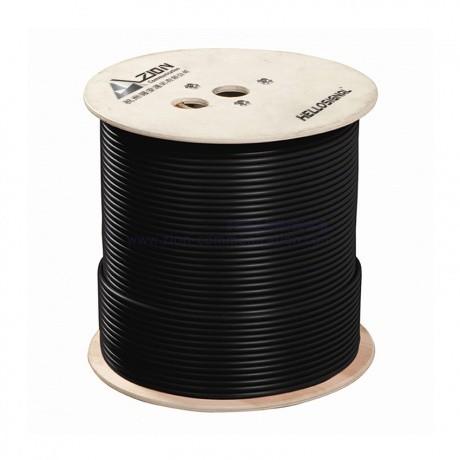

PK75-2-122 BC 45% BC PE 75 Ohm Coaxial Cable In Russia Black Color Jacket
PK75-2-122 BC 45% BC PE 75 Ohm Coaxial Cable In Russia Black Color Jacket
PK75-2-122 BC 45% BC PE 75 Ohm Coaxial Cable In Russia Black Color Jacket
PK75-2-122 BC 45% BC PE 75 Ohm Coaxial Cable In Russia Black Color Jacket
PK75-2-122 BC 45% BC PE 75 Ohm Coaxial Cable In Russia Black Color Jacket
PK75-2-122 BC 45% BC PE 75 Ohm Coaxial Cable In Russia Black Color Jacket
PK75-2-122 BC 45% BC PE 75 Ohm Coaxial Cable In Russia Black Color Jacket
PK75-2-122 BC 45% BC PE 75 Ohm Coaxial Cable In Russia Black Color Jacket
Specifications
Brand Name :
hellosignal
Model Number :
PK75
Certification :
UL, ETL, CE,CPR, RoHS
Place of Origin :
CHINA
MOQ :
30 KM
Price :
HANGZHOU ZION COMMUNICATION CO.,LTD
Payment Terms :
T/T, L/C, D/P
Supply Ability :
3000KM / Month
Delivery Time :
Normally 25 working days
Packaging Details :
pull box, wooden spool, carton, pallet
Conductor :
BC
Dielectric :
Solid PE
Shield :
Copper clad aluminum
Jacket :
PVC
Description

CCTV CABLE PRODUCTS CATEGORY

https://www.zion-communication.com/cctv-coaxial-cable-products-catalog.html

PK75-2-122 BC 45% BC PE

75 Ohm CCTV coaxial Cable

NO.7100314
Construction Parameters:
Inner Conductor 0.014"/0.37mm/28 AWG BC
Dielectric 0.144"/2.2mm Solid PE
Shield 1 Al/PET
Shield 2 Copper braid wire 45% coverage
Jacket 0.130"±0.006"/3.30±0.30mm PE
Jacket Thickness 0.032"/0.81mm
Application For Use in Longer CCTV Run Lengths
Electrical Characteristics:
Inner Conductor Resistance The Max. at 20℃​ shall be < 168.2 Ω/km
Capacitance 68±1 pF/m
Impedance 75±5 Ω
Return loss 20dB
Velocity of Propagation
Sparker Test (VAC)
Mechanical and Envrionmental Properties
Cable bend radius 10 times the cable diameter
Operating Temp Range -20 ℃​ to 60℃​ / -40 ℃​ to 80℃​
Cable diamensions 0.130"±0.006"/3.30±0.30mm PE

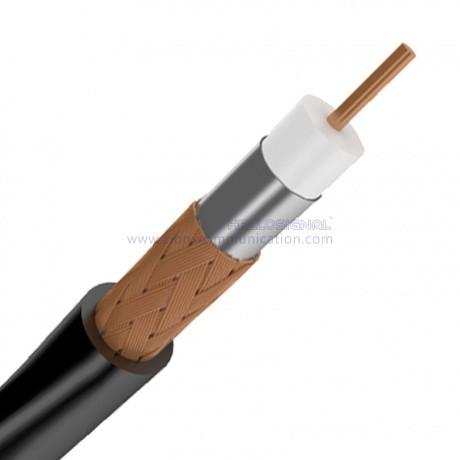

Cross Section
PK75-2-122 BC 45% BC PE 75 Ohm Coaxial Cable In Russia Black Color Jacket
Attenuation(20℃):
Frequency (MHZ) Max Attenuation(dB/100m)
10 6.40
50 12.70
200 24.00
470 37.60
862 52.10
1000 56.70
1350 65.60
1750 76.80
2150 85.80
2400 97.90
Order Informations:
Marking

HELLOSIGNAL PK75-2-122 BC 45% CCA PE

CCTV COAXIAL CABLE 7100314 ×××M/FT
Package Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet …
Delivery time Normally 25 days after received the deposit.
Brand HELLOSIGNAL® OR OEM
