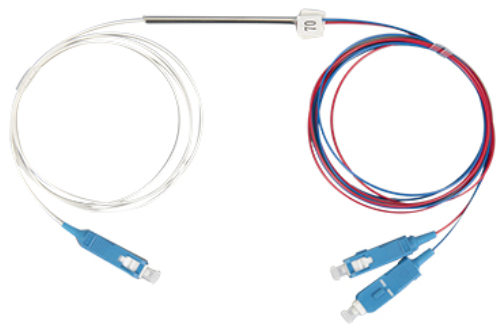

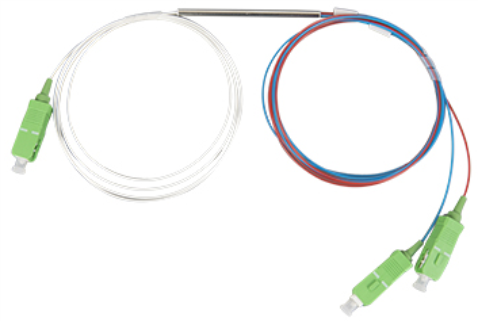

FBT Fiber Splitter SC/APC Mini Tube with 1x4/1x8/1x16/1x32 Single Mode/Multimode for Optical Fiber Systems
FBT Fiber Splitter SC/APC Mini Tube with 1x4/1x8/1x16/1x32 Single Mode/Multimode for Optical Fiber Systems
FBT Fiber Splitter SC/APC Mini Tube with 1x4/1x8/1x16/1x32 Single Mode/Multimode for Optical Fiber Systems
FBT Fiber Splitter SC/APC Mini Tube with 1x4/1x8/1x16/1x32 Single Mode/Multimode for Optical Fiber Systems
FBT Fiber Splitter SC/APC Mini Tube with 1x4/1x8/1x16/1x32 Single Mode/Multimode for Optical Fiber Systems
FBT Fiber Splitter SC/APC Mini Tube with 1x4/1x8/1x16/1x32 Single Mode/Multimode for Optical Fiber Systems
Specifications
Brand Name :
Zion communication OR OEM
Model Number :
Optical Splitter
Certification :
ISO, CE, RoHS, UL
Place of Origin :
CHINA
MOQ :
1,000 PCS
Payment Terms :
T/T,L/C
Supply Ability :
30,000 PCS / Month
Delivery Time :
Normally 10 workingdays
Packaging Details :
1 PC/Plastic Bag, PCS/Carton
Model :
FBT Splitter
Bnad :
HELLOSIGNAL
Cord :
Mini Tube
Connector :
SC/FC/LC/ST, APC/UPC
Description

Fiber Optic Splitter

1*4/1*8/1*16/1*32 Single Mode/Multimode with SC LC FC ST/APC UPC connectors FBT/PLC OPTIC SPLITTER

Inquire Now
FBT Fiber Splitter SC/APC Mini Tube with 1x4/1x8/1x16/1x32 Single Mode/Multimode for Optical Fiber Systems

Optical Fiber Splitter — FBT Splitter

FBT Fiber Splitter SC/APC Mini Tube with 1x4/1x8/1x16/1x32 Single Mode/Multimode for Optical Fiber Systems

FBT Fiber Splitter SC/APC Mini Tube with 1x4/1x8/1x16/1x32 Single Mode/Multimode for Optical Fiber Systems
SC/APC Mini Tube FBT Splitter SC/APC Mini Tube FBT Splitter

FBT Fiber Splitter SC/APC Mini Tube with 1x4/1x8/1x16/1x32 Single Mode/Multimode for Optical Fiber Systems

SC/APC Mini Tube FBT Splitter
Structure information
Parameter 1x2 1x4 1x8 1x16 1x32 1x64 2x4 2x8 2x16 2x32 2x64
Operation Wavelength 1260nm~1650nm
L max(dB) ≤3.8 ≤7.5 ≤10.5 ≤13.6 ≤17.0 ≤20.2 ≤4.4 ≤11.0 ≤14.3 ≤17.5 ≤21.2
IL Uniformity(dB) ≤0.6 ≤0.6 ≤1.0 ≤1.0 ≤1.3 ≤1.8 ≤0.8 ≤1.0 ≤1.5 ≤1.8 ≤3.0
PDL(dB) . ≤0.2 ≤0.2 ≤0.3 ≤0.3 ≤0.3 ≤0.3 ≤0.3 ≤0.3 ≤0.3 ≤0.3 ≤0.4
Return Loss[dB) ≥55
Directivit(dB) ≥55
Storage
Temperature(℃)		 -40~85
Operation
Temperature(℃)		 -40~85

Technical Specifcation
Code Splitter
Configuration 0102 0104 0108 0116 0132 0164 0204 0208 0216 0232 0264
1x2 1x4 1x8 1x16 1x32 1x64 2x4 2x8 2x16 2x32 2x64
Connector Type SC LC FC ST
Ferrule Type UPC APC
Fiber Type SM OM1 OM2 OM3 OM4
Splitter Type T C M
TubeType Cassette Type Module Type
Jacket Material PVC LSZH
Color Yellow Blue Black Orange Aqua Purple Customized
Diameter (mm) 0.9 2.0 3.0 ····
Cable
Length(cm)		 Input 50 70 100 150 ····
Output 50 70 100 150 ····
