Specifications
Brand Name :
Zion communication OR OEM
Model Number :
Data Center Equipment
Certification :
ISO, CE, RoHS, UL
Place of Origin :
CHINA
MOQ :
1,000 PCS
Payment Terms :
T/T, L/C
Supply Ability :
30,000 PCS / Month
Delivery Time :
Normally 10 workingdays
Packaging Details :
1 PC/Plastic Bag, PCS/Carton
Model :
Server Rack Cabinet
Bnad :
Zion Communication
Cord :
ZCIDC-07
Capacity :
18U,22U,27U,32U,37U, 42U,47U
Depth :
800mm, 900mm and 1000mm
Description

More detail please visit:

https://www.zion-communication.com/Copper-System-Equipment.html

ZCIDC-07 Server Cabinet

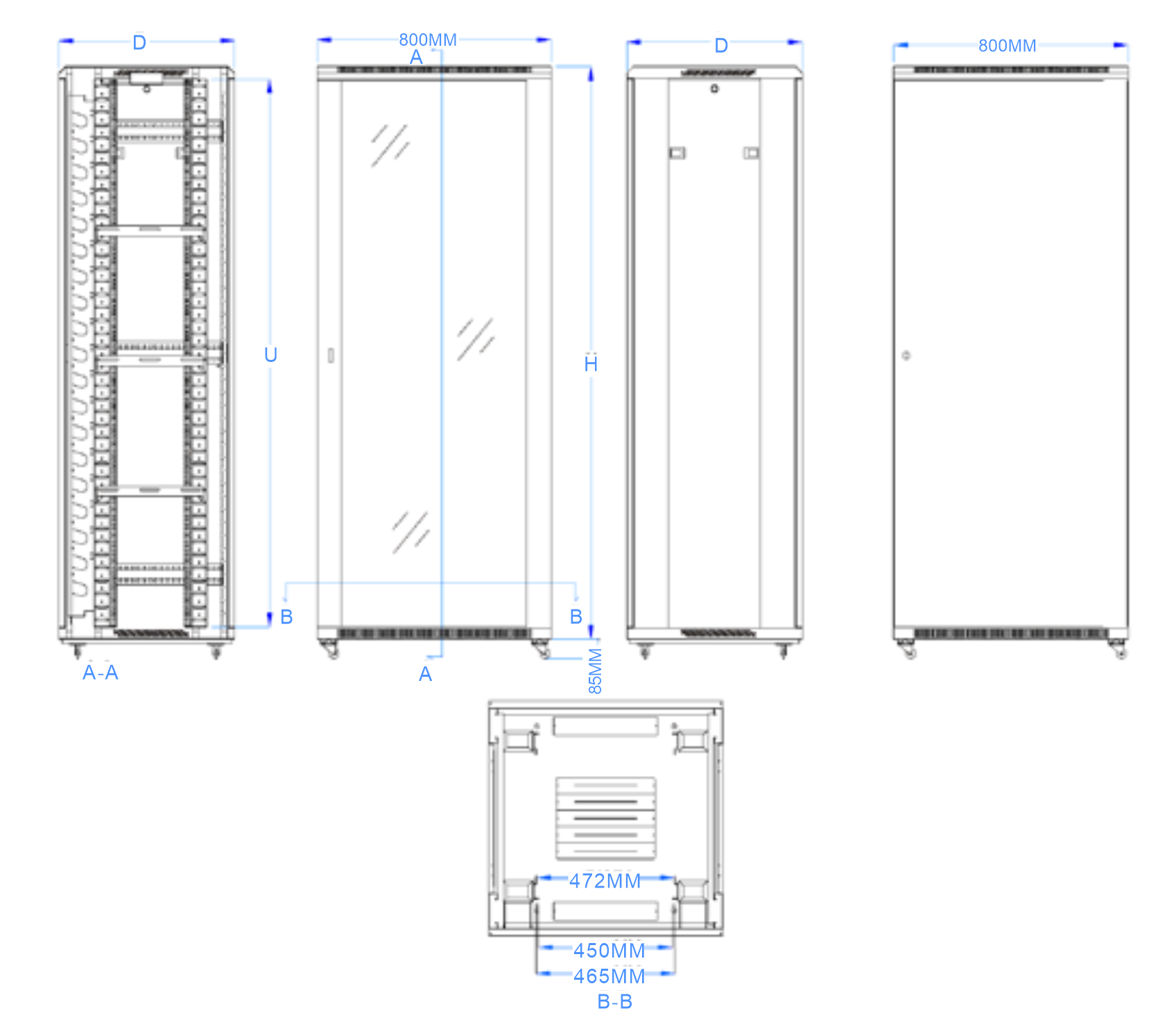

Technical Data IDC Server Rack Cabinets IDC-07 18-47U , Date Center Accessories , from China Manufacturer - Zion Communiation
Materials:
· SPCC high quality cold rolled steel
· Surface process: degreasing; phosphating; spray paint
· Thickness: Mounting profile 2.0mm; Others 1.2-1.5mm
Colour:
· RAL9004 (black); others could be required
Standard
·Compliant with ANSI/EIA; RS-210-D; IEC297-2;
DIN41491;PART1; DIN41494;PAR7;
GB/T2047.2-92; ETSI
Features
· Strong structure with static loading capacity: 800KG
· Adjustable support with load-bearing well caster ensuresthat the cabinet can be moved and fixed easily.
· Tempered glass front doorwith vented metal straight rowof holes, beautiful appearancedesign with
steel rear door.
· Excellent and elegant exterior door hinge With 180 degrees, which makes the door can be opened 180
degrees in parallel when it's connected, easy to assemble and operate.
· Cables enter from the top or the bottom, all of the tray for front, rear and side panel could be taken out.
· Size of the device installationcan be selected from 19-27inches, and the 19-inch canbe equipped with a
verticalcable management rack.
· Full range of optional accessories with trustworthyquality.
· Height: 18U,22U,27U,32U,37U, 42U,47U
· Depth: 800mm, 900mm and 1000mm.
· Flexible packaging ensures cabinet’s storage and delivery.
Mian Install the Fitting
IDC Server Rack Cabinets IDC-07 18-47U , Date Center Accessories , from China Manufacturer - Zion Communiation IDC Server Rack Cabinets IDC-07 18-47U , Date Center Accessories , from China Manufacturer - Zion Communiation IDC Server Rack Cabinets IDC-07 18-47U , Date Center Accessories , from China Manufacturer - Zion Communiation

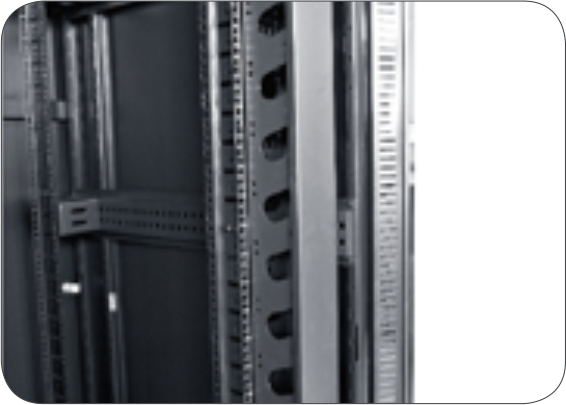

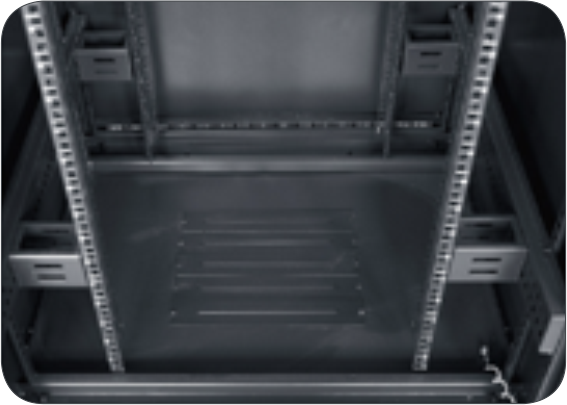

Cable management Bottom panel Mounting angle

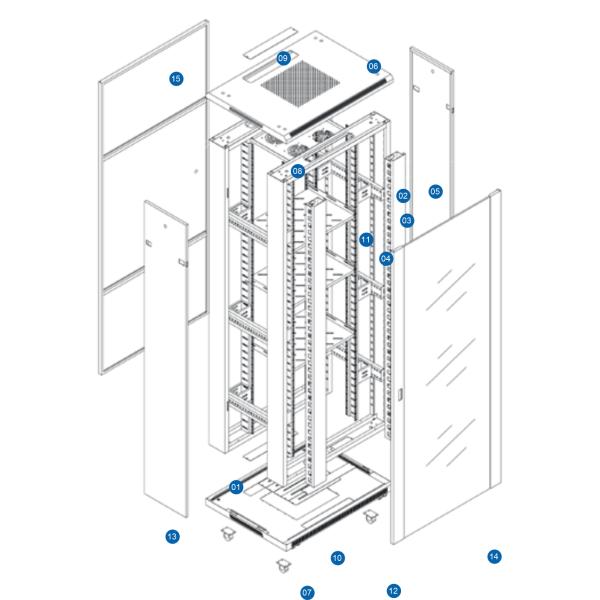

Main Part
NO. ITEM QTY SPCCT
(mm)		 IDC Server Rack Cabinets IDC-07 18-47U , Date Center Accessories , from China Manufacturer - Zion Communiation
1 Frame 2PCS 1.2
2 Mounting angle 4/6PCS 1.2
3 Connector 8/12PCS 2.0
4 Mounting post 19in 4PCS 2.0
5 Vertical cable
management rack		 2PCS 1.0
6 Top cover 1PCS 1.2
7 Bottom panle 1PCS 1.2
8 Fan tray 1PCS 1.0
9 Decorative tray 3PCS 1.0
10 Cable tray 5PCS 1.0
11 Fixed partition Optional 1.2
12 Caster 4PCS /
13 Side penal 2PCS 1.0
14 Glass door 1PCS 1.2
15 Steel door 1PCS 1.2
Ordering Information
IDC Server Rack Cabinets IDC-07 18-47U , Date Center Accessories , from China Manufacturer - Zion Communiation
Model Width
(mm)		 Depth(D) (mm) Height
(mm)		 U
ZCIDC.8618-7 SHSC 800 600 900 18U
ZCIDC.8818-7 SHSC 800
ZCIDC.8918-7 SHSC 900
ZCIDC.8018-7 SHSC 1000
ZCIDC.8622-7 SHSC 800 600 1080 22U
ZCIDC.8822-7 SHSC 800
ZCIDC.8922-7 SHSC 900
ZCIDC.8022-7 SHSC 1000
ZCIDC.8627-7 SHSC 800 600 1300 27U
ZCIDC.8827-7 SHSC 800
ZCIDC.8927-7 SHSC 900
ZCIDC.8027-7 SHSC 1000
ZCIDC.8632-7 SHSC 800 600 1525 32U
ZCIDC.8832-7 SHSC 800
ZCIDC.8932-7 SHSC 900
ZCIDC.8032-7 SHSC 1000
ZCIDC.8637-7 SHSC 800 600 1745 37U
ZCIDC.8837-7 SHSC 800
ZCIDC.8937-7 SHSC 900
ZCIDC.8037-7 SHSC 1000
ZCIDC.8642-7 SHSC 800 600 1965 42U
ZCIDC.8842-7 SHSC 800
ZCIDC.8942-7 SHSC 900
ZCIDC.8042-7 SHSC 1000
ZCIDC.8647-7 SHSC 800 600 2190 47U
ZCIDC.8847-7 SHSC 800
ZCIDC.8947-7 SHSC 900
ZCIDC.8047-7 SHSC 1000
Remark: Information in the sheet refers to the height of cabinet without castor
