Specifications
Brand Name :
Zion communication OR OEM
Model Number :
Data Center Equipment
Certification :
ISO, CE, RoHS, UL
Place of Origin :
CHINA
MOQ :
1,000 PCS
Payment Terms :
T/T, L/C
Supply Ability :
30,000 PCS / Month
Delivery Time :
Normally 10 workingdays
Packaging Details :
1 PC/Plastic Bag, PCS/Carton
Model :
Server Rack Cabinet
Bnad :
Zion Communication
Cord :
ZCIDC-03
Capacity :
42U,47U
Depth :
800mm, 900mm, 1000mm ,1100mm and 1200mm
Description

More detail please visit:

https://www.zion-communication.com/Copper-System-Equipment.html

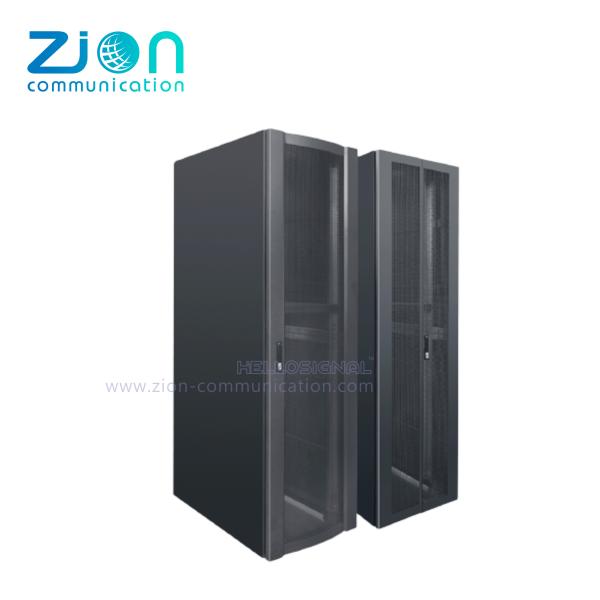

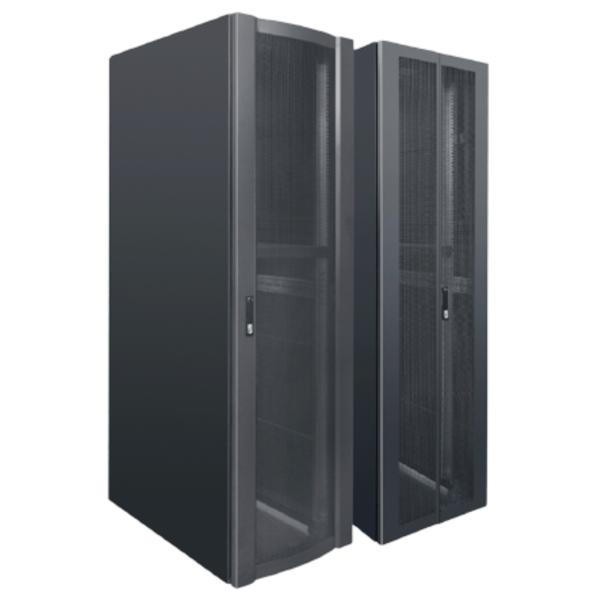

ZCIDC-03 Server Cabinet
Technical Data Server Rack Cabinets IDC-03 42/47U , Date Center Accessories , from China Manufacturer - Zion Communiation
Materials:
· SPCC high quality cold rolled steel
· Surface process: degreasing; phosphating; spray paint
· Thickness: Mounting profile 2.0mm; Others 1.2-1.5mm
Colour:
· RAL9004 (black); others could be required
Standard
·Compliant with ANSI/EIA; RS-210-D; IEC297-2;
DIN41491;PART1; DIN41494;PAR7;
GB/T2047.2-92; ETSI
Features

· The cabinet frame is made of international advanced 14-fold profiles with the special 3-way technology, which

makes the structure stronger and can load about 1200 KG.

· More than 65% of the heat dissipation area of the cabinet can be ensured by the mesh front single-door and

mesh rear double-door.

· The installation and disassembly of side doors is fast and convenient, which makes maintenance much easier

and more effcient.
· Movable caster and fixed feet can be used simultaneously, which makes the moving of cabinets easier.

· Replaceable hinges have been installed on the door and protected of top cable holes by a rubber cover, which

are flexible and safe.
· Height: 42U, 47U
· Depth: 800mm, 900mm, 1000mm ,1100mm and 1200mm.
· The depth(25mm/unit) and inner height(1U/unit) are adjustable.
· Flexible packaging ensures cabinet’s storage and delivery.

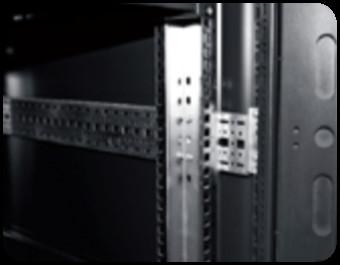

Mian Install the Fitting
Server Rack Cabinets IDC-03 42/47U , Date Center Accessories , from China Manufacturer - Zion Communiation Server Rack Cabinets IDC-03 42/47U , Date Center Accessories , from China Manufacturer - Zion Communiation Server Rack Cabinets IDC-03 42/47U , Date Center Accessories , from China Manufacturer - Zion Communiation

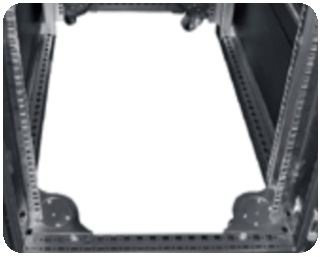

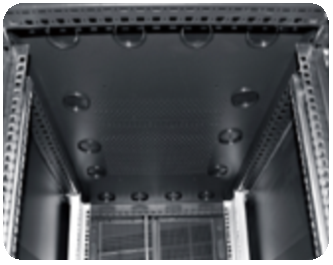

Top cover Caster tray Cable management
Main Part

Server Rack Cabinets IDC-03 42/47U , Date Center Accessories , from China Manufacturer - Zion Communiation
NO. ITEM QTY SPCCT (mm)
1 Frame 1PCS 1.5
2 Mounting angle 4PCS 1.5
3 Mounting profile 4PCS 2.0
4 Top cover 1PCS 1.2
5 Bottom panel 1PCS 1.5
6 Fan tray 1PCS 1.2
7 Decorative plates 4PCS 2.0
8 Caster 4PCS /
9 Side panel 2PCS 1.2
10 Front door 1PCS 1.2
11 Rear door 1SET 1.2

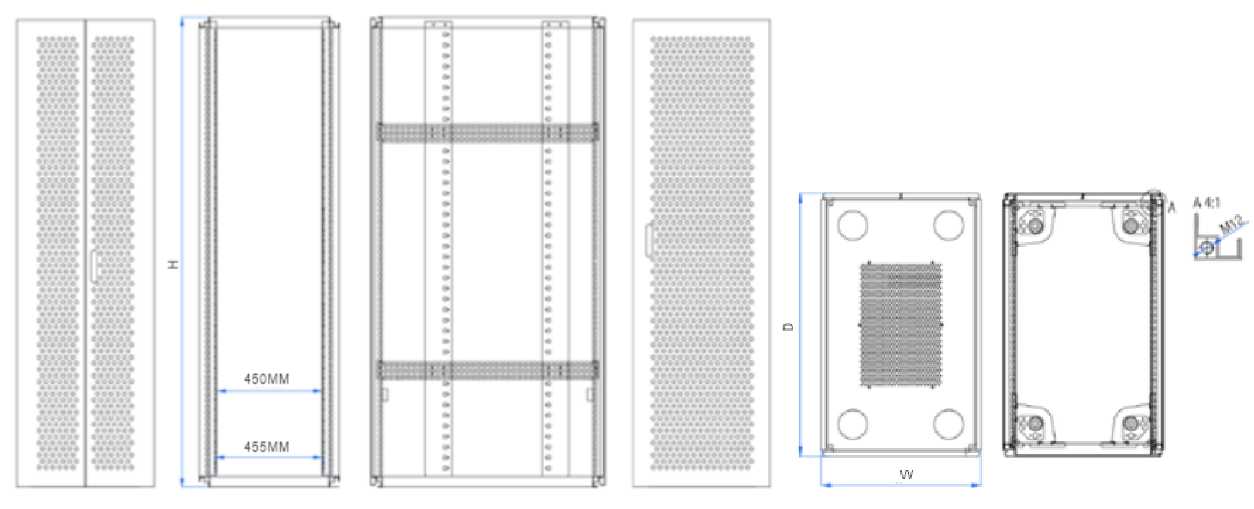

Ordering Information
Server Rack Cabinets IDC-03 42/47U , Date Center Accessories , from China Manufacturer - Zion Communiation
Model Width
(mm)		 Depth(D) (mm)

Height

(mm)

 U
ZCIDC.6842-3 SHSC 600 800 1975 42U
ZCIDC.6942-3 SHSC 900
ZCIDC.6042-3 SHSC 1000
ZCIDC.6142-3 SHSC 1100
ZCIDC.6242-3 SHSC 1200
ZCIDC.8842-3 SHSC 800 800 1975 42U
ZCIDC.8942-3 SHSC 900
ZCIDC.8042-3 SHSC 1000
ZCIDC.8142-3 SHSC 1100
ZCIDC.8242-3 SHSC 1200
ZCIDC.6847-3 SHSC 600 800 2175 47U
ZCIDC.6947-3 SHSC 900
ZCIDC.6047-3 SHSC 1000
ZCIDC.6147-3 SHSC 1100
ZCIDC.6247-3 SHSC 1200
ZCIDC.8847-3 SHSC 800 800 2175 47U
ZCIDC.8947-3 SHSC 900
ZCIDC.8047-3 SHSC 1000
ZCIDC.8147-3 SHSC 1100
ZCIDC.8247-3 SHSC 1200
