Specifications
Brand Name :
Zion communication OR OEM
Model Number :
Data Center Equipment
Certification :
ISO, CE, RoHS, UL
Place of Origin :
CHINA
MOQ :
1,000 PCS
Payment Terms :
T/T, L/C
Supply Ability :
30,000 PCS / Month
Delivery Time :
Normally 10 workingdays
Packaging Details :
1 PC/Plastic Bag, PCS/Carton
Model :
Server Rack Cabinet
Bnad :
Zion Communication
Cord :
ZCIDC-04
Capacity :
42U
Depth :
770mm, 870mm, 970mm ,1070mm
Description

More detail please visit:

https://www.zion-communication.com/Copper-System-Equipment.html

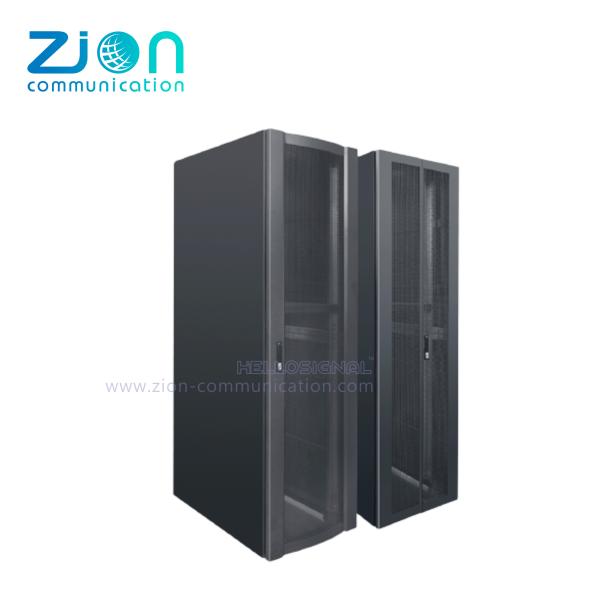

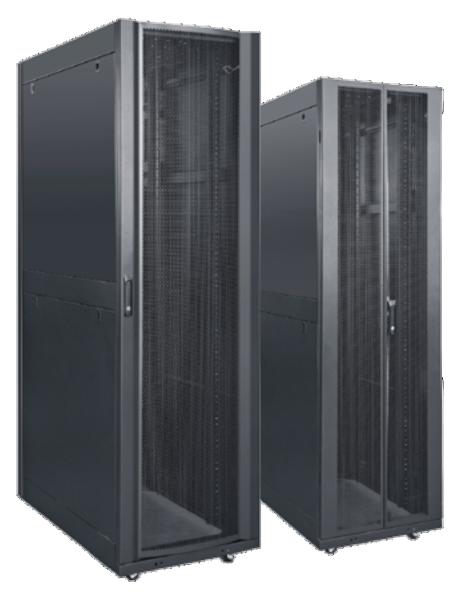

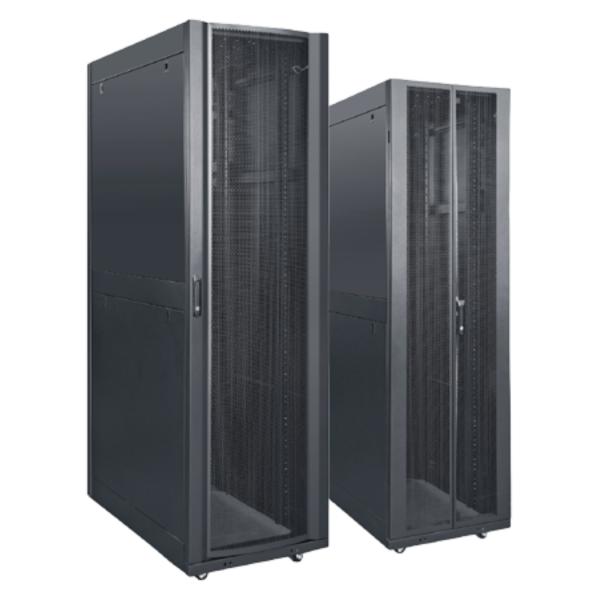

ZCIDC-04 Server Cabinet
Technical Data
Materials: Server Rack Cabinets IDC-04 42U , Date Center Accessories , from China Manufacturer - Zion Communiation
· SPCC high quality cold rolled steel
· Surface process: degreasing; phosphating; spray paint
· Thickness: Mounting profile 2.0mm; Others 1.2-1.5mm
Colour:
· RAL9004 (black); others could be required
Standard
· Compliant with ANSI/EIA; RS-210-D; IEC297-2;
DIN41491;PART1; DIN41494;PAR7;
GB/T2047.2-92; ETSI
Features
· Curved mesh front door with folio mesh rear door ensures ventilation and visibility of the cabinet.
· Movable caster and fixed feet can be used simultaneously; which allow the cabinet to bear about 1200KG.
· Top panel has numerous fixed cable holes, vertical pressure plate on both sides of the back.
· Removable doors in all directions are easy to operate for all angles.
· Easy assembly makes system operation very simple.
· Large ventilation area of more than 70% of the door area.
· Height: 42U
· Depth: 770mm, 870mm, 970mm ,1070mm.
· Flexible packaging ensures cabinet’s storage and delivery.
Mian Install the Fitting
Server Rack Cabinets IDC-04 42U , Date Center Accessories , from China Manufacturer - Zion Communiation Server Rack Cabinets IDC-04 42U , Date Center Accessories , from China Manufacturer - Zion Communiation Server Rack Cabinets IDC-04 42U , Date Center Accessories , from China Manufacturer - Zion Communiation

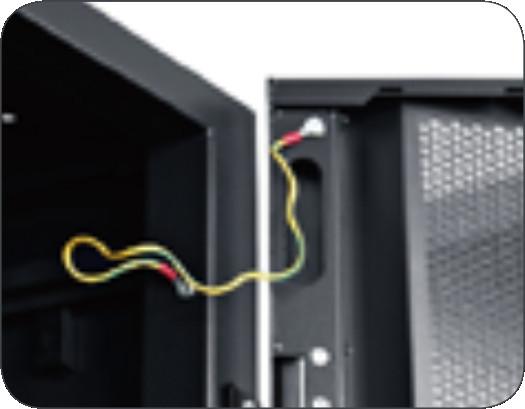

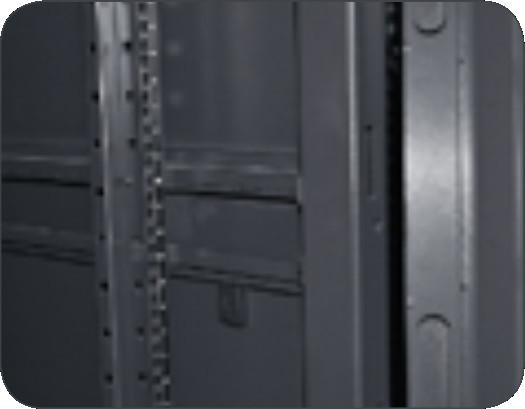

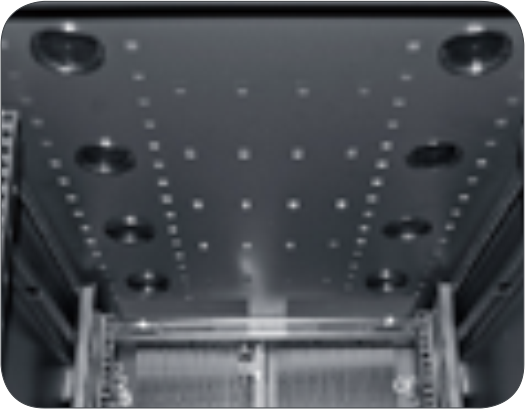

Top cover Ground cable Cable management

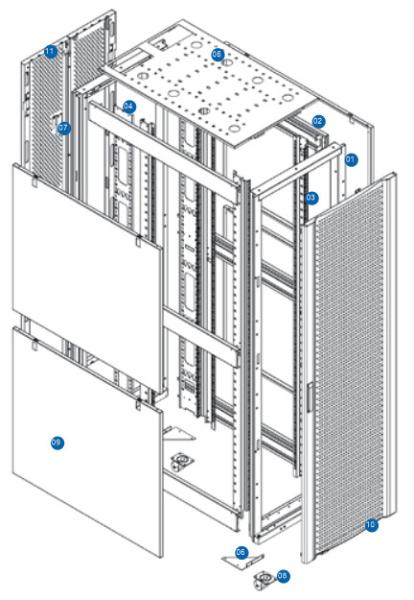

Main Part Server Rack Cabinets IDC-04 42U , Date Center Accessories , from China Manufacturer - Zion Communiation
NO. ITEM QTY SPCCT (mm)
1 Frame 2PCS 2.0
2 Mounting angle 6PCS 1.5
3 Mounting profile 4PCS 2.0
4 Cable management slot 2PCS 1.5
5 Top cover 1PCS 1.2
6 Supporting tray 4PCS 2.0
7 Hinge 6PCS /
8 Caster 4PCS /
9 Side panel 4PCS 1.2
10 Single-open front door 1PCS 1.2
11 Folio door 1PCS 1.2

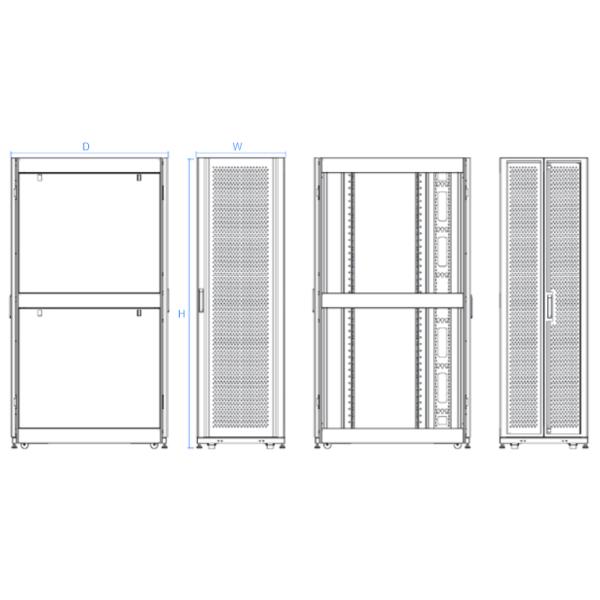

Ordering Information
Model Width
(mm)		 Depth(D) (mm) Height(mm) U
ZCIDC.6842-4 SHSC 600 770 2000 42U
ZCIDC.6942-4 SHSC 870
ZCIDC.6042-4 SHSC 970
ZCIDC.6142-4 SHSC 1070

Server Rack Cabinets IDC-04 42U , Date Center Accessories , from China Manufacturer - Zion Communiation
