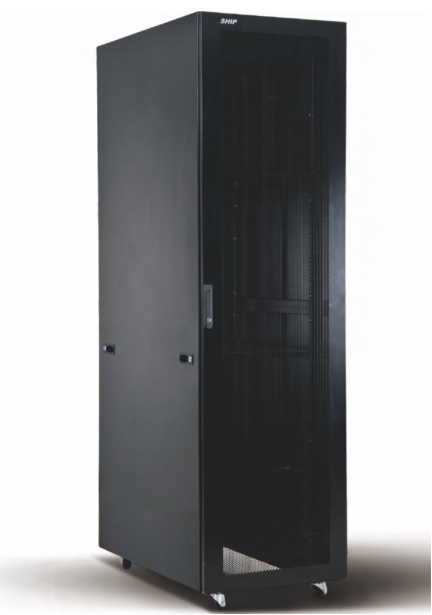

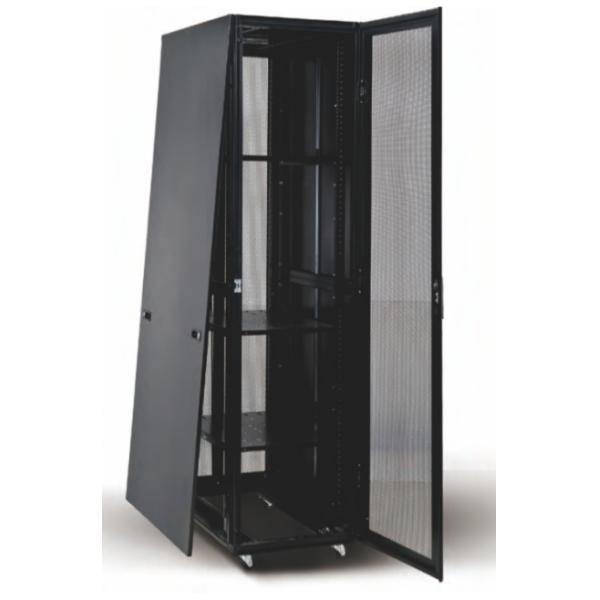

1000kg Loading Capacity Server Rack Cabinet with SPCC Cold Rolled Steel and High-Density Vented Doors for Data Centers
1000kg Loading Capacity Server Rack Cabinet with SPCC Cold Rolled Steel and High-Density Vented Doors for Data Centers
1000kg Loading Capacity Server Rack Cabinet with SPCC Cold Rolled Steel and High-Density Vented Doors for Data Centers
1000kg Loading Capacity Server Rack Cabinet with SPCC Cold Rolled Steel and High-Density Vented Doors for Data Centers
1000kg Loading Capacity Server Rack Cabinet with SPCC Cold Rolled Steel and High-Density Vented Doors for Data Centers
1000kg Loading Capacity Server Rack Cabinet with SPCC Cold Rolled Steel and High-Density Vented Doors for Data Centers
Specifications
Brand Name :
Zion communication OR OEM
Model Number :
Data Center Equipment
Certification :
ISO, CE, RoHS, UL
Place of Origin :
CHINA
MOQ :
1,000 PCS
Payment Terms :
T/T,L/C
Supply Ability :
30,000 PCS / Month
Delivery Time :
Normally 10 workingdays
Packaging Details :
1 PC/Plastic Bag, PCS/Carton
Model :
Server Rack Cabinet
Bnad :
Zion Communication
Cord :
ZC603
Maximum loading capacity :
1000kg
Description

More detail please visit:

https://www.zion-communication.com/Copper-System-Equipment.html

603 Cabinets
Technical Data
Materials: 1000kg Loading Capacity Server Rack Cabinet with SPCC Cold Rolled Steel and High-Density Vented Doors for Data Centers
· SPCC Cold Rolled Steel; · 19" rails: 2.0mm;
· Frame: 1.5mm; · others:1.2mm.
Colour:
· ZC603■■■■ ■■0■■: RAL7035
· ZC603■■■■ ■■1■■: RAL9004
Loading Capacity:
· Static loading:1000KG.
COMPLIANCE (Reference Standard)
· Comply with ANSI/EIA RS-310-D
· IEC60297-2
· DIN41494;PART1; DIN41494;PART7.
Feature
1000kg Loading Capacity Server Rack Cabinet with SPCC Cold Rolled Steel and High-Density Vented Doors for Data Centers

· Reticular high-density vented front door (patent) & rear door

for protection, ventilation and reliable operation.

· Exquisite image (patent) with precise dimension and

craftsmanship.

· Lockable cable entry on top cover and bottom panel with

adjustable sizes.

· Optional plinth enables cabinets to stay in a fixed position

while meeting requirements of under-base wiring/ventilation

and rat prevention.

· Strong cabinet connection by baying kit (patent).

· Lock with handle.

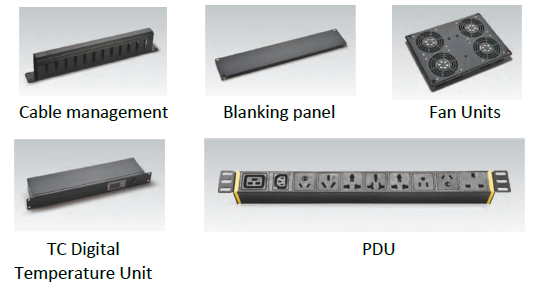

Main Installs The Fitting
1000kg Loading Capacity Server Rack Cabinet with SPCC Cold Rolled Steel and High-Density Vented Doors for Data Centers

Definition Of Cord
1000kg Loading Capacity Server Rack Cabinet with SPCC Cold Rolled Steel and High-Density Vented Doors for Data Centers

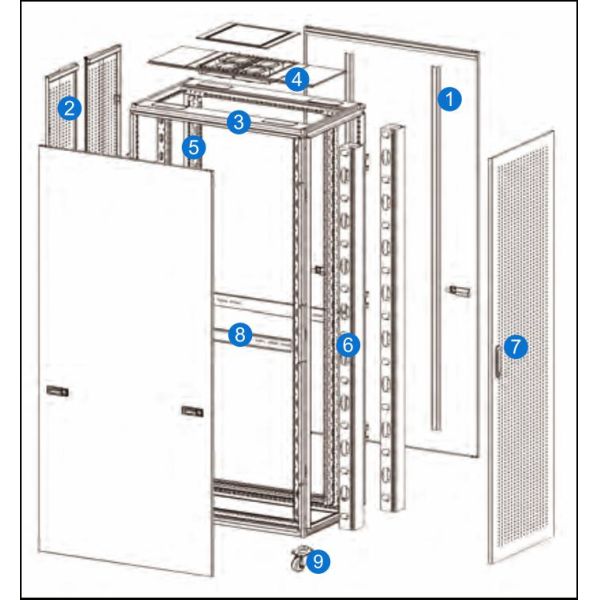

Main Part
S/N Specification Qty Material Surface Finish Remark
1 Side panel 2 SPCC t1.2 Powder coated
2 Read door 1 SPCC t1.2 Powder coated Double high-density vented
3 Frame 1 SPCC t1.5 Powder coated
4 Top cover 1 SPCC t1.2 Powder coated ·····
5 19"rails 4 SPCC t2.0 Powder coated
6 Cable management slot 2 SPCC t1.0 Powder coated Only used for 800 width cabinet
7 Front door 1 SPCC t1.2 Powder coated High-density vented
8 Mounting angle 2 SPCC t1.5 Powder coated ·····
9 2" heavy duty castor 4 ····· ····· ·····
A M12 adjustable feet 4 ····· V ·····
B M6 screw & nuts 20 Steel Colour zinc 40pcs for over 33U
C Trox tooling 1 Steel Colour zinc ·····
The 600mm width cabinet can be changed to the 800mm width one, only need to put the connecting panel and 2 cable management slots. Support 19" EIA equipment.
Specification:
Model No. Width
(mm)		 Depth(D)
(mm)		 Capacity
(U)		 Height(H)
(mm)		 Packing dimension
W*D*H
ZC603.6633.603NC 600 600 33 1600 670*670*1700
ZC603.6638.603NC 38 1800 670*670*1900
ZC603.6642.603NC 42 2000 670*670*2100
ZC603.6647.603NC 47 2200 670*670*2300
ZC603.6833.603NC 800 33 1600 670*870*1700
ZC603.6838.603NC 38 1800 670*870*1900
ZC603.6842.603NC 42 2000 670*870*2100
ZC603.6847.603NC 47 2200 670*870*2300
ZC603.6933.603NC 900 33 1600 670*970*1700
ZC603.6938.603NC 38 1800 670*970*1900
ZC603.6942.603NC 42 2000 670*970*2100
ZC603.6947.603NC 47 2200 670*970*2300
ZC603.6042.603NC 1000 42 2000 670*1070*2100
ZC603.6047.603NC 47 2200 670*1070*2300
ZC603.8642.603NC 800 600 42 2000 870*670*2100
ZC603.8842.603NC 800 42 2000 870*870*2100
ZC603.8942.603NC 900 42 2000 870*970*2100
ZC603.8042.603NC 1000 42 2000 870*1070*2100
