Specifications
Brand Name :
Zion communication OR OEM
Model Number :
Data Center Equipment
Certification :
ISO, CE, RoHS, UL
Place of Origin :
CHINA
MOQ :
1,000 PCS
Payment Terms :
T/T,L/C
Supply Ability :
30,000 PCS / Month
Delivery Time :
Normally 10 workingdays
Packaging Details :
1 PC/Plastic Bag, PCS/Carton
Model :
Network Rack Cabinet
Bnad :
Zion Communication
Cord :
ZCTE
Maximum loading capacity :
400kg
Description

More detail please visit:

https://www.zion-communication.com/Copper-System-Equipment.html

TE Cabinets
Technical Data
Materials: Network Rack Cabinet with 400KG Loading Capacity SPCC Cold Rolled Steel and Modular Quick Disassembling Design
· SPCC Cold Rolled Steel; · 19" rails: 2.0mm;
· others:1.2mm.
Colour:
· ZCTE.■■■■.■■.0■■: RAL7035
· ZCTE.■■■■.■■.1■■: RAL9004
Loading Capacity:

· Static loading: 400KG.
COMPLIANCE (Reference Standard)
· Comply with ANSI/EIA RS-310-D
· IEC60297-2
· DIN41494;PART1; DIN41494;PART7.
Feature

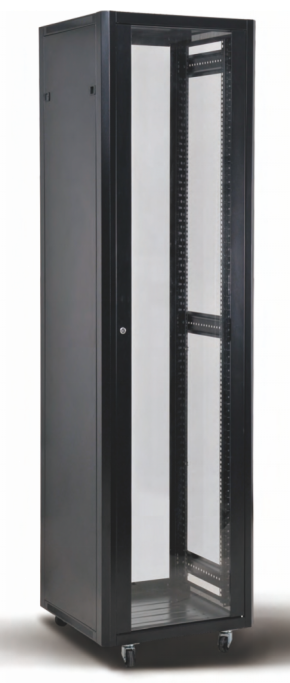

Network Rack Cabinet with 400KG Loading Capacity SPCC Cold Rolled Steel and Modular Quick Disassembling Design

· Exquisite design with precise dimension and craftsmanship;

· Within the cavity in front and back the door be style;

· Adjustable feet and heavy duty castors are available

simultaneously;

· Modular quick disassembling;

· Optional installation of plinth to enable cabinets fixation, under-base cable entry/ventilation;

· Eficient and reliable cabinet connection by baying kit;

· Removable side panel&rear door to Quick open steel door ease maintain.

Network Rack Cabinet with 400KG Loading Capacity SPCC Cold Rolled Steel and Modular Quick Disassembling Design

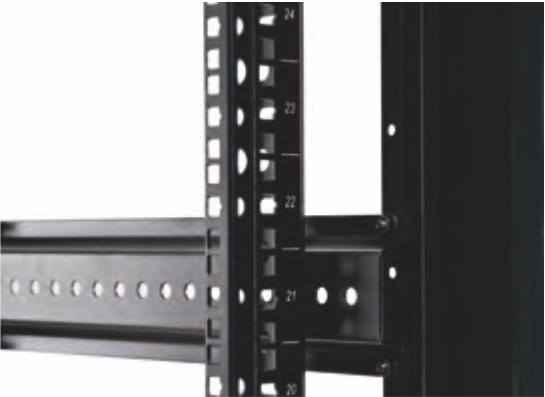

·19”Profile with scale, movable forward and backward.

Network Rack Cabinet with 400KG Loading Capacity SPCC Cold Rolled Steel and Modular Quick Disassembling Design

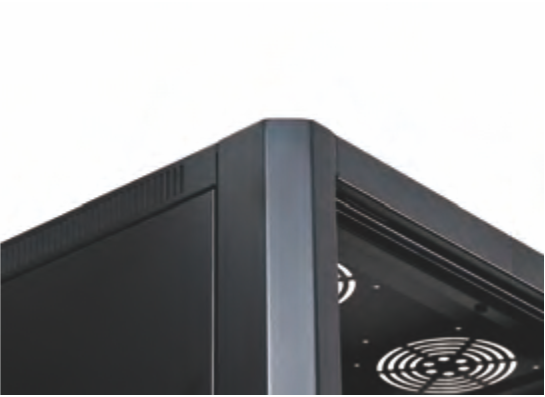

· 45 degree corner framework.

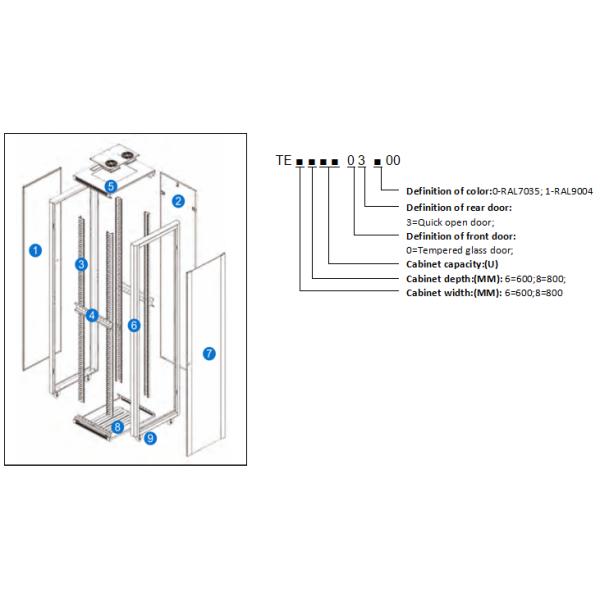

Definition Of Cord

Network Rack Cabinet with 400KG Loading Capacity SPCC Cold Rolled Steel and Modular Quick Disassembling Design

Main Part
S/N Specification Qty Material Surface Finish Remark
1 Rear door 1 SPCC t1.0 Powder coated ·····
2 Side panel 2 SPCC t1.0 Powder coated ·····
3 19"rails 4 SPCC t2.0 Powder coated ·····
4 Mounting angle 2 SPCC t1.0 Powder coated ·····
5 Top cover 1 SPCC t1.0 Powder coated ·····
6 Frame 2 SPCC t1.0 Powder coated ·····
7 Front door 1 ····· ····· Tempered glass door
8 Bottom 1 SPCC t1.0 Powder coated ·····
9 2" heavy duty castor 4 ····· ····· ·····
Hardware kits with cabinet:
A M12 adjustable feet 4 Steel Zinc-plated Height:100MM
B M6 screw & nuts 20 Steel Zinc-plated 40pcs for over 27U
C Trox tooling 1 Steel Zinc-plated ·····
Specification:
Part Number. Width
(mm)		 Depth(D)
(mm)		 Capacity
(U)		 Height(H)
(mm)
ZCTE.6621.TESC 600 600 21 1020
ZCTE.6627.TESC 27 1290
ZCTE.6636.TESC 36 1690
ZCTE.6642.TESC 42 1955
ZCTE.6647.TESC 47 2180
ZCTE.8842.TESC 800 800 42 1955
ZCTE.8847.TESC 47 2180
