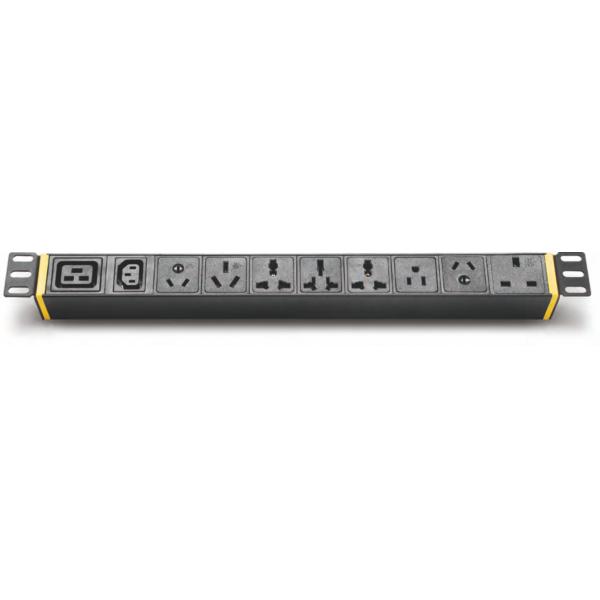

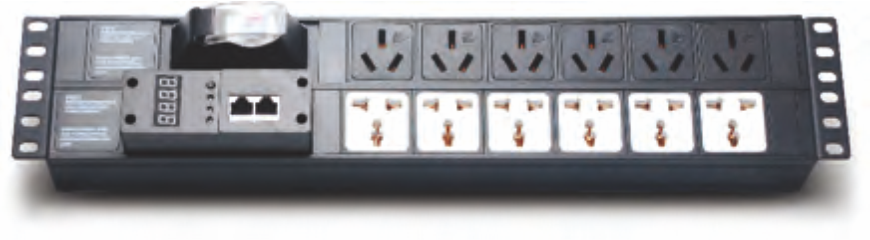

16A 250VAC Rack PDU with Master Overload Protector and Surge Protective Device for Server Cabinets
16A 250VAC Rack PDU with Master Overload Protector and Surge Protective Device for Server Cabinets
Specifications
Brand Name :
Zion communication OR OEM
Model Number :
Data Center Equipment
Certification :
ISO, CE, RoHS, UL
Place of Origin :
CHINA
MOQ :
1,000 PCS
Payment Terms :
T/T,L/C
Supply Ability :
30,000 PCS / Month
Delivery Time :
Normally 10 workingdays
Packaging Details :
1 PC/Plastic Bag, PCS/Carton
Model :
Cabinet Fitting
Bnad :
Zion Communication
Description

More detail please visit:

https://www.zion-communication.com/Copper-System-Equipment.html

PDU
16A 250VAC Rack PDU with Master Overload Protector and Surge Protective Device for Server Cabinets16A 250VAC Rack PDU with Master Overload Protector and Surge Protective Device for Server Cabinets
Input Connector Type
16A 250VAC Rack PDU with Master Overload Protector and Surge Protective Device for Server Cabinets 16A 250VAC Rack PDU with Master Overload Protector and Surge Protective Device for Server Cabinets

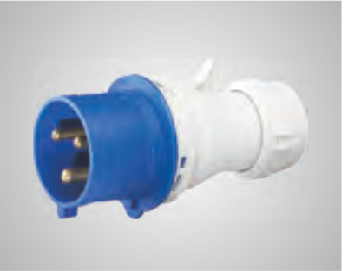

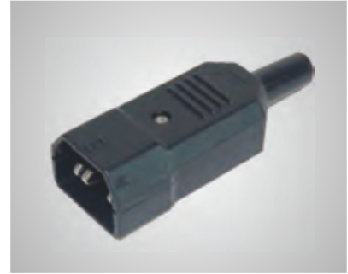

Plug Style IEC60329 Plug Style IEC320 C14(C20)
Parameter 16/32A 250VAC Parameter 10(16A) 250VAC
16A 250VAC Rack PDU with Master Overload Protector and Surge Protective Device for Server Cabinets 16A 250VAC Rack PDU with Master Overload Protector and Surge Protective Device for Server Cabinets

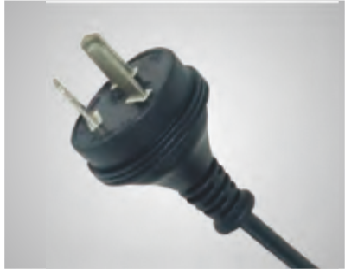

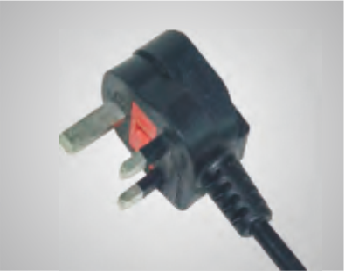

Plug Style BS1363 Plug Style AS/NZS 3112
Parameter 13A 250VAC Parameter 10(16A) 250VAC
16A 250VAC Rack PDU with Master Overload Protector and Surge Protective Device for Server Cabinets 16A 250VAC Rack PDU with Master Overload Protector and Surge Protective Device for Server Cabinets

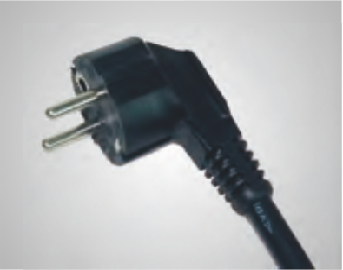

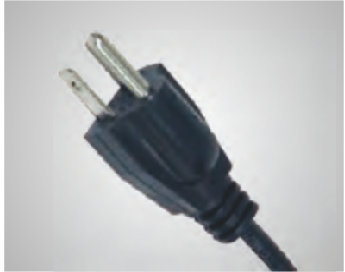

Plug Style DIN49441 Plug Style NAME 5-15P
Parameter 16A 250VAC Parameter 15A 125VAC
Output Unit Type
16A 250VAC Rack PDU with Master Overload Protector and Surge Protective Device for Server Cabinets 16A 250VAC Rack PDU with Master Overload Protector and Surge Protective Device for Server Cabinets

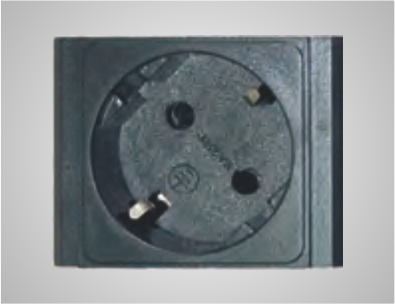

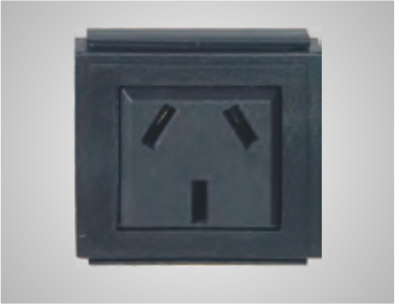

Style AS/NZS 3112 Style DIN49440
Parameter 10(15A) 250VAC Parameter 16A 250VAC
16A 250VAC Rack PDU with Master Overload Protector and Surge Protective Device for Server Cabinets 16A 250VAC Rack PDU with Master Overload Protector and Surge Protective Device for Server Cabinets

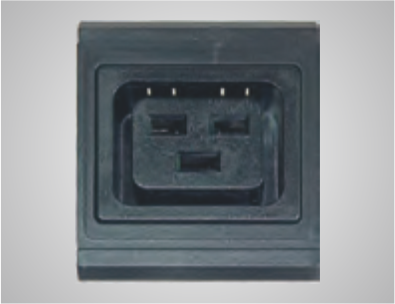

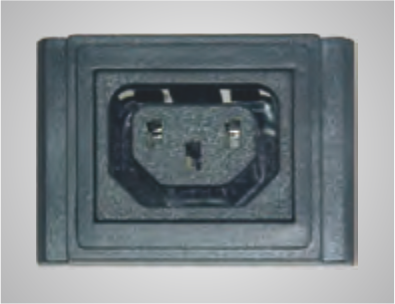

Style IEC320 C13(C19) Style IEC302 C19
Parameter 10(16A) 250VAC Parameter 13A 250VAC
16A 250VAC Rack PDU with Master Overload Protector and Surge Protective Device for Server Cabinets 16A 250VAC Rack PDU with Master Overload Protector and Surge Protective Device for Server Cabinets

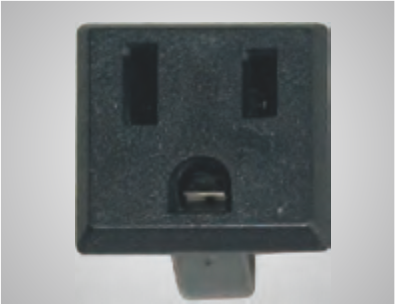

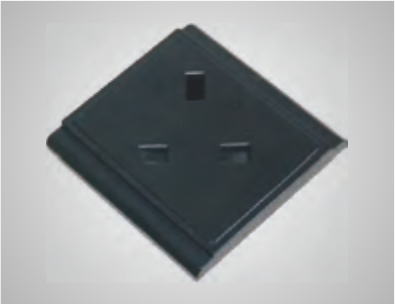

Style BS1363(45") Style NAME 5-15R
Parameter 13A 250VAC Parameter 15A 150VAC
Input Connector Type
16A 250VAC Rack PDU with Master Overload Protector and Surge Protective Device for Server Cabinets 16A 250VAC Rack PDU with Master Overload Protector and Surge Protective Device for Server Cabinets

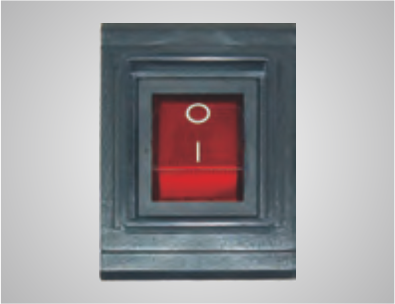

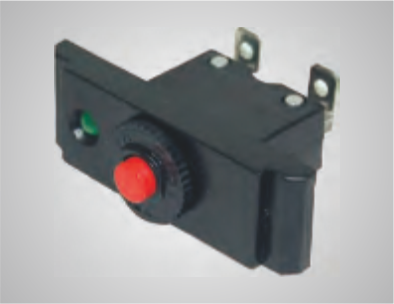

Name Master switch Name Master overload
Protector & power
indicator
16A 250VAC Rack PDU with Master Overload Protector and Surge Protective Device for Server Cabinets 16A 250VAC Rack PDU with Master Overload Protector and Surge Protective Device for Server Cabinets

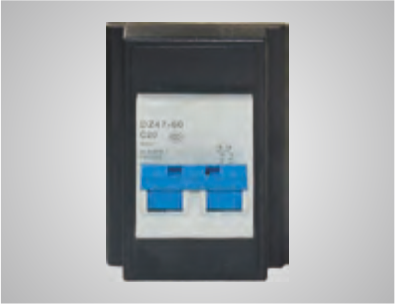

Parameter Mini circuit
breaker(1~60A)		 Code LY-A
Name Protective device
16A 250VAC Rack PDU with Master Overload Protector and Surge Protective Device for Server Cabinets

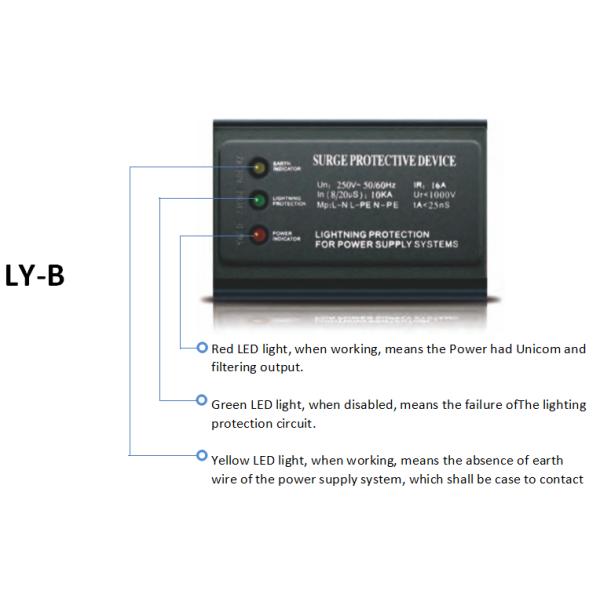

Code LY-B
Name Protective device

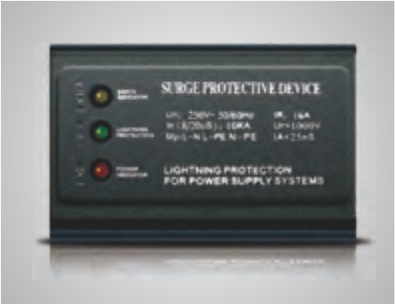

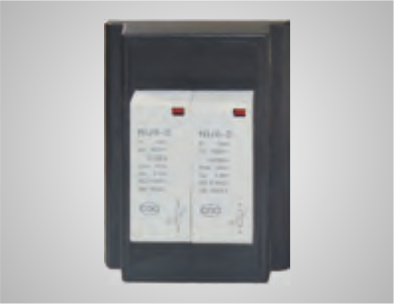

Surge Protective device

16A 250VAC Rack PDU with Master Overload Protector and Surge Protective Device for Server Cabinets
TUL-LY-A/B Parameter
Rated voltage 250VAC 50/60Hz
Rated load current IR 16A
Max. power PMAX 4000W
Max. Continuous operating voltage UC 320VAC
Measured limiting voltage Ur <1000V
Nominal discharge current(8/20 μs)In 10KA
Voltage protection level Up <1000V
Response time TA <25nS
Protection mode L-N L-PE N-PE
Earth indicator Yellow LED
Lightning protection Green LED
Power indicator Red LED
Alternative filtration Highly efficient
Insulation resistance RIS >100M Ω
Fire resistance Up to UL 94V-0
Environment temperature -40~ +70°C
Relative humidity <=95%
