Specifications
Brand Name :
Zion communication OR OEM
Model Number :
Data Center Equipment
Certification :
ISO, CE, RoHS, UL
Place of Origin :
CHINA
MOQ :
1,000 PCS
Payment Terms :
T/T,L/C
Supply Ability :
30,000 PCS / Month
Delivery Time :
Normally 10 workingdays
Packaging Details :
1 PC/Plastic Bag, PCS/Carton
Model :
Wall Mount Rack Cabinet
Bnad :
Zion Communication
Cord :
ZCSA
Color :
Black,Grey
Loading Capacity :
60kg
Description

More detail please visit:

https://www.zion-communication.com/Copper-System-Equipment.html

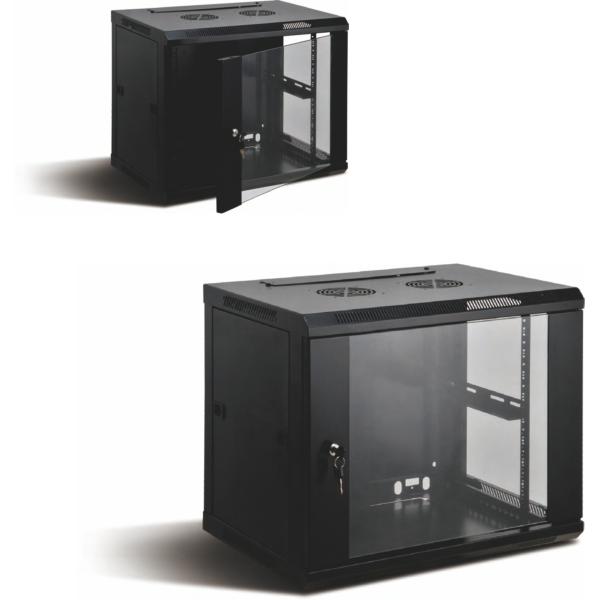

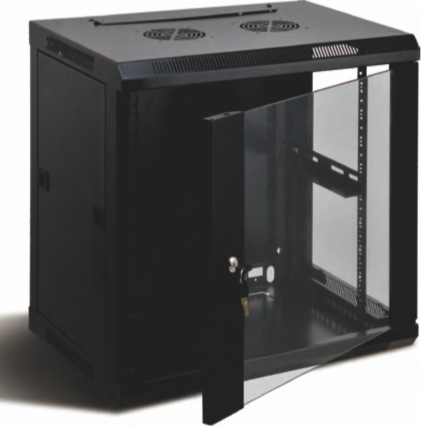

SA Wall Box
Technical Data
Materials: SA Wall Mount Rack Cabinet , Date Center Accessories , Manufacturer from China - Zion Communiation
· SPCC Cold Rolled Steel;
· Thickness: 19" rails:1.2/1.5mm
· others: 1.2mm.
Colour:
· ZCSA.■■■■0■■: RAL7035
· ZCSA.■■■■1■■: RAL9004
Loading Capacity:
· Static loading: 60KG.
COMPLIANCE (Reference Standard)
· Comply with ANSI/EIA RS-310-D
· IEC60297-2
· DIN41494;PART1; DIN41494;PART7.
Feature
SA Wall Mount Rack Cabinet , Date Center Accessories , Manufacturer from China - Zion Communiation

· Welded frame, reliable structure;

· Standing or wall mounting installation;

· Adjustable feet and heavy duty castors are optional;

· Easy mounting installation ( patent) ;

· 19“ standard installation;

· Removable side panels, side locks optional

· Cable entry on both of top cover and bottom panel;

· 120mm fan available;

· Turning angle of front door is over 1 80 degrees

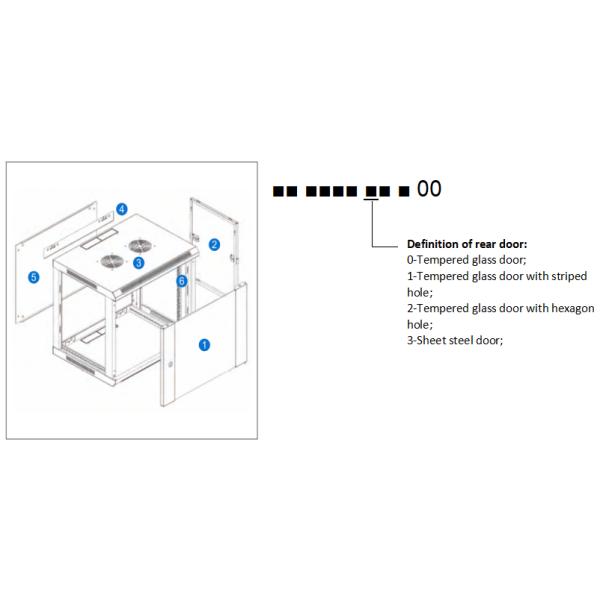

Definition Of Cord
SA Wall Mount Rack Cabinet , Date Center Accessories , Manufacturer from China - Zion Communiation
Main Part
S/N Specification Qty Material Surface Finish Remark
1 Front door 1 5MM toughed glass
door/SPCC t1.2		 Powder coated ·····
2 Side panel 2 SPCC t1.0 Powder coated ·····
3 Frame 1 SPCC t1.2 Powder coated ·····
4 Mounting profile 1 SPCC t1.2 Powder coated ·····
5 Back panel 1 SPCC t1.0 Powder coated ·····
6 19"rails 4 SPCC t1.2/1.5 Powder coated <15U Thinkness : 1.2mm
>=15U Thinkness:1.5mm
A M6 screw&nuts 10 Steel Color zinc 20pcs for over 12U
B Trox tooling 1 Steel Black ·····
Order Information:
Part Number. RU Width
(mm)		 Depth(D)
(mm)		 Height(H)
(mm)		 Packing dimension(mm)
ZCSA.6406.SASS 6 600 450 370 620*470*390
ZCSA.6606.SASS 600 620*620*390
ZCSA.6409.SASS 9 600 450 500 620*470*520
ZCSA.6609.SASS 600 620*620*520
ZCSA.6412.SASS 12 600 450 635 620*470*650
ZCSA.6612.SASS 600 620*620*650
ZCSA.6415.SASS 15 600 450 770 620*470*790
ZCSA.6615.SASS 600 620*620*790
ZCSA.6418.SASS 18 600 450 900 620*470*920
ZCSA.6618.SASS 600 620*620*920
ZCSA.6422.SASS 22 600 450 1080 620*470*1100
ZCSA.6622.SASS 600 620*620*1100
