Zion Communication Cat3 6P2C RJ11 Connector Plug Accessories
Zion Communication Cat3 6P2C RJ11 Connector Plug Accessories
Specifications
Brand Name :
Zion communication OR OEM
Model Number :
Data Center Equipment
Certification :
ISO, CE, RoHS, UL
Place of Origin :
CHINA
MOQ :
1,000 PCS
Payment Terms :
T/T, L/C
Supply Ability :
30,000 PCS / Month
Delivery Time :
Normally 10 workingdays
Packaging Details :
1 PC/Plastic Bag, PCS/Carton
Model :
Modul Plug / Connectors
Bnad :
Zion Communication
Cords :
7024001
Categories :
Cat3 Plug
Description

Cat3 6P2C RJ11 Connector , Plug Accessories , From China Manufacturer - Zion Communiation

More detail please visit:

https://www.zion-communication.com/Copper-System-Equipment.html

7024001 | ZC-MP3-62UR
Modular Plug , 6P/2C, CAT3,unshielded, round,
6-position, crystal head,100/bag

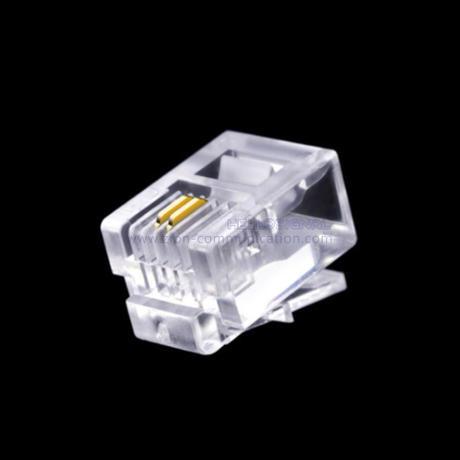

Physical photo
Zion Communication Cat3 6P2C RJ11 Connector Plug Accessories

Dimensional Structure
Zion Communication Cat3 6P2C RJ11 Connector Plug Accessories

Electrical Specifications
ANSI/TIA Category 5
Current Rating,maximum 0.75 A
Insulation Resistance,minimum 500 mOhm
Safety Voltage Rating 150 Vac
Pass fluke test Compliant
General Specifications
Cable Type Round,unshielded
Interface RJ11
Application
Operating Temperature -40℃ to +85℃
Relative Humidity Up to 93%, non-condensing
Package Quantity 100
Packaging Type Bag | Box | Carton
Positions/loaded Contacts 6P/2C
Mechanical Specifications
Conductor Gauge Solid/Stranded 26-24 AWG
Contact Base Material Phosphor bronze
Contact Plating Material Gold
Contact Plating Thickness 50μ OR 30μ | 6μ
Material Type PC = Polycarbonate
Plug Insertion Life,minimum 750 times
Plug Shield Base Material Copper Alloy
Plug Shield Plating Material Nickel
Regulatory Compliance/Certifications
RoHS 2011/65/EU Compliant
Order Informations
Label Can be customized
Delivery time Normally 15 working days
Brand Hellosignal ®
OEM Yes
Email info@zion-communication.com
