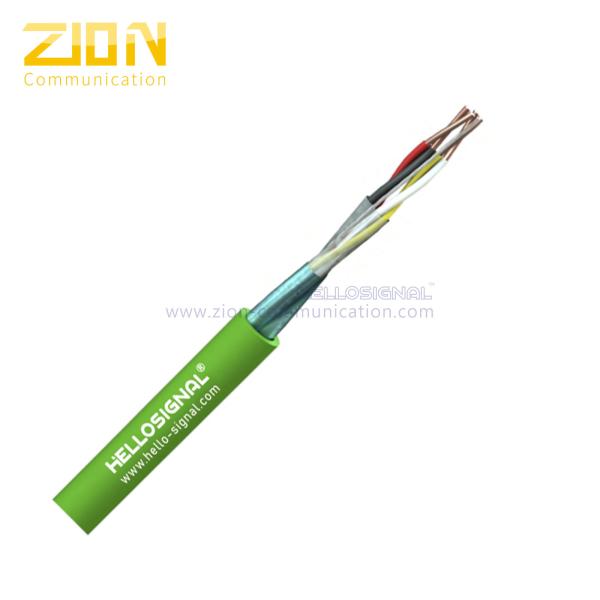

2 Pair 0.8mm Bare Copper KNX Control Cable with Low Smoke Halogen Free Sheath for Lighting and Security Systems
2 Pair 0.8mm Bare Copper KNX Control Cable with Low Smoke Halogen Free Sheath for Lighting and Security Systems
2 Pair 0.8mm Bare Copper KNX Control Cable with Low Smoke Halogen Free Sheath for Lighting and Security Systems
2 Pair 0.8mm Bare Copper KNX Control Cable with Low Smoke Halogen Free Sheath for Lighting and Security Systems
Specifications
Brand Name :
Zion communication OR OEM
Model Number :
Flexible Control Cable
Certification :
CE, RoHS, VDE, UL
Place of Origin :
China
MOQ :
10 KM
Payment Terms :
T/T,L/C
Supply Ability :
1000KM / Month
Delivery Time :
25 working days
Packaging Details :
500FT/PULL BOX, 1000FT/Wooden Spool,Pallet
Conductor :
Bare Copper,(1/0.8mm)
Insulation :
Polyethylene (PE)
Fillers :
Cotton Thread
Overall Tape :
Polyester
Drain Wire :
Tinned Copper (7/0.16mm)
Overall Screen :
Overall Aluminium Foil (100% Coverage)
Sheath Material :
Low Smoke Halogen Free (LSHF)
Description

POWER & CONTROL CABLE

https://www.zion-communication.com/Power-and-Control-Cables-products-catalog.html

2 Pair LSHF GreenTechnical Datasheet

(NO. KNX2P08)

2 Pair 0.8mm Bare Copper KNX Control Cable with Low Smoke Halogen Free Sheath for Lighting and Security Systems
Construction
Conductor Material : Bare Copper,(1/0.8mm)
Pairs Insulation Material : Polyethylene (PE)
Number of Pairs : 2
Fillers : Cotton Thread
Overall Tape : Polyester
Drain Wire : Tinned Copper (7/0.16mm)
Overall Screen : Overall Aluminium Foil (100% Coverage)
Sheath Material : Low Smoke Halogen Free (LSHF)
Sheath Colour : Green
Core Identification : Red & Black, Yellow & White

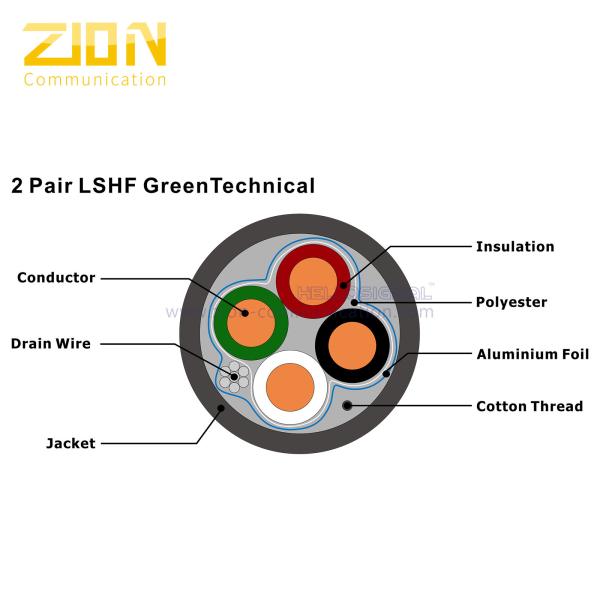

Cross Section

2 Pair 0.8mm Bare Copper KNX Control Cable with Low Smoke Halogen Free Sheath for Lighting and Security Systems
Application Support
Used for lighting control, blind control, air-conditioning, heating and security systems. KNX
Certified products will communicate with each other to ensure the smooth functioning and easy
expansion of systems and creates a comfortable, efficient & safe environments.
Electrical Characteristics
Nominal Conductor Resistance : < 38.5 Ω/km
Insulation Resistance : > 200MΩ.M
Voltage Rating : 450/750V Applies to CE marked FS C branded stock only
Test Voltage : 2.5kV for 5 minutes
Physical Characteristics
Overall Diameter : 6.8 ± 0.2mm
Min Bend Radius : 10 x OD
Temperature Rating : -10°C to +70°C
Weight : 62 kg/km
Standards
Flame Retardant : BS EN 60332-1-2
Low Smoke Generation : BS EN 61034-2
Halogen Gas Emission : BS EN 60754-1&2
RoHS3 Compliant : Yes
CE Compliant : LVD (2014/35/EU), CPR (305/2011)
CPR Classification : Eca (EN50575:2014+A1:2016)
Order Informations
Marking HELLOSIGNAL NO.KNX2P08 KNX CABLE LSZH 001-300M
Inner Package 300M/Wooden Spool
Outer Package Color Box, Pallet (or Per customer's request)
Delivery time Normally 25 days after received the deposit.
Brand HELLOSIGNAL® OR OEM
Online Service:
Skype kingtone3
Wechat king-tone
Whatsapp +86 18268009191
Email info@zion-communication.com
