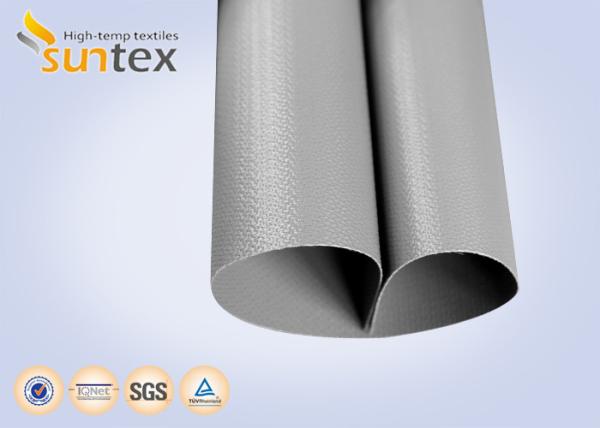

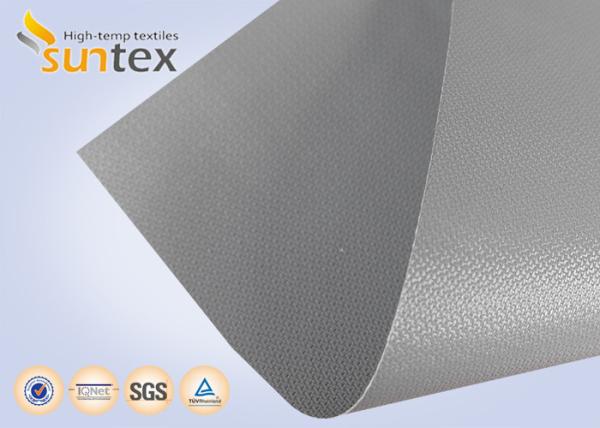

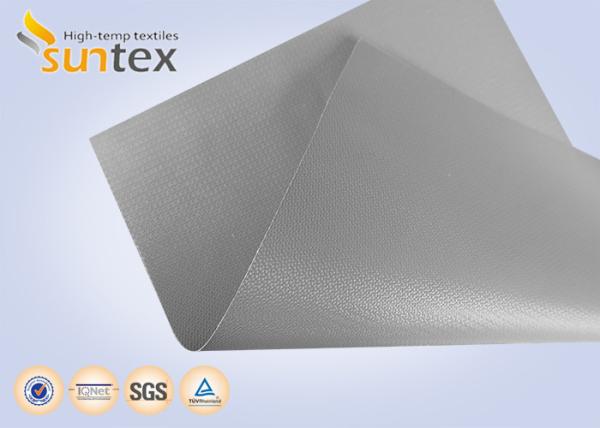

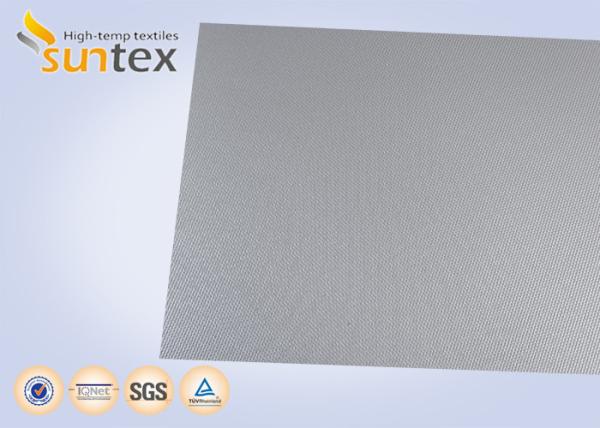

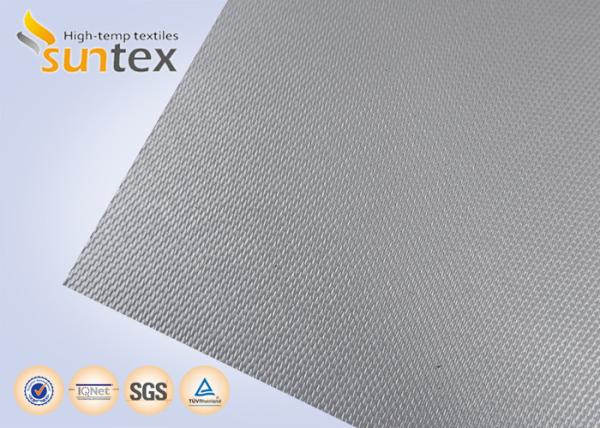

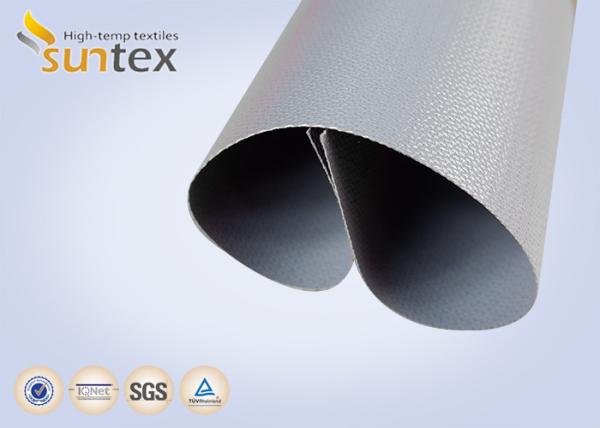

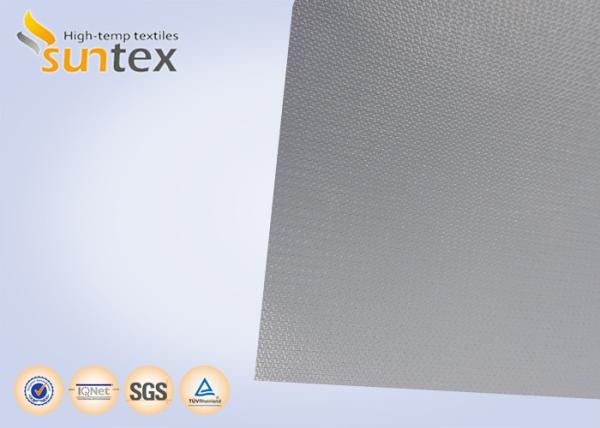

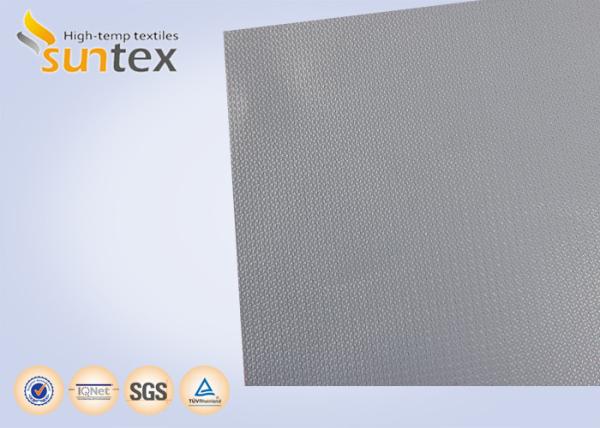

Hot sales abrasion resistance PTFE coated chemical resistant fabric waterproofing

Specifications

Brand Name :

SUNTEX

Model Number :

GF430P-PE133-8003

Place of Origin :

China

MOQ :

500 meter

Price :

FOB Shanghai 2.3-5.6 $/sqm

Payment Terms :

T/T, L/C, D/P, Western Union

Supply Ability :

500000 meter per month

Delivery Time :

5-15 working days

Packaging Details :

Each roll in the carton, several cartons on the pallets

Weight :

580 g/sqm

Thickness :

0.42 mm

Color :

Grey

Yarn Tape :

E-glass

Weave Tape :

Twill Weave

Width :

1m/1.3m/1.5m/1.52m/1.55m

Coating :

PTFE

Standing Temperature :

From -50℃ to 550℃

Description

PTFE coated fiberglass fabric is highly resistant to most industrial chemicals and can be used in applications to 3500C.

It also has excellent abrasion resistance, easy to clean, easy to be sewn and fabricated.

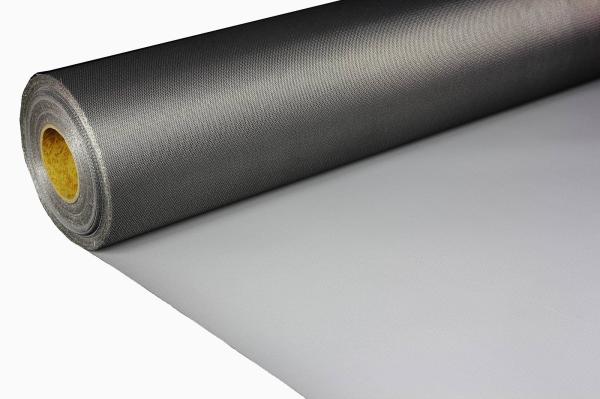

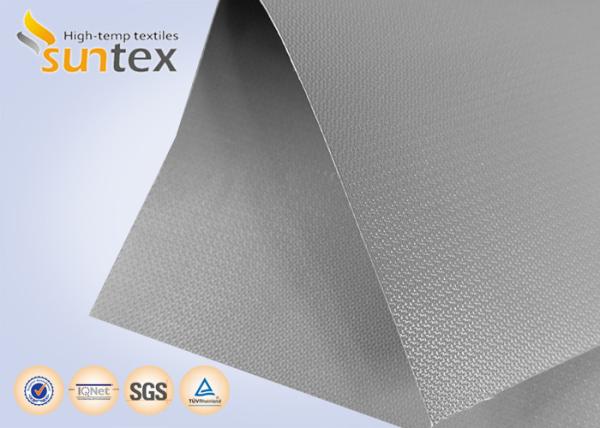

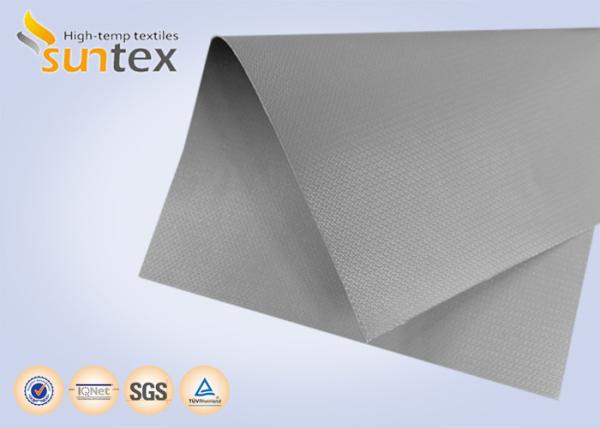

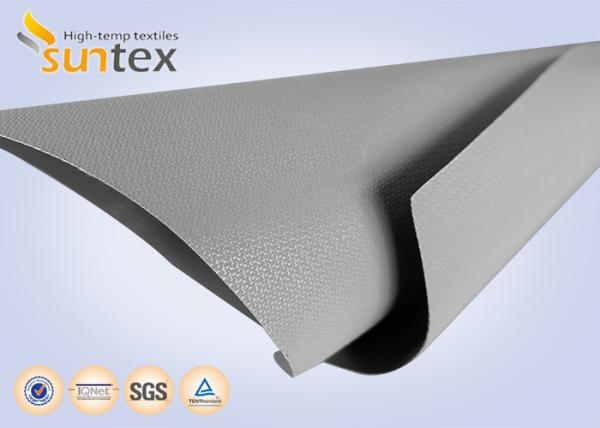

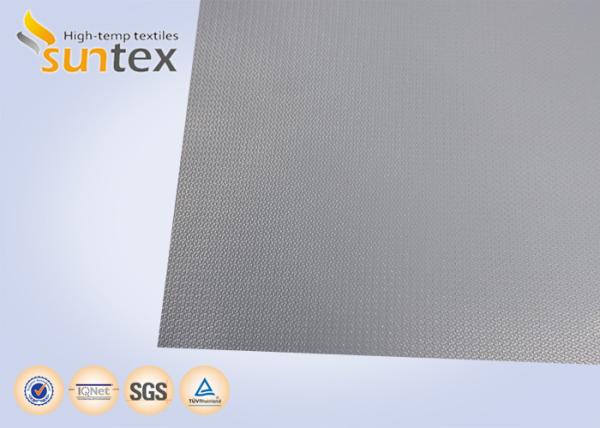

GF430P-PE133-8003 is a medium weight woven fiberglass fabric coated with a specially formulated PTFE solution on both sides.

GF430P-PE133-8003 has excellent chemical resistance. And this fabric is soft and easy to sew and clean.

It’s designed for the manufacturer of removable insulation covers, dust lagging and other types of fire control systems.

Main applications

-Thermal insulation jacket, mattress and pad

-Expansion joints and compensators

-Conveying belt

BASE FABRIC	Base fabric style No. GF430P
	(metric)	(English)	Test methods
Weave	4H Satin	Crowfoot
Yarn
Warp	EC9 136 1﹡0	ECG 37 1/0
Weft	EC9 136 1﹡0	ECG 37 1/0
Construction
Warp	18 ± 1 ends/cm	48 ± 3 ends/inch	ASTM D 3775-96
Weft	12.6 ± 1 picks/cm	32 ± 3 picks/inch	ASTM D 3775-96
Weight	430 ± 30 g/m²	12.6 ± 0.9 oz/yd²	ASTM D3776-96
Thickness	0.37 ± 0.06 mm	0.015 ± 0.002 inch	ASTM D1777-96

COATED FABRIC	Coating style No. PTFE133-8003
Coating	PTFE coated on one side
Weight	580 ± 20 g/m²	17 ± 0.6 oz/yd²	ASTM D3776-96
Thickness	0.43± 0.02 mm	0.016 ± 0.0007 inch	ASTM D1777-96
Color	Grey
Fire resistance	Flame retardant
Temp resistance	Glass fabric up to 550⁰C (1000⁰F) PTFE coating up to 330⁰C (620⁰F)

Hot sales abrasion resistance PTFE coated chemical resistant fabric waterproofing

Related Style

Hot sales abrasion resistance PTFE coated chemical resistant fabric waterproofing

1. Q: Are you a factory or trading company?

A: We are a factory.

2. Q:Why do you choose us?

A: Suntex management and staff have over 20 years of cumulative experience in industrial textiles.

3. Q:What is your delivery time?

A:Generally we will within 30 days of delivery to you

4. Q:Can you product the customized goods?

A:Surely, we can be customized according to your demanding.

5. Q:What kinds of payment you accept?

A:We accept T/T, L/C ,D/P or other.

6. Q:Do you have other production?

A:Certainly,we still have Rewettable fiberglass fabric, EPDM rubber coated fiberglass fabric, Fluoride coated fiberglass

fabric, Hypalon coated fiberglass fabric, PVC coated fiberglass fabric, PVC coated polyester fiberglass Carbonized fabric,

Aluminized aramid fabric . We are looking forward to your enquiry.
