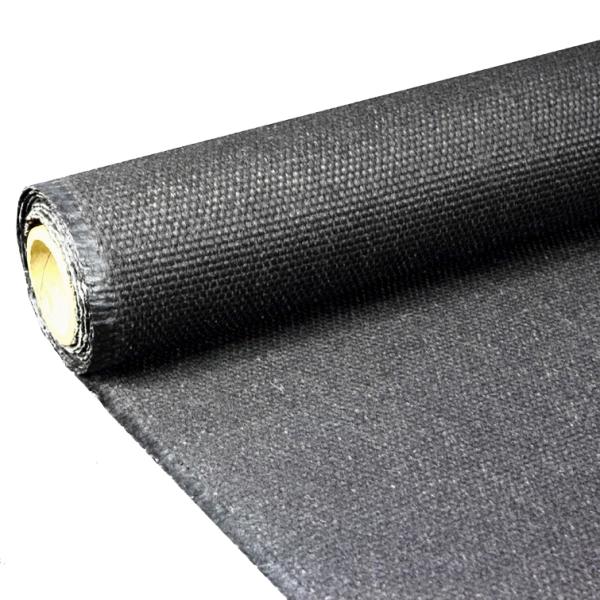

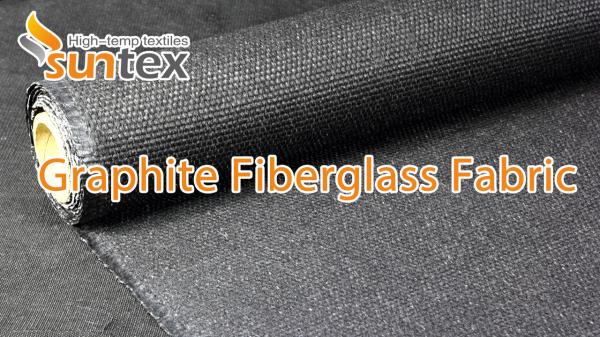

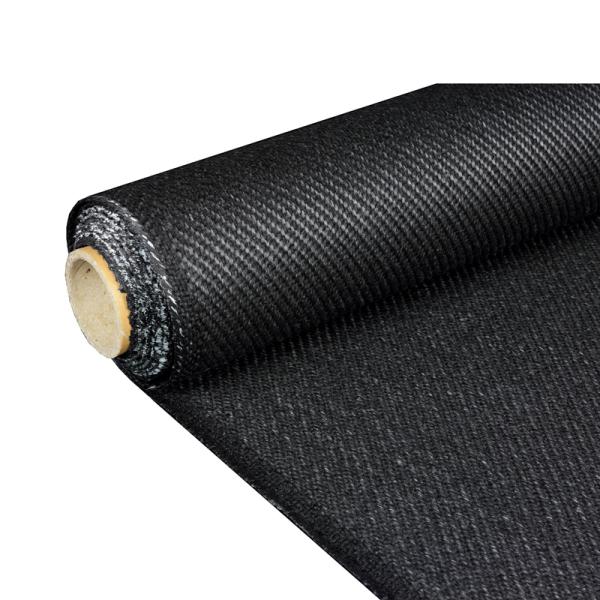

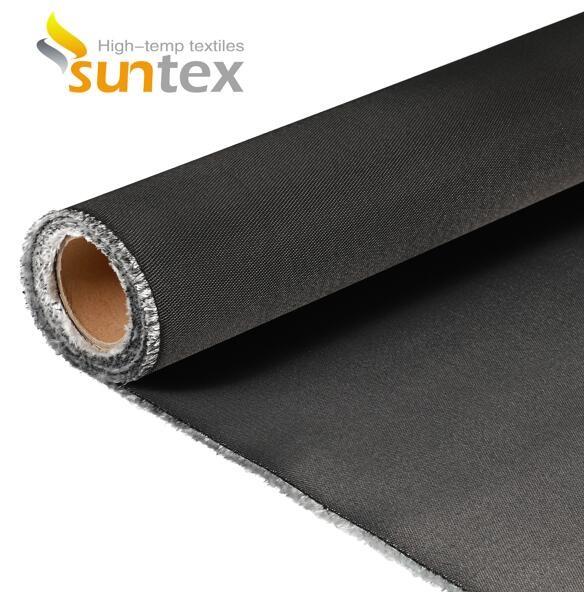

Flame Retardant Material High Temperature Fiberglass Fabric 1mm Graphite Coated Black Fiberglass Fabric
Flame Retardant Material High Temperature Fiberglass Fabric 1mm Graphite Coated Black Fiberglass Fabric
Flame Retardant Material High Temperature Fiberglass Fabric 1mm Graphite Coated Black Fiberglass Fabric
Flame Retardant Material High Temperature Fiberglass Fabric 1mm Graphite Coated Black Fiberglass Fabric
Flame Retardant Material High Temperature Fiberglass Fabric 1mm Graphite Coated Black Fiberglass Fabric
Flame Retardant Material High Temperature Fiberglass Fabric 1mm Graphite Coated Black Fiberglass Fabric
Flame Retardant Material High Temperature Fiberglass Fabric 1mm Graphite Coated Black Fiberglass Fabric
Flame Retardant Material High Temperature Fiberglass Fabric 1mm Graphite Coated Black Fiberglass Fabric
Flame Retardant Material High Temperature Fiberglass Fabric 1mm Graphite Coated Black Fiberglass Fabric
Flame Retardant Material High Temperature Fiberglass Fabric 1mm Graphite Coated Black Fiberglass Fabric
Specifications
Brand Name :
SUNTEX
Model Number :
TGF880-GP235-5001
Place of Origin :
CHINA
MOQ :
1000m
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100000m per month
Delivery Time :
30 days
Packaging Details :
50/100m per roll, each roll with a PE bay, packed in carton, 20-25 rolls per pallet
Nominal Weight :
1150g/sqm
Nominal Width :
1000mm 1520mm
Nominal Thickness :
1mm
Coating temperature resistance :
750℃ 1300℉
Basic fabric temperature resistance :
550℃ 1000℉
Treatment :
Graphite both sides
Description

Flame Retardant Material High Temperature Fiberglass Fabric 1mm Graphite Coated Black Fiberglass Fabric

Introduce

Graphite coating glassfiber fabric can bear high temperature to 750℃, and coting itself enhance the strength of fabric, so it's very suitable for heavy duty welding blanket and fire doors. TGF1000S-GP235-5015 can prove you from threat of fire under any environment.

Advantage

1. Excellent fire and abrasion resistance property and good performance of tensile strength.

2. Easy to be applied, sewn and fabricated.

3. Thickness, unit weight, pattern, all can be customized base on your use method.

Data

Nominal weight 1150g/sqm
Nominal Thickness 1.4 mm
Nominal width 1000mm 1520mm
Treatment Graphite
Color of coating Black
Fire resistance Excellence
Temperature resistance Basic fabric 550 ℃, Graphite coating 750 ℃.
Fiberglass E-Glass Texturized Woven Fabric

Applications

Thick graphite cloth can use in wide range, main includs:

For fire control system: Smoke door, fire sleeve

For protection & heat insulation: Welding blanket, removable thermal insulation kit, insulation mat.

Guarantees

All Suntex’s customers are covering by the warranty:

  • Replacement. – In case of the quality of delivery was proved unsatisfied by our customer, suntex will send out a new batch to replace without delaying.
  • Timely delivery. – Suntex usually keeps sufficient stocks for the standard items. It assures us to deliver the goods to the customers worldwide in time.
  • Cost-effective (low price). – Suntex understands the customers’ requirements of continually lowering the purchase prices. All guys at Suntex keep in increasing work efficiency to reducing the production costs to meet the customers’ requirements of costs reduction.
  • Environmental protection & human health care. – Suntex cares the human health and environmental protection. All materials used in the process of our production are harmless to the human and environment. (photos: ROHS, ASBESTOS FREE)

Related Products

Style No. Weight Thickness Color Coating
g/m2 oz/yd2 mm inch
TGF880-GP235-5001 980 28.8 1.0 0.039 Black 2 sides
TGF1000-GP235-5002 1100 32.4 1.4 0.055 Black 2 sides
TGF1250-GP235-5003 1400 41.2 1.6 0.063 Black 2 sides
TGF2050-GP245-5004 2250 66 2.5 0.098 Black 2 sides
TGF1000S-GP235-5015 1180 35 1.5 0.059 Black 2 sides
TGF2550-GP225-5020 2650 78 2.6 0.102 Black 2 sides
